Generator DDS semnal sinus, triunghi, dreptunghi afisaj LCD sigilat !
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Generator de semnal nou sigilat !
La acest produs se poate vine separat de produs carcasa la pretul de 33 lei bucata !
La acest produs se poate vinde separat de produs alimentator la pretul de 29 lei bucata !
Caracteristici:
Description:

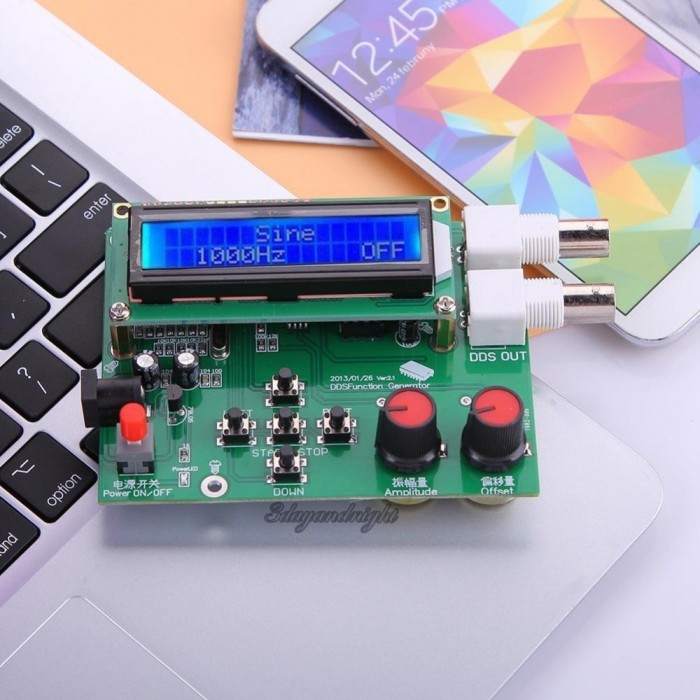

1Hz-65534Hz DDS Function Signal
Generator Module Sine Sawtooth Triangle Wave Kit
Descriptions:
Function (waveform) signal generator
can produce some specific periodic time function waveform (sine,
square, triangle, sawtooth, etc.) signal, the frequency range is
1Hz-65534Hz.
Features:
Small size, powered by DC 7V-9V,
easy and portable for use.
DDS frequency range: 1Hz-65534Hz,
high-speed frequency (HS) output up to 8MHz.
DDS signal amplitude of the offset
amount can be adjusted separately by two potentiometers.
DDS signals: sine wave, square wave,
sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise
wave.
LCD display for clear reading,
intuitive 5 buttons for convenient operation.
The power automatically restore the
last used configuration.
Key Functions:
UP output waveform
select.
DOWN output waveform
select.
LEFT output frequency -.
RIGHT output frequency +.
STOP / START the output stop /
start.
"UP" key waveforms order:
ECG = electrocardiogram wave (in the
OFF state, the "left" and "right" keys to set the output
frequency.
Middle button start, all of the
following waveform set).
Rev Sawtooth = reverse
sawtooth.
SawTooth = sawtooth.
Triangle = triangle wave.
Square = square wave.
Specifications:
Display: 1602 LCD
Operating Voltage: DC
7V-9V
DDS Frequency Range:
1Hz-65534Hz
Frequency(HS) Output: up to
8MHz
Section into the Value: 1, 10 , 100,
1000, 10000 Hz
Offset: 0.5pp-5Vpp
Amplitude Amount:
0.5Vpp-14Vpp
PCB Board Size: approx. 100 * 80mm /
3.94 * 3.15in
Product Weight: approx. 100g /
3.53oz
Livrarea se poate face doar in 2 feluri:
1) personal la
Metrou Nicolae Grigorescu in Bucuresti
2) cu livrare prin
posta romana cu plata in avans in cont bancar a contravalorii
produs + 15lei ( taxe postale de expediere posta romana )….dupa
confirmarea platii va voi trimite nr AWB de urmarire colet pe posta
romana !
Multumesc de intelegere !
