Description:

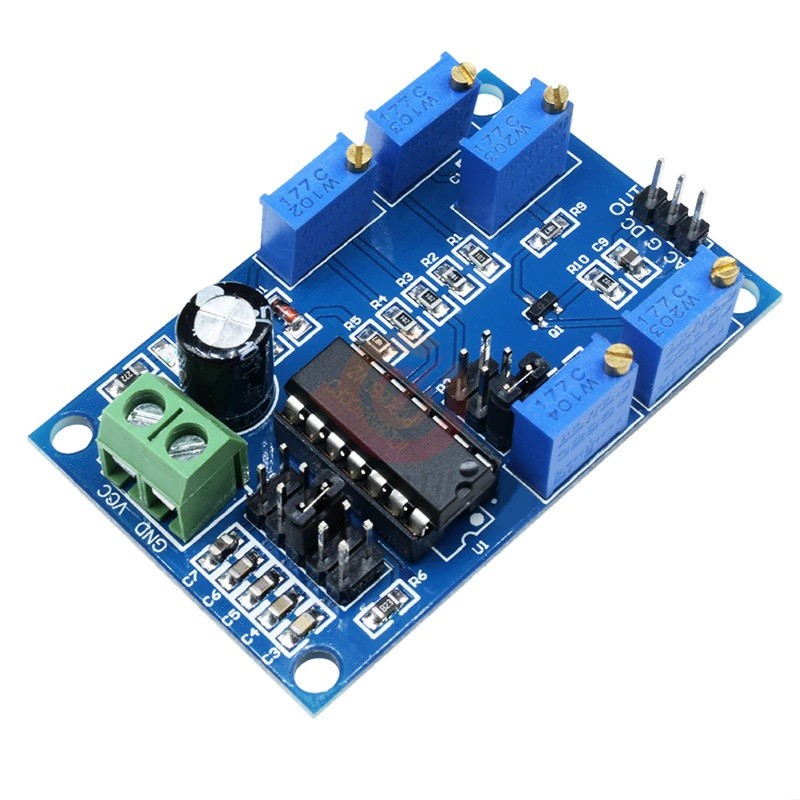

The LC ICL8038 module is designed for common
frequency ranges. It is adjustable from 5 gears and generates
low-distortion triangular waves, square and sine waves from 10Hz to
450KHz. Sine wave can be used for test signals, drive signals,
carrier frequency signals, etc; square wave can be used for
switching signals, trigger signals, etc; triangular wave is mainly
used for scanning signals.
Features:
Working voltage: 12V ~ 15V
Output: Triangular wave, Square wave and sine
wave.
Frequency range: 10HZ ~
450kHz
Low distortion sine wave: 1%
Duty cycle range: 2% to 98%
Low temperature drift: 50ppm /
℃
Triangular wave output linearity:
0.1%
Working temperature: 0 ~ 70
℃
Board size: 54.5*37.8mm
Functions:
VCC,GND: working voltage
AC: with DC bias output
G: ground
DC: pure signal output
R11: Frequency adjustment
R12: Square wave duty cycle
adjustment
R13: Sine wave linear
adjustment
R14: Amplitude adjustment
R15: Square wave linear
adjustment
Jumper P2: select different
waveforms(triangular, square or sine waves)
Jumper P3: select different frequency
ranges
10Hz-450Hz
90Hz-1.5KHz
940Hz-15KHz
6KHz-120KHz
20KHz-450KHz
Package Include:
1 x ICL8038 Low/Medium Frequency Signal Source
Waveform Sine Signal Generator Module
