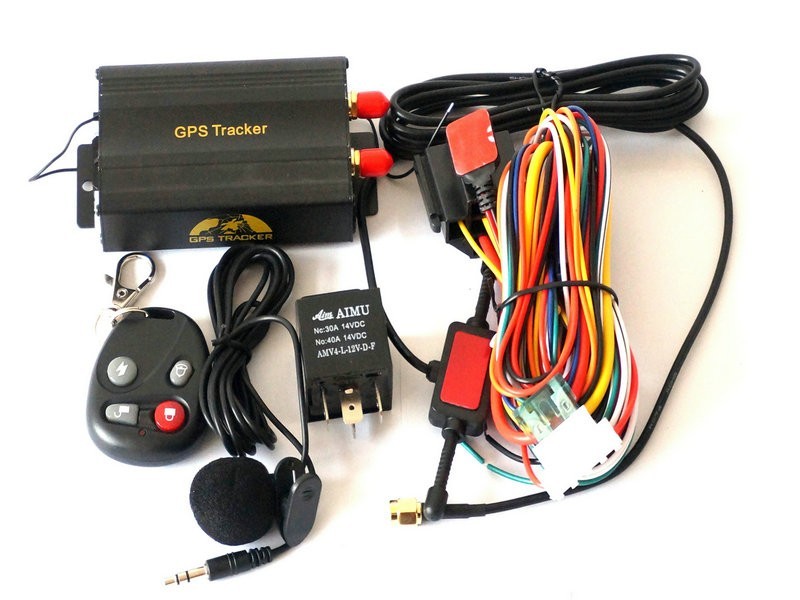

GPS Tracker 103B

Predarea se face doar la stadionul olimpia de L - V intre orele 9.30 - 20

Attention:

Web & APP Tracking software support LIFE TIME FREE.

Overview: gps traking

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet. rastreador veicular


Applications:  car gps tracker

Used widely for vehicle and other car tracking.gps tracker car

Functions: rastreador


1.Single Locating:If you call it from authorized phone number, it will hang up and report a real-time location

2.Auto track continuously.       rastreamento de veículos
* Track with limited times upon time interval
* Track with unlimited times upon time interval
* Smart track upon time and distance interval

3.Turning points update automatically. The tracker will update the positions automatically to web platform once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.  gps tracker car

4.GPS drift suppression.This function is deactivated by default. The GPS data will stop updating if vehicle is not driving (ACC is OFF) and latitude and longitude always keep same, and GPS data updates automatically when vehicle is moving.

5.Exact street address.  You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.

6.Location based service (LBS) / Cell-ID Locating.If the tracker cannot establish a solid GPS Fix, it will calculate its location using Cell-ID GSM locating, Location reports will include the GPS coordinates of the last known positions as well as a LAC code, Entering the  LAC code to the “Manual Track” menu of web tracking platform will enable you to see the tracker’s current location.

7.Monitor. Remotely Voice Monitor

8.Data logging,Data Load.When the tracker device lost GSM signals or fall offline from GPRS, tracker will log the tracking position and alerts automatically in the SD card on the basis of the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or web platform (server), but the logged tracking data should be loaded to the web platform via SMS command.

9.SIM card Balance Inquiry.shock sensor car alarm

10.Cut off the Oil and Power System. quickstop+password

11.Arm/Disarm/Silent  Modes:

    Arm : User must stop the engine, (that is ACC is lower voltage).Sending SMS “arm+password” when close the door and left. You will set up arm status fail if the engine is turned on (the ACC is high voltage), it will reply “set up fail! pls turn off ACC"

     Alarms under Arm State:
    *Door open alarm:The unit will send SMS “Door alarm+lat/long” to the authorized number at interval of 3 minutes when the door of the car opens in arm status. Siren will be sound for 20 seconds, and repeat sound at interval of 20 seconds minutes if the door is always open.
    *ACC Alarm
    *Built in Acceleration Sensor Alarm:The tracker is built in three axis acceleration sensor, the tracker can detect it in arm state when the vehicle move, tilt or shock. The alarm way is same as the external shock sensor alarm.
    *External Shock Sensor alarm(Optional):The unit will send only one alarm SMS “Sensor alarm+lat/long” to the authorized number in 3 minutes when the sensor is triggered in arm status.
    *Alarm without GSM network service:When the car is in the place without GSM network service, siren will be sound under non-silent mode if alarm is triggered (door, sensor, ACC), but no SMS alarm will send to authorized number.

Specificatii :
Rețea : GSM / GPRS
Band : 850/900/1800/1900MHz
Modul GSM / GPRS : SIM900B
Modulul GPS : cip SIRF3
Sensibilitate GPS : - 159dBm
Precizie GPS : 5m
GPS ora de start: 45s stare rece ; 35s stare cald ; 1s stare fierbinte
Tensiune de sistemul de putere auto : 12V ~ 24V
Baterie de rezervă : reîncărcabilă și schimbătoare 3.7V 800mAh baterie Li - ion
Temperatura de depozitare : -40 ° C până la +85 ° C ( - 40F ~ 185F )
Temperatura de operare : -20 ° C până la +65 ° C ( - 4F ~ 149F )
Umiditate : 5 % ~ 95 % fără condensare
Dimensiune produs: 10.5 * 5.5 * 2.5 cm ( 4.1 * 2.2 * 1.0 In )
Greutate articol : 112g/4oz
Pachetul dimensiune : 19,5 * 12,8 * 5.8cm ( 7.7 * 5 * 2,3 inch )
Greutate pachet : 617g/1.4Lbs

Postul Include :
