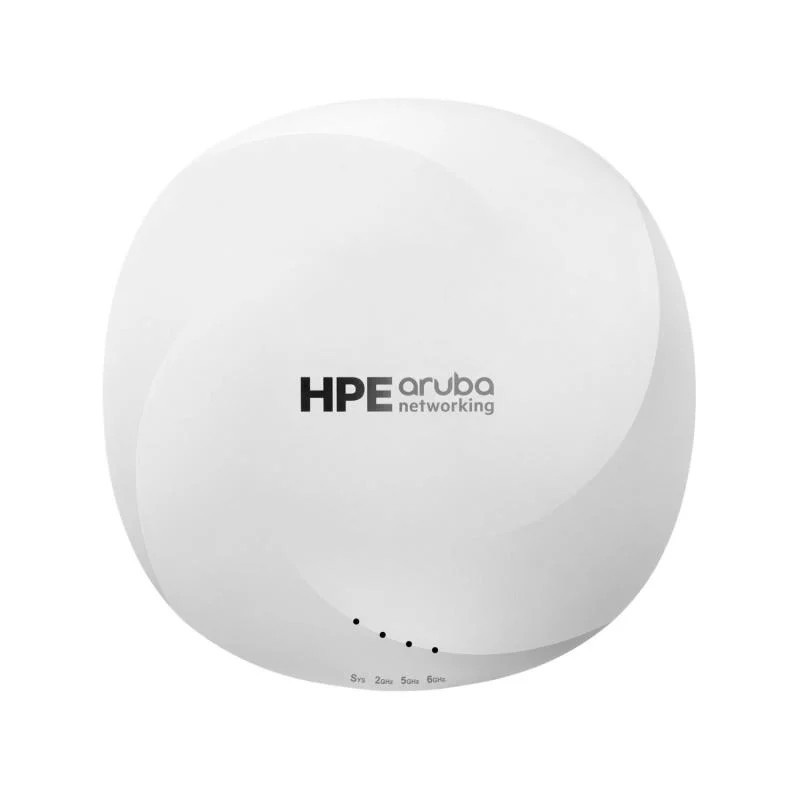

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2x2 Wi-Fi

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Power consumption Maximum (worst-case) power consumption: DC powered:12.5W/18.2W POE powered: 14.7W/20.9W
• Product dimensions (imperial) 2 x 7.9 x 7.2 in
• Connectivity, standard Wi-Fi 6E (802.11ax)
• Certifications UL2043 plenum rating; Bluetooth SIG; Ethernet Alliance (PoE, PD device, Class 4); Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac, Wi-Fi CERTIFIED 6E (ax, 6 GHz), WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband, Wi-Fi CERTIFIED Location™
• Regulatory AP-615 (all models): APIN0615 FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2
• Product dimensions (metric) 5.1 x 20.1 x 18.3 x cm
• Weight 0.72 kg
• Weight 1.59 lb
• Ports E0: Ethernet wired network ports (RJ-45) DC power interface: 12 Vdc (nominal, +/- 5%) USB 2.0 host interface (Type A connector) Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio Visual indicators (four multi-color LEDs) Reset button: factory reset, LED mode control (normal/off) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
• Wi-Fi antenna AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8 dBi in 2.4 GHz, 4.5 dBi in 5 GHz and 4.5 dBi in 6 GHz.
• Radio coverage Indoor, dual-radio/tri-band 2.4 GHz, 5 GHz and 6 GHz (dual concurrent) 802.11ax 2x2 MIMO
• Warranty Limited lifetime warranty. See the warranty duration guide.
• Mounting A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 610 Series ordering guide for details.
• Input voltage The AP supports direct DC power and Power over Ethernet (PoE) on port E0

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (HTML)
• QuickSpecs (PDF)

Overview

HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and IoT devices, and expanded use of the cloud. The compact and cost-effective 610 Series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-AP deployment. Built-in GPS receivers and fine time measurements enable the 610 Series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 Series includes a limited lifetime warranty.

What's new

• Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate.
• Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications.
• Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments.
• Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1].
• Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements.
• Offered as optional eco-friendly 10-pack.

Features

Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.

It offers low power (802.3af Class 3) and compact form factor for ease of deployment.

Extends capabilities of Wi-Fi 6 (802.11ax)

Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to customize user experience and energy use.

HPE Aruba Networking 610 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.

Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and Target Wait Time for better multi-user performance and improved efficiency.

Indoor location-aware access points

HPE Aruba Networking 610 Series Campus Access Points include built-in GPS receivers and fine time measurement to automatically and accurately locate themselves.

The access point supports Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.

More Capacity and Wider Channels with Wi-Fi 6E

HPE Aruba Networking 610 Series Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds.

With up to seven 160 MHz channels, the APs increase performance for low-latency, bandwidth-hungry applications.

The Designed for Low Power Indoor environments (LPI).

Cost-effective and Compact 6 GHz Coverage

HPE Aruba Networking 610 Series Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point.

Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.

Client and RF optimization to match clients with the best available access point and reduce coverage gaps.

Media

Aruba 1-2-3: What is the future of Wi-Fi?

After nearly 20 years of being limited to the 2.4 and 5 GHz bands, Wi-Fi 6E introduces the 6 GHz band which gives us access to much more bandwidth to support a wide range of applications and devices.

Compatible products

• Aruba 3Y FC NBD Exch AP-615 Campus SVC
• HPE Aruba Networking AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
• HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit
• HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit
• HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit
• HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit
• HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector
• HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector
• HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector
• AP-MOD-SERU CONSOLE ADAPTER MODULE
• HPE Aruba Networking AP-MNT-MP10-U
• HPE ANW AP-MNT-U CAMPUS TYPE U BRKT KIT

Documents

• HPE Aruba Networking 610 Series Campus Access Points
• Wi-Fi 6 vs Wi-Fi 6E Infographic
• HPE Aruba Networking 610 Series Campus Access Points
• Interconnected retail on a massive scale – The Home Depot
• Interconnected retail on a massive scale – The Home Depot
• HPE Aruba Networking 610 Series Campus Access Points

[1] By default (with IPM disabled) the AP-615 will disable the USB port (only) when on Class 3 PoE. The IPM feature can be used to avoid this restriction.
