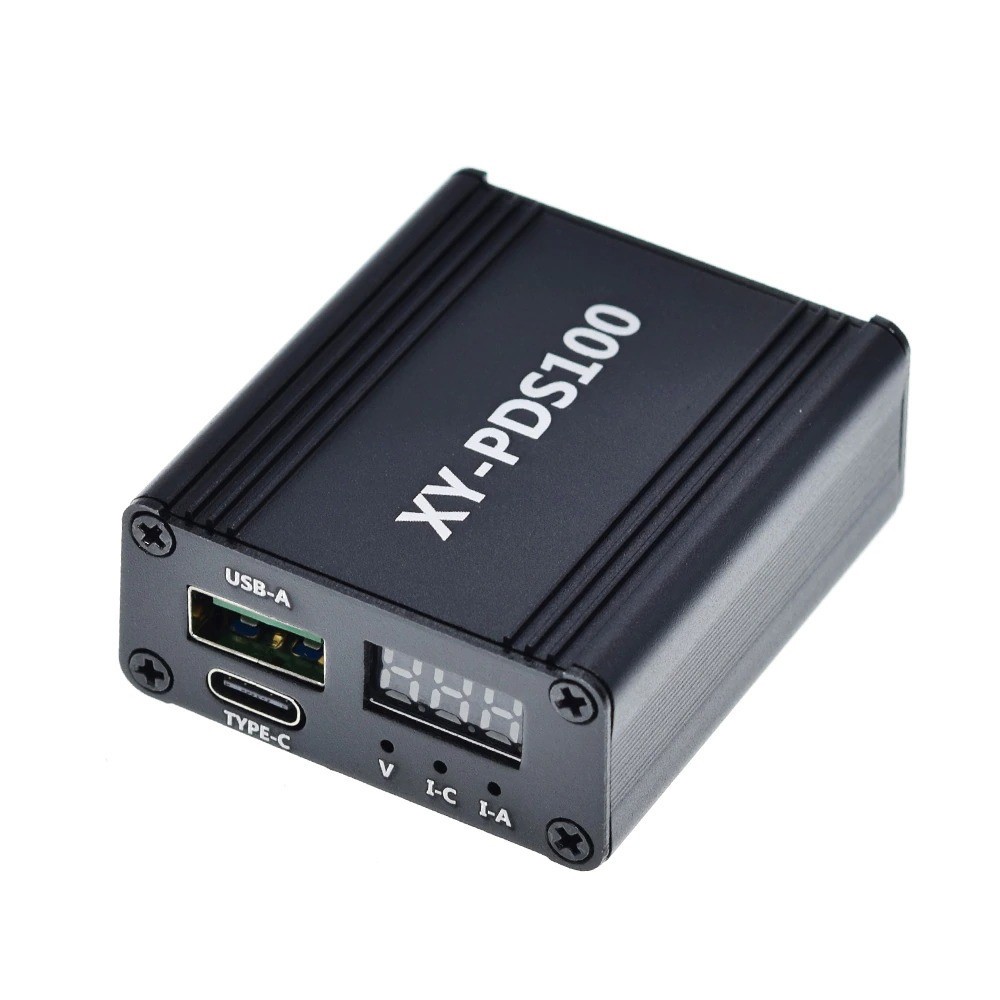

Incarcator 100W Type-C Samsung Apple DC-DC, IN: 12-28V, OUT: 5-20V

Produsul este nou!

Specificații în limba engleză:

High compatibility: support the following fast charging protocols
PD2.0 PD3.0 PPS
Qualcomm QC4+/QC3.0
Huawei SCP/FCP
OPPO VOOC
OnePlus DASH
Apple 2.4A
Samsung AFC
VIVO 9V2A Twin engine
MediaTek PE2.0

NOTE
1. The maximum voltage of this product is 32 volts, it is recommended to use within
28 volts! This module is a pure step-down module without boost function. If you want
to use 20V output, you must use a DC power supply of more than 21V; the product
low voltage can reach 6V, but most of the fast charge will not be activated at 6 ;

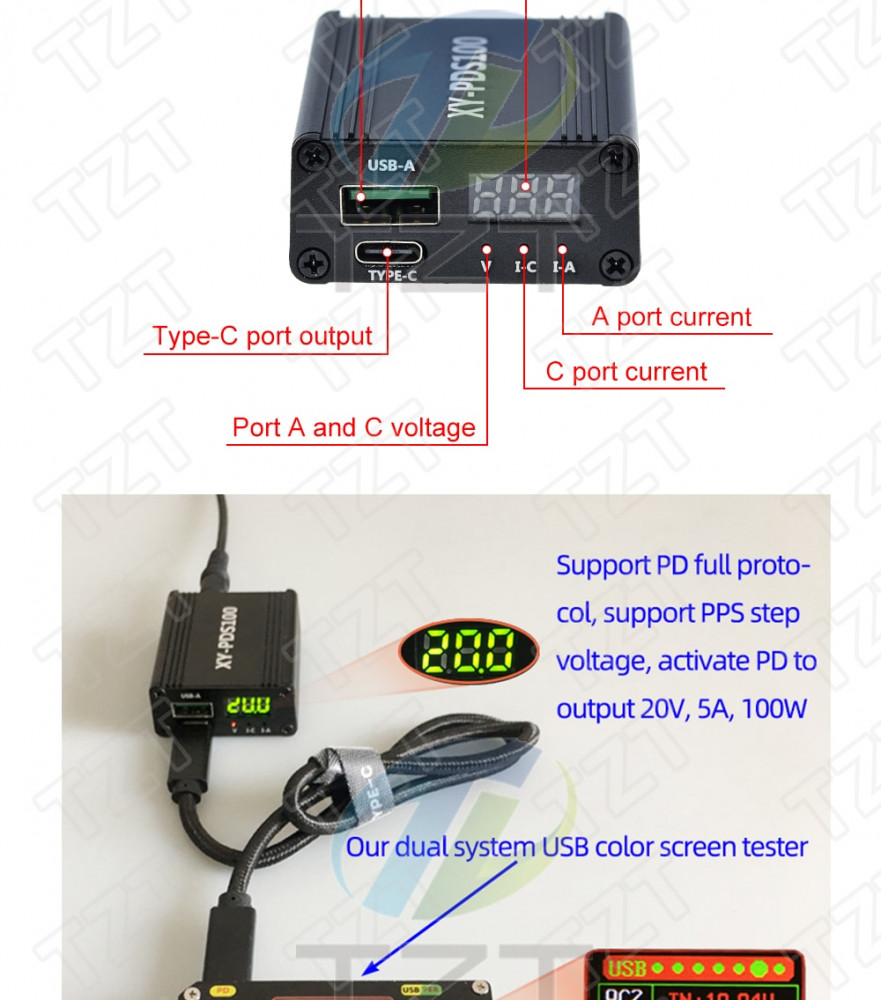

100W output power Can be reached at PD output (PD20V, 5A)
2. For low voltage and high current fast charging, please use the original data cable.
If you want to measure the charging voltage and current, you must use a low internal
resistance USB meter! Otherwise it will affect the charging current!
3. USB port is required for OPPO and OnePlus mobile phone charging!
QC4 +/QC4.0/ PD3.0 and other protocols have to use TYPE_C port!
4. When the USB port and TYPE_C port are plugged in at the same time, both ports
are 5V output!

Multi-brand mobile phone charging test
USB port
1. Charge Huawei Mate20 (56% battery): Turn on SCP fast charging mode
Voltage 4.89V, Current 4.59A
2 Charge Huawei P20 Pro (12% battery): Turn on SCP fast charging mode
Voltage 5.03V, Current 4.25A
3. Charge Honor V20 (43% battery): Turn on SCP fast charging mode
Voltage 5.13V, Current 4.5A
4 Charge Mi 8 (18% battery): Turn on Qc3.0 fast charging mode
Voltage 6.44V, Current 2.79A
5. Charge OPPO R17 (43% battery): Turn on VOOC flash charging mode
Voltage 4.8V, Current 3.8A
6. Charge iPhone XS (5% battery): Turn on APPLE2.4A mode
Voltage 5.22V, Current 2.37A
7. Charge one plus 6T (15% battery): Turn on DASH flash charging mode
Voltage 4.7V, Current 3.8A

Type_C port
1. Charge iPhone XR (7% battery): Turn on PD
Voltage 9.17V,
Current 1.91A
2. Charge iPhone X (7% battery): Turn on PD
Voltage 9.17V, Current 1.6A
3
Charge Huawei Mate20Pro (55% electricity): turn on PD
Voltage 9.20V, Current 1.58A
4. Charge Huawei P20 Pro (10% battery): turn on PD
Voltage 9.17V, Current 1.69A
5. Charge Honor V20 (40% battery): Turn on PD
Voltage 9.05V, Current 1.7A
6. Charge Xiaomi 8 (6% battery): turn on fast charging
Voltage 6.1V, Current 2.63A
