Indicator putere baterie pentru acumulator li-ion 5S - 21V (i.3230A)

Produsul este nou!

Specificații în limba engleză:

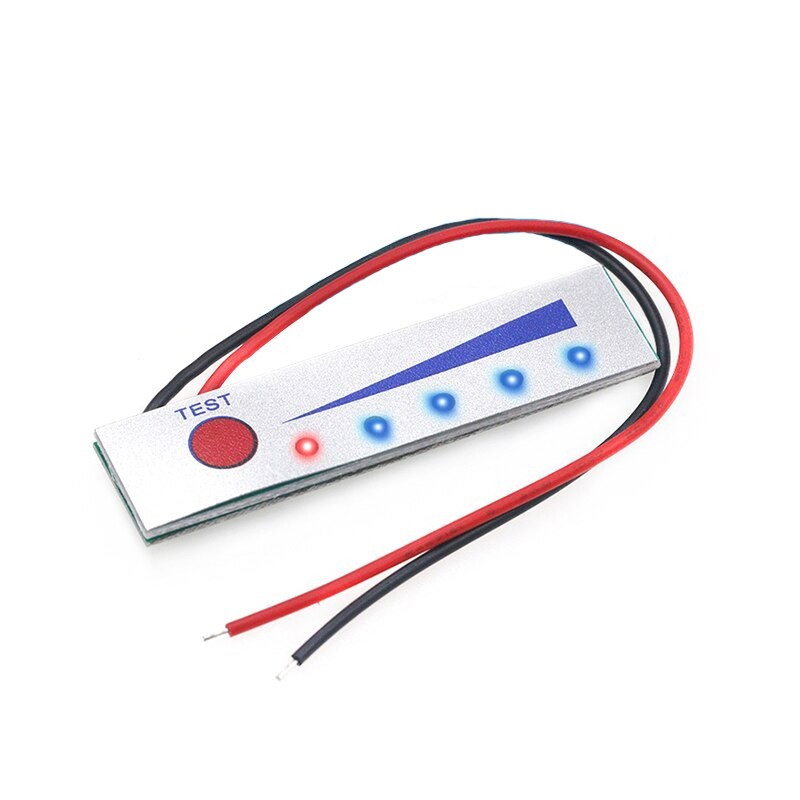

1. Thin power display, 5 LED indicators, the display is more intuitive and beautiful.

2. It can be used in a wider range, lithium batteries, lead-acid batteries, lithium iron phosphate electric vehicle batteries and electric equipment can be used

1. Connect the positive and negative terminals of the display board to the positive and negative ends of the battery under test, I ightly press the red button with your finger, and the IED light will light up to display the real-time battery power

2. Release your finger, the LED will go out after a delay of 3-1 0 seconds, and it wi 11 not consume electricity at all when it is static.

3. With reverse connection function, it will not burn even if the positive and negative connections are reversed, just adjust it

Lithium battery group display power parameters: (the following data is a reference value, there will be a 2°/o error range, do not shoot if high accuracy is required)

Reminder: 3.7V lithium battery uses 1 red power indicator, 4 green battery indicators (other voltage ranges a re 1 red power indicator, 4 b I ue battery indicators)

Note: N is the number of battery cells

The first power indicator is red

The battery voltage is greater than N x 3.3V, the second blue Ii ght is on

The battery voltage is greater than N x 3.5V, the third blue light is on

The battery voltage is greater than N x 3. 7V, the fourth blue I ight is on

The battery voltage is greater than N x 3.9V, the fifth blue light is on 12V lead-acid voltage range: (4 strings of lithium iron phosphate batteries can be used)

The battery voltage is greater than 11 . OV, the second blue I ight is on

The battery voltage is greater than 11 .3V, and the third blue light is on

The battery voltage is greater than 11 . 6V, the fourth blue Ii ght is on

The battery voltage is greater than 12.9V, the fifth blue light is on 24V lead-acid voltage range: (8 strings of lithium iron phosphate batteries can be used)

The battery voltage is greater than 22.5V, the second blue Ii ght

The battery voltage is greater than 24 V, the third blue light is on

The battery voltage is greater than 25.2V, the fourth blue Ii ght is on

The battery voltage is greater than 26.4V, and the fifth blue light is on 36V lead-acid voltage range: (1 2 strings of I ithi um iron phosphate batteries can be used)

The battery voltage is greater than 33.5V, the second blue Ii ght

The battery voltage is greater than 35.2V, and the third blue light is on

The battery voltage is greater than 37V, the fourth blue Ii ght is on

The battery voltage is greater than 38. 7V, the fifth blue light

Pachetul conține:
• 1 bucată x indicator putere baterie pentru acumulator li-ion 5S - 21V (cod produs: i.3230A)
