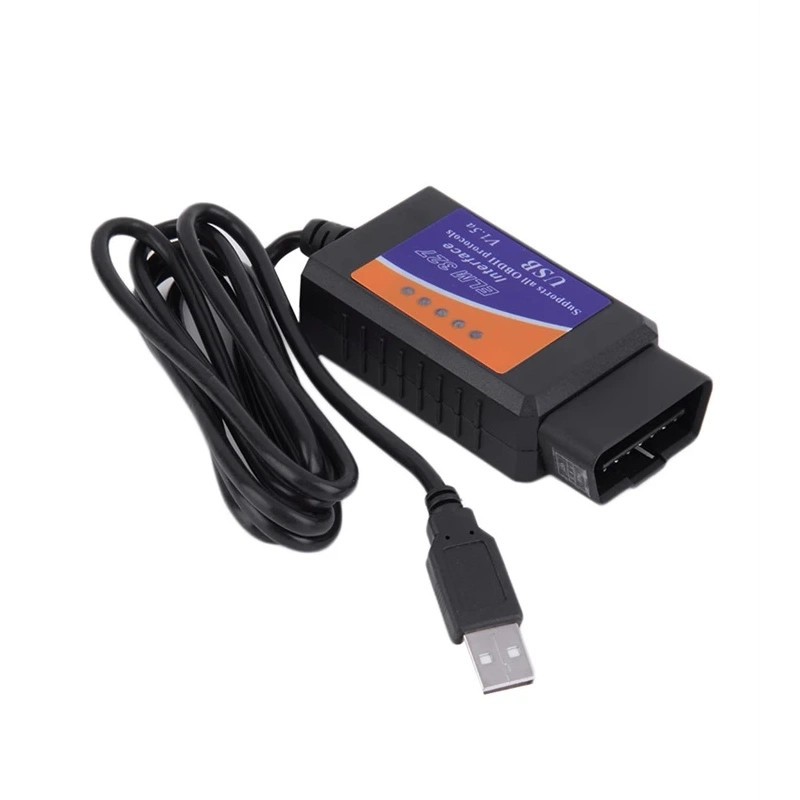

Interfata diagnoza USB Elm327 OBDII OBD2 V1.5 pentru calculator (ELM364)

Produsul este nou!

Specificații:

• Functioneaza cu toate masinile compatibile OBD II
• Suporta ISO 9141, KWP2000,SAE J1850 si CAN BUS.
•  Prin standardele specifice OBD2 se acceseaza doar calculatorul de motor, nu si alte calculatoare (airbag,abs, etc) !

Functii:

1. Citire coduri eroare
2. Afiseaza intrepretarea codurilor de eroare
3. Peste 3000 coduri generice in baza de date
4. Sterge codurile de eroare-stinge becul galben
5. Engine Check Light Off
6. Afiseaza parametrii senzorilor
7. Rot/min
8. Temperatura lichidului de racire
9. Starea sistemului de alimentare
10. Viteza
11. Cantitatea injectata
12. Avansul
13. MAF
14. Tensiunile sondelor lambda
15. Presiunea combustibilului
16. Multi alti parametri

Specificații în limba engleză:

ELM327 USB V1.5 interface Description:

ELM327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number ofcompatible programs. The processor is an ELM327.The output protocol (connection to laptop) is USB.

Processor:ELM327.

OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very user-friendly, and easy to learn. It is also very easy to install:

simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

The software supports two platforms - DOS and Windows.

ELM327 Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM;Calculated Load Value;Coolant Temperature;Fuel System Status;Vehicle Speed;Short Term Fuel Trim;Long Term Fuel Trim;Intake Manifold Pressure;Timing Advance;Intake Air Temperature;Air Flow Rate;Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims;Fuel System status;Fuel Pressure;Many others..

Upcoming Function:

Data graphing and logging;Freeze Frame data;Continuous and Non-Continuous Oxygen Sensor test results.

ELM327 Specifications:

Output protocol:RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA

OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM

ELM327 Free software:

G-M Mode 22 Scan Tool by Terry

OBD Gauge for PalmOS and Pocket PC by Dana Peters

OBD Logger by Jonathan Senkerik

OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

OBD2 Scantool by Ivan Andrewjeski

OBDII for ELM322 by David Huffman

pyOBD by Donour Sizemore for MacOSX and Linux

RDDTC by Pete Calinski

Real Scan by Brent Harris

ScanTest for Pocket PC by Ivan Ganev aka a-ser

wOBD by WDT

Elm 327 Aavailable cars:

B-enz 2001/02/03 W203 C200K (ISO)

B-MW X5 2002 (ISO) C-hevrolet Aveo (ISO)

C-itroen C3 2004 (ISO)  Daihatsu YRV 2005 (ISO)

Daihatsu YRV Turbo 2006 (ISO)

F-iat Tipo 2002 (ISO)

F-ord New Focus 2006(CAN)

H-onda A-ccord 2006 JDM (ISO)

H-onda A-ccord Euro R 2004 JDM (ISO)

H-onda C-ity GD8 (ISO)

H-onda C-ivic ES 1.6A (ISO)

H-onda Integra Type R DC5 JDM (ISO)

H-onda Jazz 1.4M (ISO)

H-yundai Accent 2004 (ISO)

H-yundai Getz 1.3A 2004 (ISO)

H-yundai Getz 1.6M 2004 (ISO)

H-yundai Matrix 2004 (ISO)

H-yundai Santa Fe 2.4A (ISO)

H-yundai Sonata GLS (ISO)

H-yundai Sonata 2005 (ISo)

H-yundai Tuscani FX (ISO)

K-ia Carens 2005 (ISO)

K-ia Magentis 2005 (ISO)

K-ia Rio LS (ISO)

K-ia Sorento SUV 2005 (ISO)

L-exus es300 M-azda 2 (CAN)

M-azda 5 (CAN)

M-azda 6 (CAN)

M-azda Premacy 2001 (ISO)

M-azda RX8 (CAN)

M-itsubishi Colt 2003 (ISO)

M-itsubishi Colt Plus 2005 (ISO)

M-itsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000,RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)

M-itsubishi Lancer Evolution IX 2006 (ISO)

M-itsubishi Pajero 3.5 V6 2006 (ISO)

N-issan Sunny B14 (ISO)

N-issan Sunny VIP FB15 (ISO)

N-issan X-Trail 2.0L 2004 (ISO)

N-issan X-Trail 2.5L 2004 (ISO)

P-eugeot 206 2001 –Only can show RPM

P-eugeot 206 (ISO)

P-eugeot 307 (ISO)

P-eugeot 407 (ISO)

R-enault Megane II 2005 (ISO)

R-enault Kangoo 2006 (ISO)

S-ubaru Impreza 1.6TS 2002 (ISO)

S-ubaru Impreza WRX 2005 (ISO)

T-oyota Camry 2.0A 2004 (ISO)

T-oyota Camry 2.4A 2005 (ISO)

T-oyota Corolla Altis 1.6A 2005 (ISO)

T-oyota Corolla GLXi G8 1999 (ISO)

T-oyota Corolla G9 2002 (ISO)

T-oyota Vios 2004 (ISO)

Elm327 Not available veichles:

M-azda 323 Protege 2003 (OBD-I)

M-itsubishi Lancer 1.6M 2006

N-issan Sunny (N16)

N-issan Cefiro (Teana) 2005

N-issan sentra 1.8 2000/2005

N-issan Cefiro (Teana) 2005

P-roton Perdana V6

S-ubaru Legacy GT 2005

T-oyota camry 2002

T-oyota Wish JDM (Missing Pin 5 in DLC)

T-oyota IST JDM (Missing Pin 5 in DLC)

T-oyota altis 1.8 2004

P-eugeot 206 2000

S-uzuki Jimny 1.3 2000
