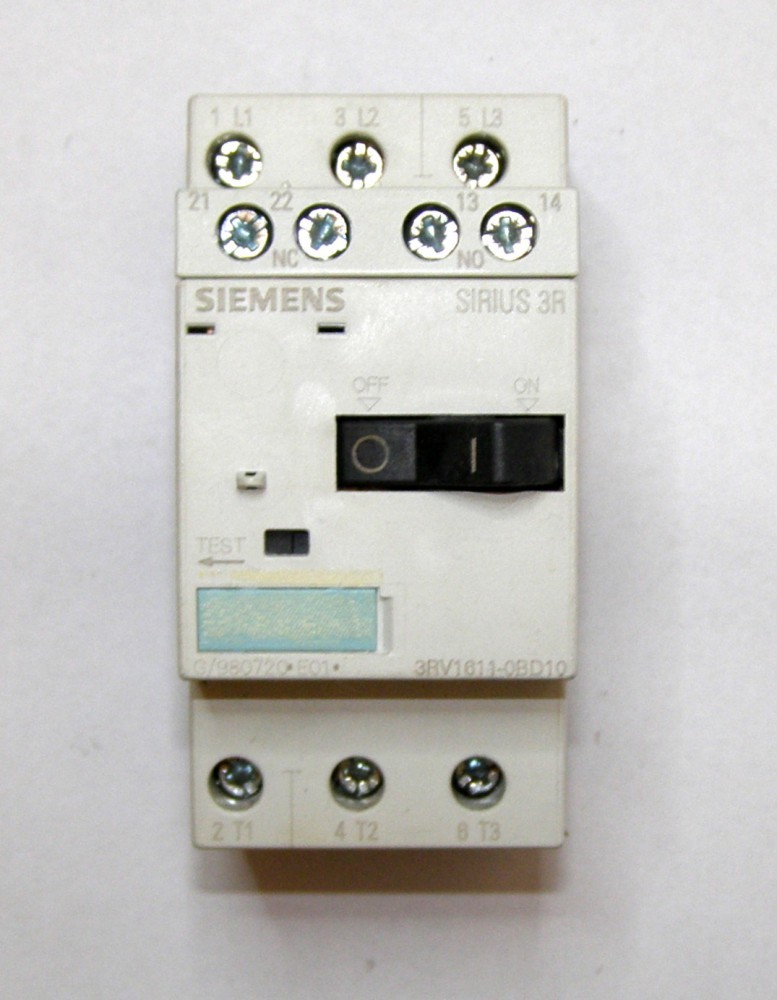

Intreruptor tripolar Siemens 3rv1611 0bd10(634)

Intreruptor tripolar Siemens 3rv1611 0bd10 product brand name SIRIUSproduct designation circuit breakerSize of the circuit-breaker S00Number of poles / for main current circuit 3Product function&bull removable terminal for auxiliary and control circuit No&bull overload protection Yes&bull phase disturbance recognition Yes&bull short-circuit to earth recognition NoProduct component&bull auxiliary switch No&bull undervoltage release mechanism No&bull trip indicator NoProduct extension&bull auxiliary switch Yes&bull optional / motor drive NoImpulse voltage resistance / rated value V 6000Protection class IP / on the front IP20Protection against electrical shock finger-safe3RV1611-0BD10Page 1/ 03/06/2013subject to modifications4 © Copyright Siemens AG 2013Installation altitude / at a height over sea level / maximum m 2000Resistance against shock 25g / 11 msAmbient temperature&bull during transport &degC -50 &hellip +80&bull during storage &degC -50 &hellip +80&bull during operating &degC -20 &hellip +70Main circuit:Operating voltage / rated value V 690type of voltage AC/DCOperational current / at AC-3 / at 400 V / rated value A 0.2Mechanical operating cycles as operating time / of the maincontacts / typical100000Frequency of operation / at AC-3 / according to IEC 60947-6-2 1/h 15Auxiliary circuit:Number of change-over switches / for auxiliary contacts 0Protection function:Trip class CLASS 10Breaking capacity limit short-circuit current (lcu)&bull at 400 V / rated value kA 100&bull at 500 V / rated value kA 100&bull at 690 V / rated value kA 100Installation/mounting/dimensions:Type of mounting screw and snap-on mounting onto 35 mm standardmounting rail according to DIN EN 50022mounting position anyDepth mm 81Height mm 90Width mm 45Connections:Arrangement of electrical connectors / for main current circuit front sideDesign of the electrical connection&bull for main current circuit screw-type terminals&bull for auxiliary and control current circuit screw-type terminalsType of the connectable conductor cross-section&bull for main contacts&bull solid 2x (0.5 ... 1.5 mm²) 2x (0.75 ... 2.5 mm²)&bull finely stranded3RV1611-0BD10Page 2/ 03/06/2013subject to modifications4 © Copyright Siemens AG 2013&bull with conductor end processing 2x (0.5 ... 1.5 mm²) 2x (0.75 ... 2.5 mm²)&bull stranded 2x (0.5 ... 1.5 mm²) 2x (0.75 ... 2.5 mm²)&bull for AWG conductors / for main contacts 2x (18 ... 14)
