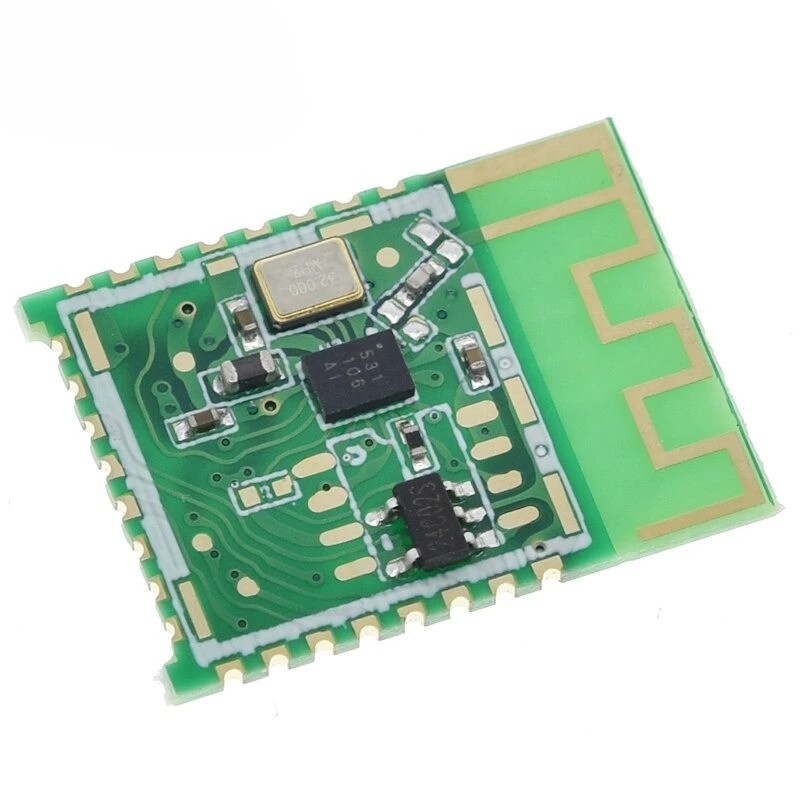

JDY-27 bluetooth 5.1 transmisie transparentă integrat Master / Slave (JDY340)

Produsul este nou!

Specificații în limba engleză:

The JDY-27 master-slave integrated transparent transmission module is based on the Bluetooth-compatible 5.1 protocol standard, the working frequency band is 2.4GHZ range, the modulation method is GFSK, the maximum transmission power is 2db, and the maximum transmission distance is 100 meters.

It supports users to modify the device name and wave through AT commands. Special rate and other instructions.

Parameters:

Model: JDY-27

Working frequency band: 2.4G

Transmitting power: 2db (maximum)

Communication interface: UART

Working voltage: 1.7V-3.6V

Working temperature: -40℃-80℃

Antenna: Built-in PCB antenna

Receiving sensitivity: -96dbm

Transmission distance: 100 meters

Master-slave support: master-slave integration

Bluetooth-compatible version: BLE 5.1 (compatible with BLE4.0, BLE4.2, BLE5.0)

Wake-up state current: 300uA (with broadcast)

Light sleep state current: <50uA (with broadcast)

Deep sleep current: 1uA (no broadcast)

Command parameter saving: parameter configuration data is saved after power-off

SMT soldering temperature: <250℃

Serial port to mobile phone: 12K Byte/S (support 115200 full-speed transparent data transmission to mobile phone without packet loss)

The phone sends to the serial port: 8K Byte/S

Android MTU support: ≤247 byte

Apple MTU support: ≤185 byte
