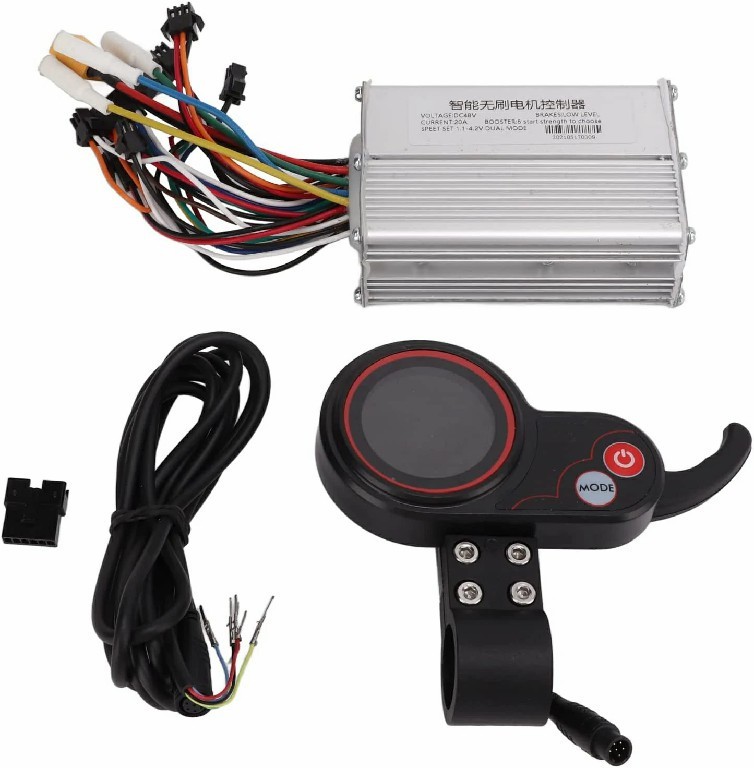

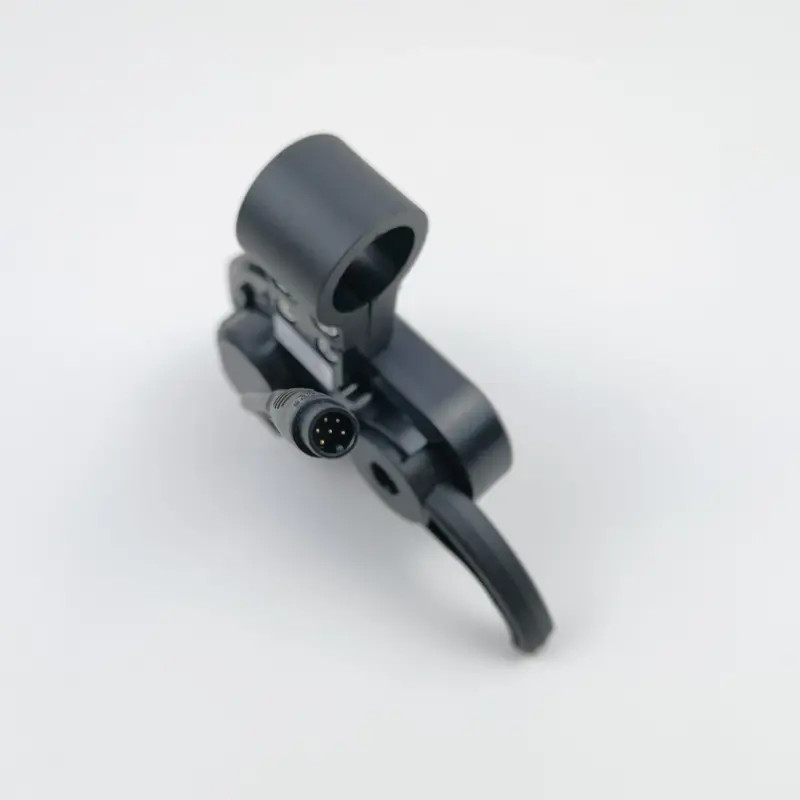

Kit Controller + display maneta pt trotineta bicicleta electrica 48V 500W 1000W

Se poate adapta la toate trotinete si bicicletele electrice cu baterie de 48V ( Kugoo, Joyor, Zero, etc ).

Marimea produselor:

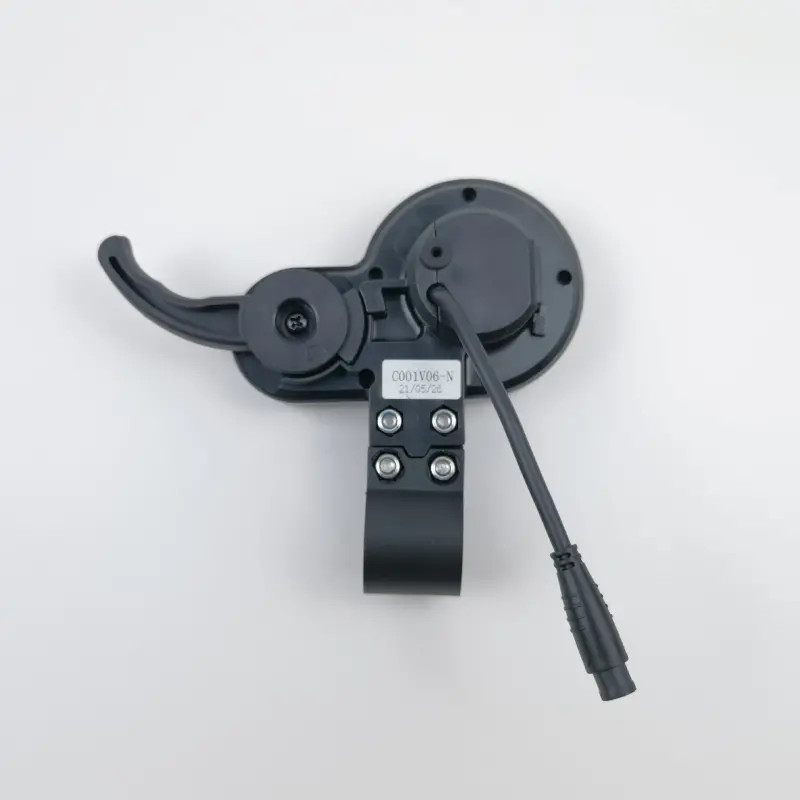

Display: aprox. 125x112mm
Lungime cablu: aprox. 100 mm

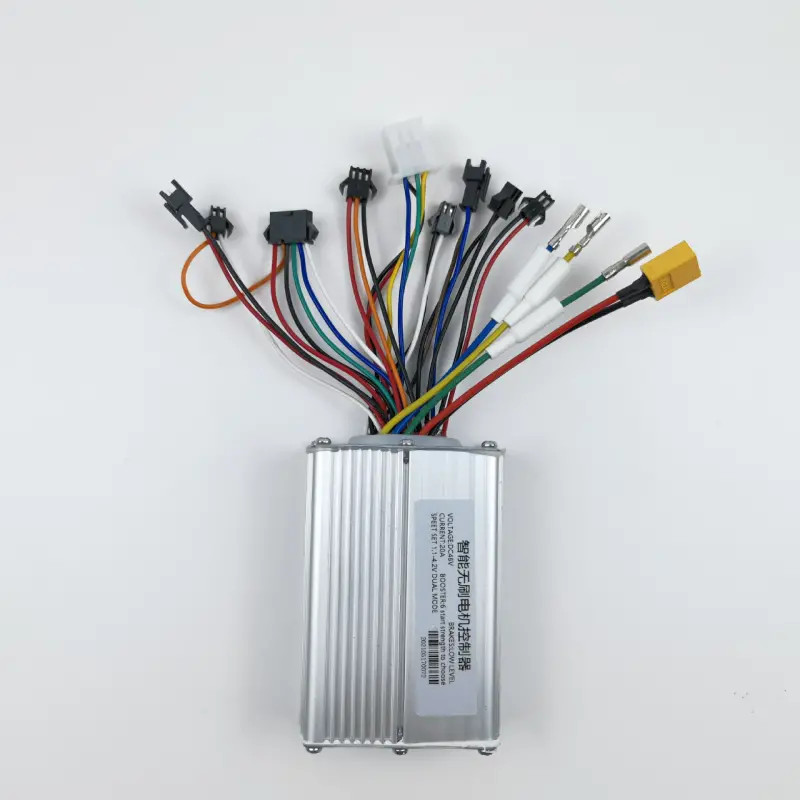

Controler: Aprox. 97x70x33mm

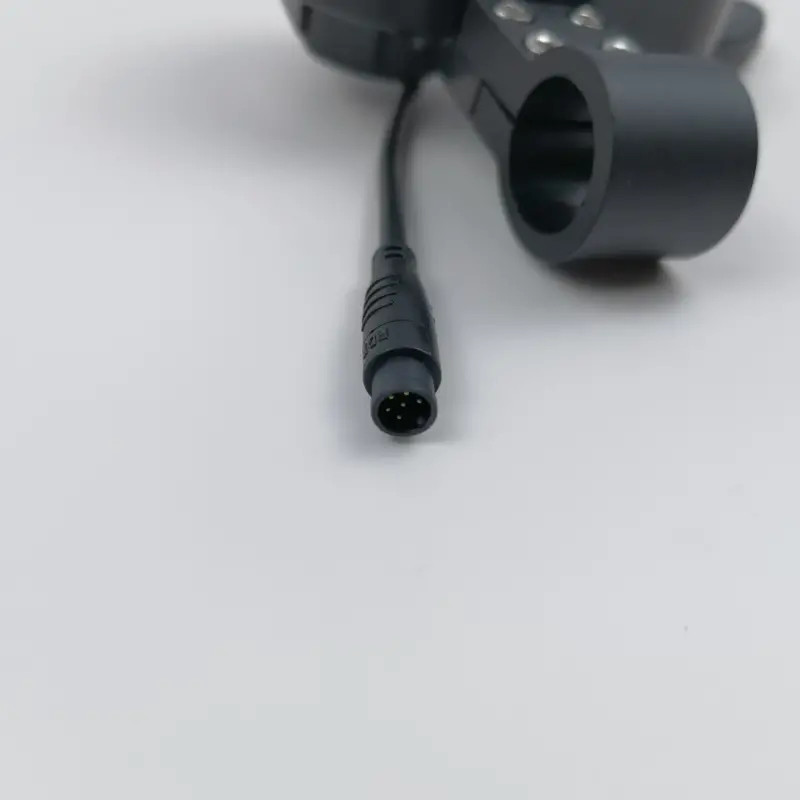

Lungimea totala a cablului de comunicatie: aprox. 183 cm
Tensiune: 48V
Curent: 20A
Ghidon aplicabil: Diametru 22,2 mm ( standard )

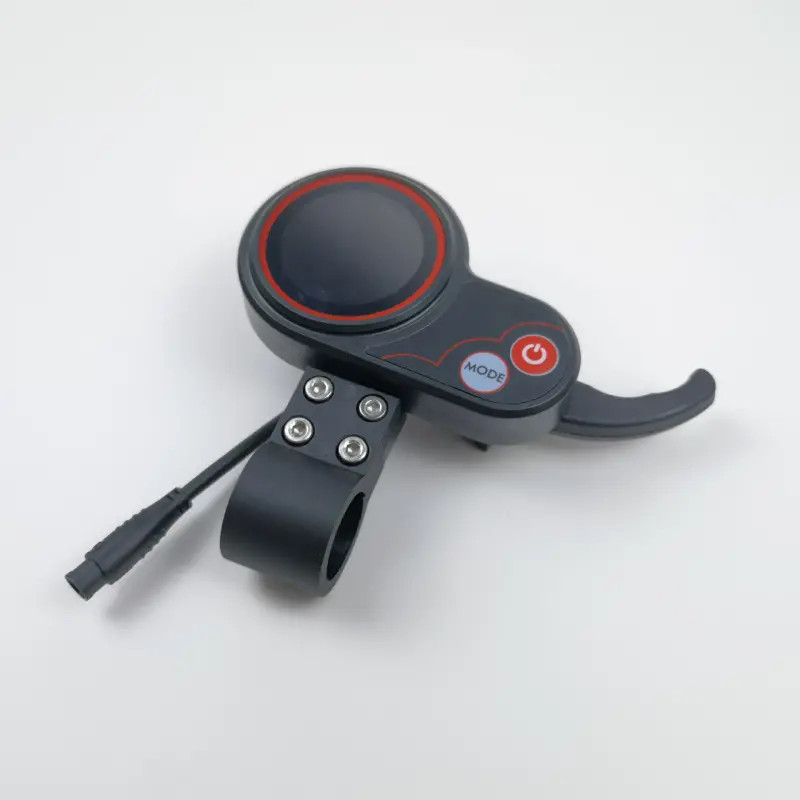

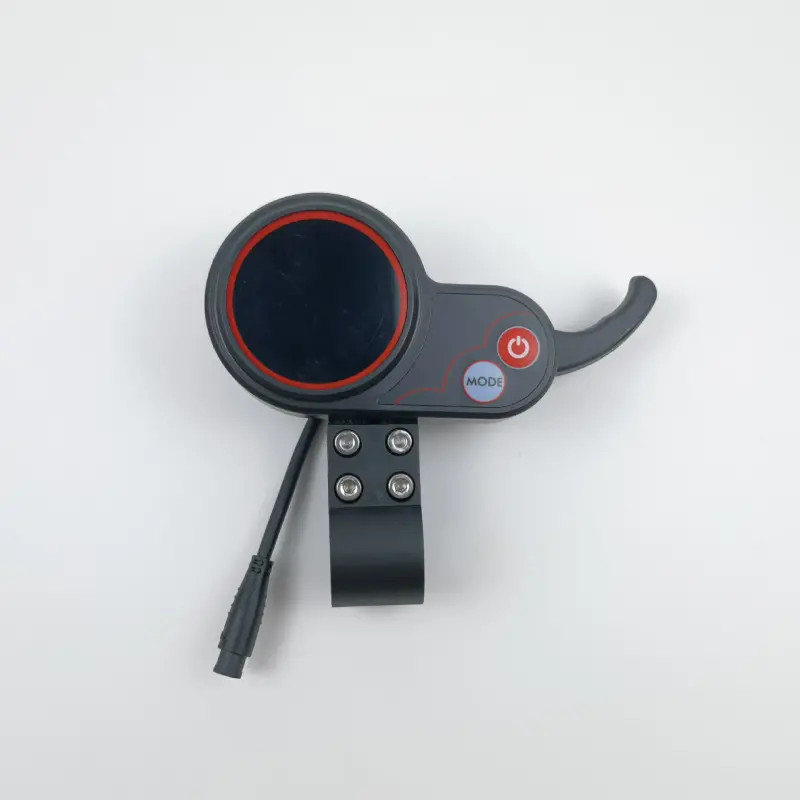

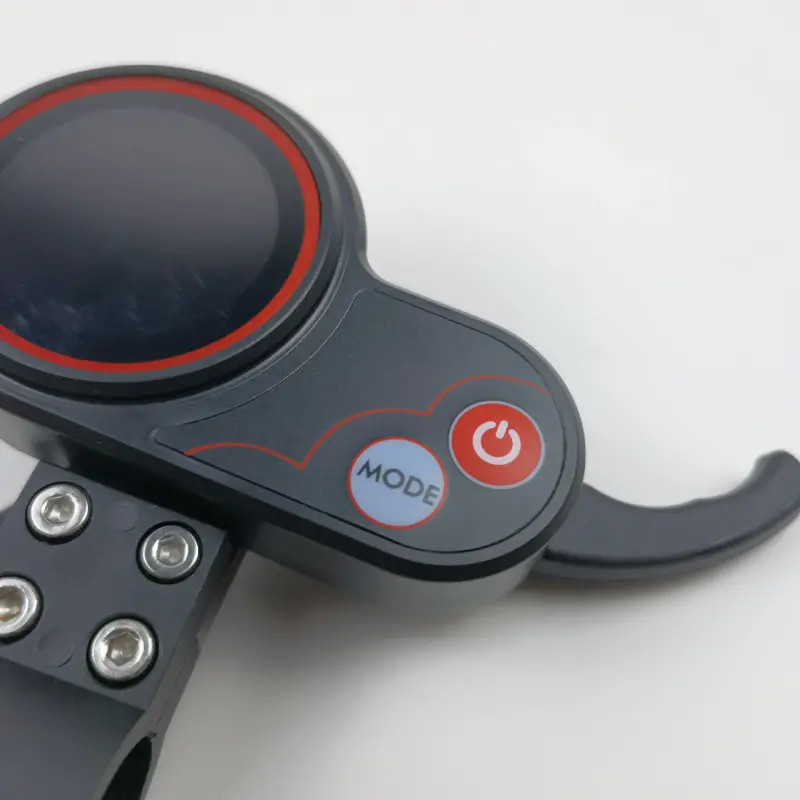

Ecranul permite afisarea urmatoarelor valori:
Indicator de viteza ( kilometraj )
Indicator de baterie ( gradatie )
Indicator de defectiune ( eroare )
Indicator de faruri
Treapta de viteza
Indicator de croaziera (cruise control)
Kilometri parcursi
Tensiune in timp real
Timp de functionare
Modul de pornire
si altele

Pt setari avasate apasati pe butonul power si mode in acelasi timp.

P01：backlight lightness, 1 is most dark, 3 is most light,
P02：set range unit，0：KM；1：MILE；
P03：voltage ：24V/36V/48V/60v ，default setting : 48V；
P04：sleeping time：0-no sleep；other number means sleeping time，scope：1-60；unit in minute；
P05：pedal gears : 0： 3gears mode；
P06：rim size ：unit ，inch；precision：0.1；
P07：speed testing magnetic steel number ：scope：0-255；
P08：speed limit：scope 0-100km/h，(did not open this )
P09：zero start/non-zero start，0：zero start；1：non-zero start；
P10：driven way set 0 : pedal drive: pedal gears will decide how many pedal power to output. now the throttle will not work 1 : electricity: driven by throttle, now pedal do not work 2 : both pedal and throttle will work (zero start will not work under electricity mode)
P11：pedal sensitivity (do not open)
P12：pedal strength set (unopened)
P13：pedal magnetic sensor set 5/8/12
P14：controller current limit set, default setting 13A scope：1-20A ( for 1000w you need to set 20A )
P15：controller under voltage set
P16：ODO zero clear set , long press for 5 seconds, ODO come to zero
P17：0：no cruise，1：can cruise； auto cruise available only for number 2 communication protocol
P18：indicating speed ratio set, scope：50%~150%，
P19：0 available or not ，0：with 0 gear，1：no 0 gear
P20：0: 2 number protocol 1: 5S protocol 2：standby 3：standby

Valorile de mai sus pot suferi mici variatii in functie de lotul primit.
Pentru instalarea produselor sunt necesare abilitati profesionale specifice montajului electric.

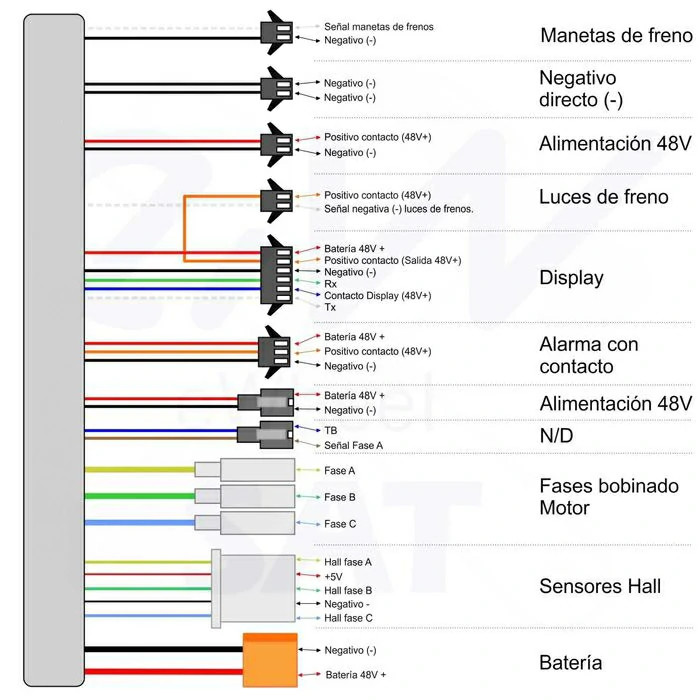

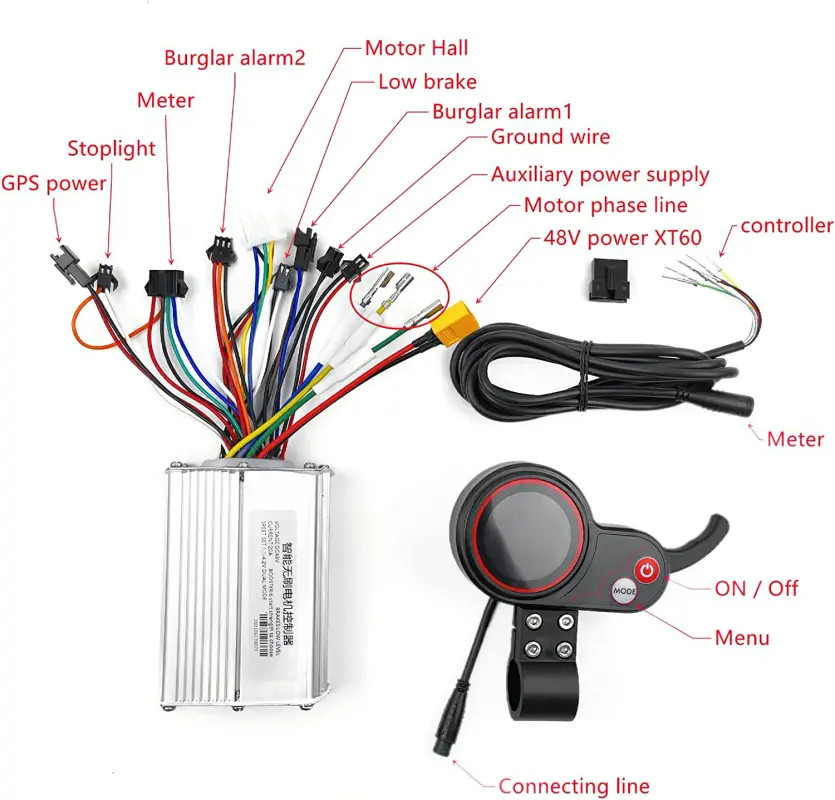

Va rugam sa consultati schita de montaj inainte de a achizitiona acest produs.

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
