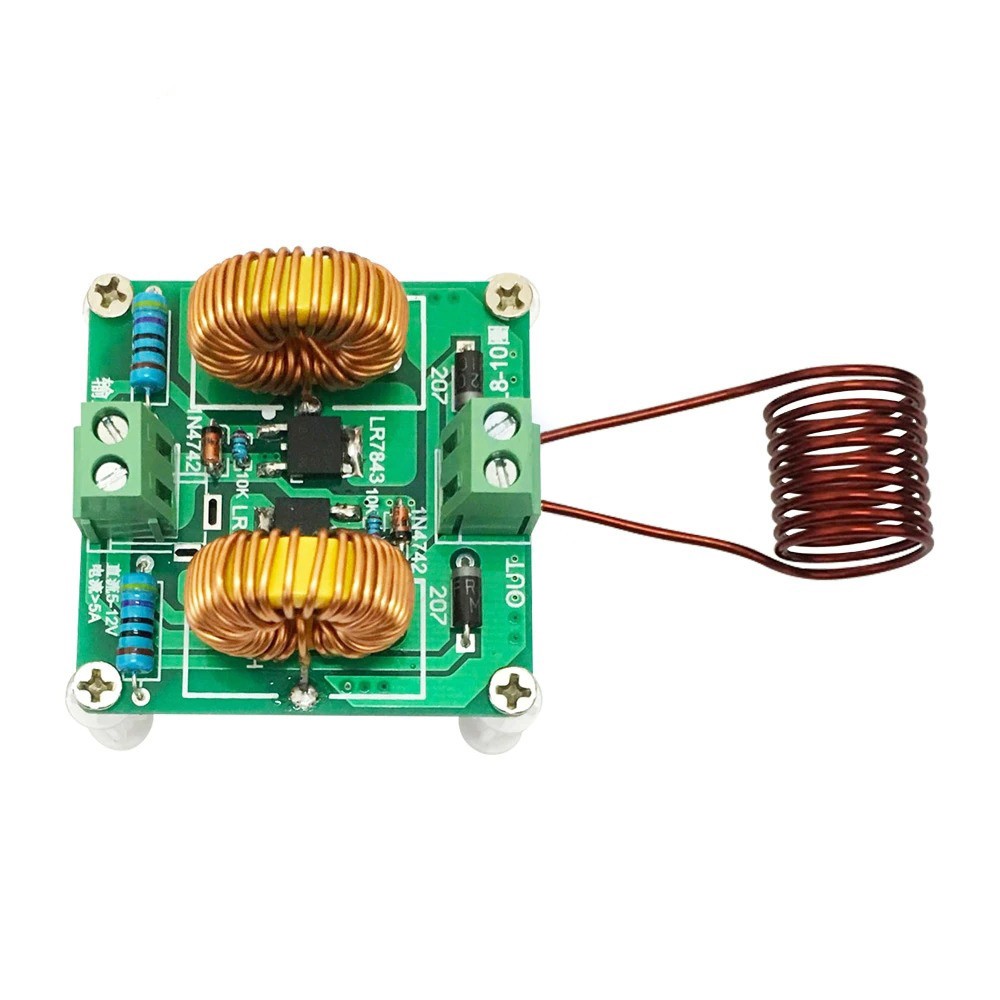

Kit incalzitor inductie magnetica 12V - 120W (i.3877C)

Specificații în limba engleză:

This is the mini ZVS suite, the package is very small, can not use ordinary battery power supply, it is recommended to use high-power switching power supply, etc., 5 to 12V power supply current shall not be less than 5A!!!

Note that the power supply to use high-power power, power should be sufficient, the working voltage is less than 5V does not work, the current is less than 5A does not work.

The operating voltage should not exceed 12V or less than 5V, only refers to the voltage when the circuit is working, not the output voltage of the power supply without load! More than 12V or less than 5V power supply, the circuit is prone to problems, the seller is not responsible!

12V power supply push high voltage package, power 60W or so, MOS tube does not heat, no auxiliary heat dissipation.

If used to do induction heating, please do not work long hours, after all, limited power, induction heating, primary coil heating is relatively large, pay attention to heat dissipation.

Make sure all components are soldered properly, the positive and negative of the power line are not connected, and after the load (heating coil, high voltage package), the power supply is connected again!

No electricity without load!

No-load energization is easy to damage! No load is energized, the 2 MOS tubes are easy to conduct at once, and then the heat is burned out!

Maximum power 120W (12V induction heating)

Batteries, batteries, power supply must ensure that the work voltage is above 4.5V!

If you can't make sure that the voltage is above 4.5V during work, do not use batteries or batteries!

Do not use dry batteries!

The width of the heated coil shall be as high as 1/3~1/2 of the inner diameter of the heating coil, and the maximum shall not exceed 2/3!

Heating the diameter of the object as much as possible within the control of 20mm, too large heating will be difficult to heat up red, after all, limited power.

Induction heating, the general work of 5 minutes to power down cooling.

Because the induction heating current is relatively large, coil heating is relatively large.

When heated, some of the heat produced by the heated object is passed to the heating coil.

For a long time, the temperature of the heating coil is very high. If the heating coil is attached to the terminal, it will melt the plastic part of the terminal!

1. tin welding pads are firm and can be subjected to repeated disassembly and disassembly, and it is not easy to fall off;
