Kit NE555 + CD4017 light water flowing light LED module (n.2833X)
-
Ramburs cu Garantia de Livrare
Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.
- Online
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Produsul este la fel cu cel prezentat in fotografii!
Specificații în limba
engleză:

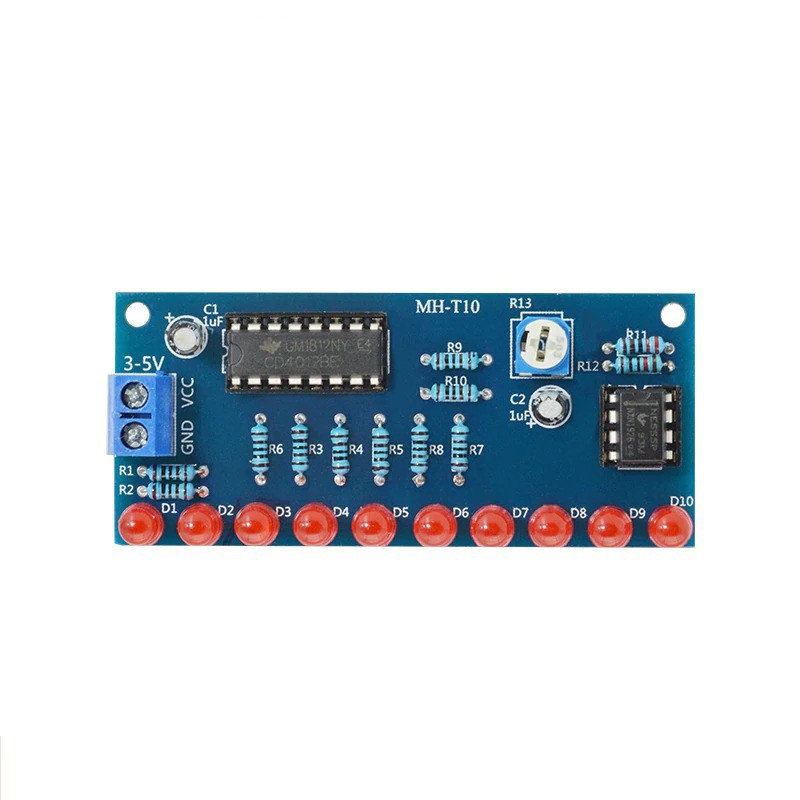

After power on, the 10 LEDs will light up sequentially from left to right, showing the state of running lights. This kit can display the NE555 timing and CD4017 counting functions intuitively. It is a starter kit for learning timers, counters, frequency dividers, and lantern controllers. At the same time, the kit has good effects, is very interesting and practical, and is also the preferred material for beginners to get started.
Circuit principle:
This kit is mainly composed of a clock generation circuit and a decimal counter circuit. It is a self-excited multivibrator with NE555 as the core. The power supply charges capacitor C2 through R11, R12, and R13. When C2 just starts to charge, pin 2 of NE555 is still in Low level, so the output pin 3 is high. When the power is charged to 2/3 of the power supply voltage to C2 through R11, R12, R13, the level of the output pin 3 changes from high to low, and the internal discharge tube of NE555 turns on , Capacitor C2 is discharged through R13, R12, NE555 pin 7 until the voltage across C2 is lower than 1/3 of the power supply voltage, NE555 pin 3 level changes from low to high again. C2 is charged again, This cycle forms an oscillation. The charging time is: 0.695(R11+R12+R13)C2, and the discharging time is: 0.695(R13+R12)C2. Adjusting R13 can control the output frequency of the oscillator. The clock oscillation signal of NE555 is constantly added to pin 14 of CD4017. There are 10 LEDs connected to the 10 output terminals of the CD4017. When the 10 output terminals of the CD4017 generate high levels in turn under the action of the clock signal, D1--D10 will be lit in turn to form a water lamp effect. Adjust R13 to adjust the flow speed of LED lights.
Shipping list:
Common problem:
1. Take care to avoid wrong welding of the positive and negative poles of the LED, and the long leg is the positive pole.
2. Take care to avoid wrong welding of the positive and negative electrodes of the electrolytic capacitor, and the long leg is the positive electrode.
3. Take care to avoid inserting the chip in the opposite direction. The chip notch and the base notch should be in the same direction as the notch on the board.
4. Take care to avoid wrong connection of the positive and negative poles of the power supply. The correct connection method is to connect VCC to the positive pole, GND to the negative pole, and supply a 3-5V DC voltage.
Pay attention to check the welding for short-circuit and virtual welding.
Pachetul conține:

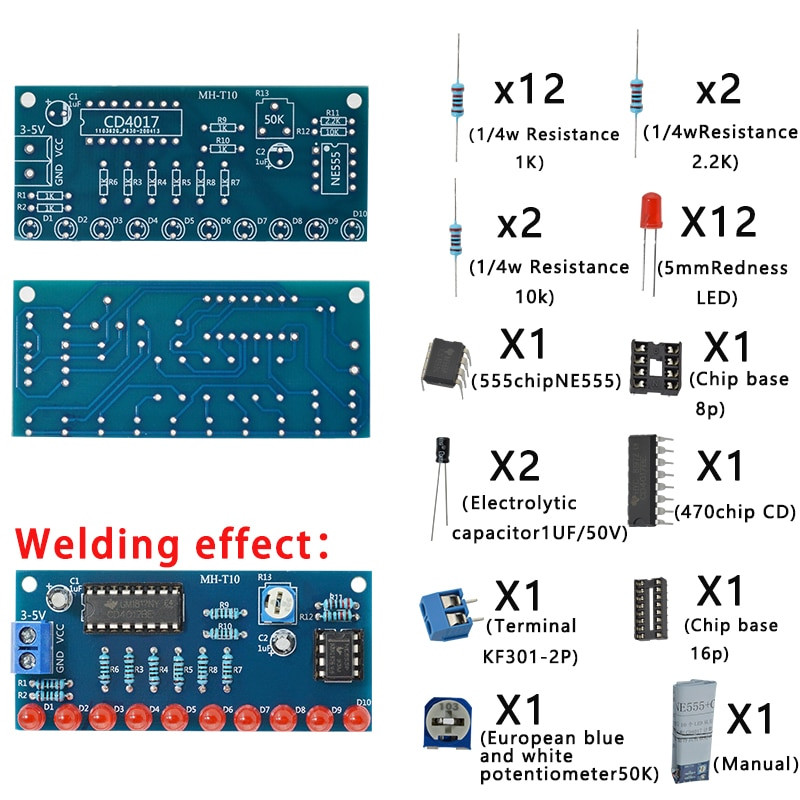

• 1 bucată x Kit NE555 + CD4017 light water flowing light LED
