Kit sursa alimentare audio nou

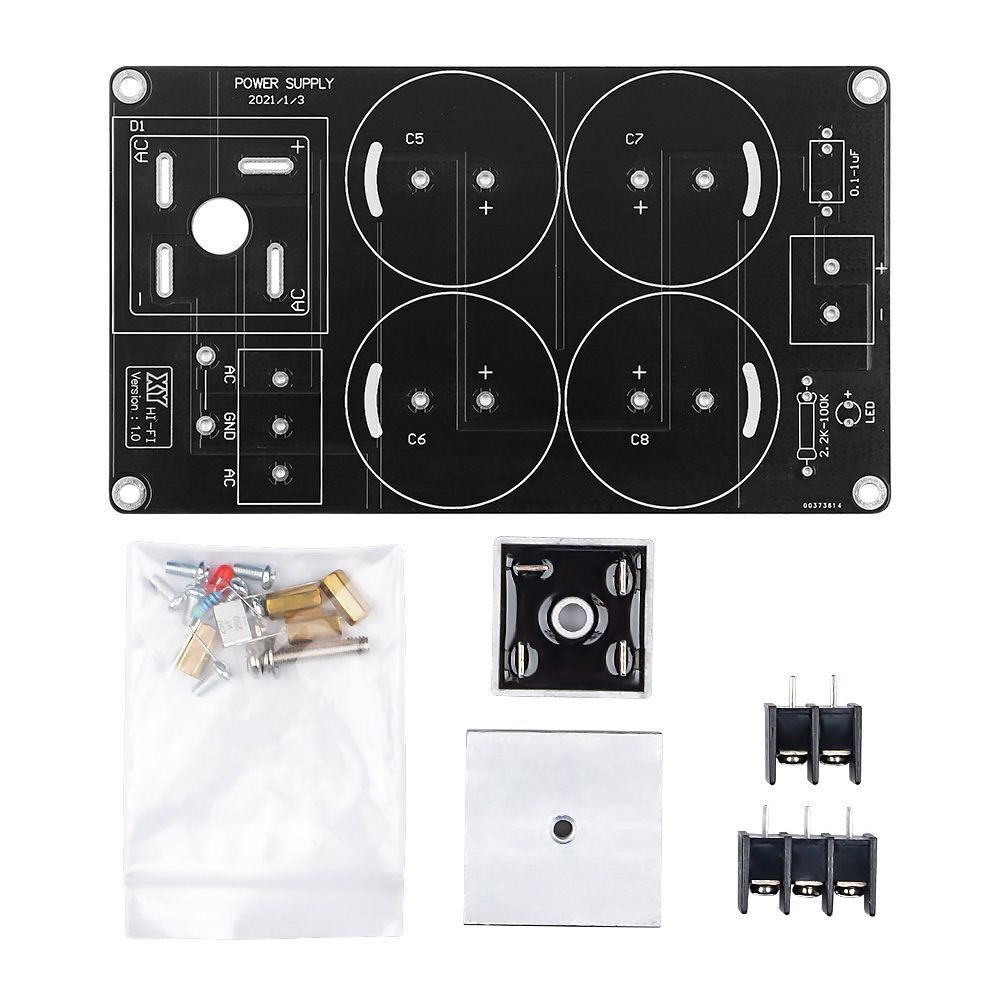

Vand Kit sursa alimentare audio nou Vine sub forma de kit-nu este asamblata-vezi foto Nu contine condensatorii electrolitici-vezi foto Amplifier single power rectifier filter board diy kits (it need you soldering by yourself). 1. This board is a single-supply, high-current rectifying and filtering circuit. It is compatible with single or dual power transformers. The board output has LED indication and can accommodate up to 4 capacitors with a diameter of 35mm and a pitch of 10mm. 2. The bridge pile is a 50A pure copper foot high-current type bridge pile with a radiator. High-current input and output terminals, output with S-iemens EPCOS layer cake high-frequency filter fever capacitance. 3. PCB size(L*W): 128mm*73mm. 4.Input voltage: AC35V below Tips:The board output is a single DC power supply, and two sets of terminal blocks are designed at the output end. They are connected in parallel to facilitate the simultaneous connection of two power amplifier board
