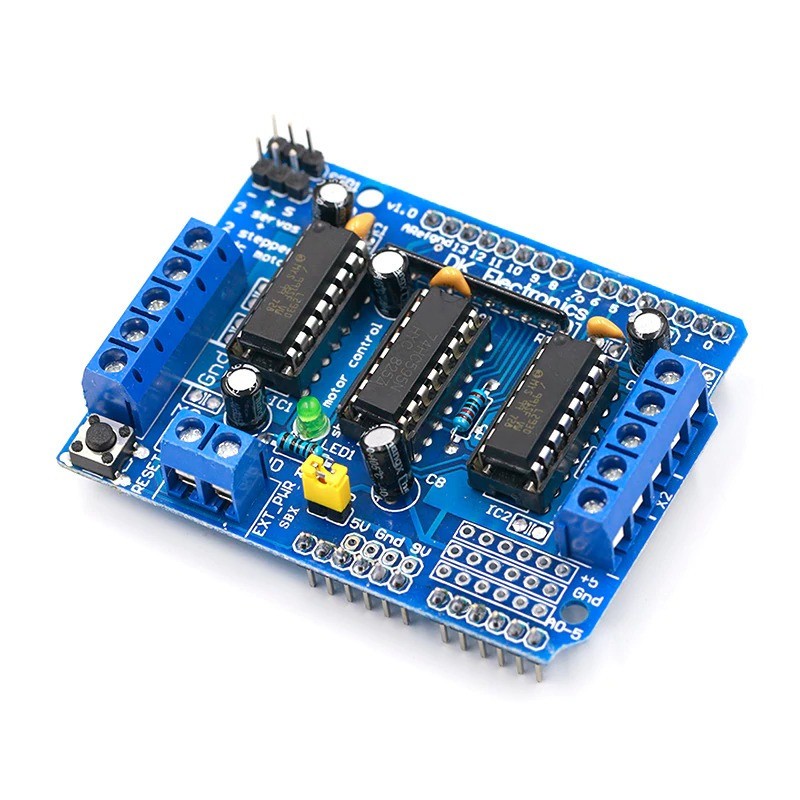

L293D modul motor driver shield pentru Arduino (L.011)

Produsul este nou!

Produsul este la fel cu cel prezentat in fotografii!

Specificații în limba engleză:

• L293D is a monolithic integrated, high voltage, high current, 4-channel driver.

• Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge.

• The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.

• 2 interface for 5V Servo connected to the Arduino's high-resolution dedicated timer - no jitter.

• Can drive 4 DC motors or 2 stepper motors or 2 Servo.

• Up to 4 bi-directional DC motors with individual 8-bit speed selection.

• Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.

• 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC.

Pull down resistors keep motors disabled during power-up. reset button.

• 2 external terminal power interface, for seperate logic/motor supplies.

• Tested compatible for Arduino Mega, Diecimila & Duemilanove.

Dimensiuni: 6,8cm x 5,5cm x 2cm

Pachetul conține:
• 1 bucată x L293D motor drive (cod produs: L.011)
