Linie audio completa Technics SL EH760 Intra sa vezi

Ma vrei ? Pot fi a ta..

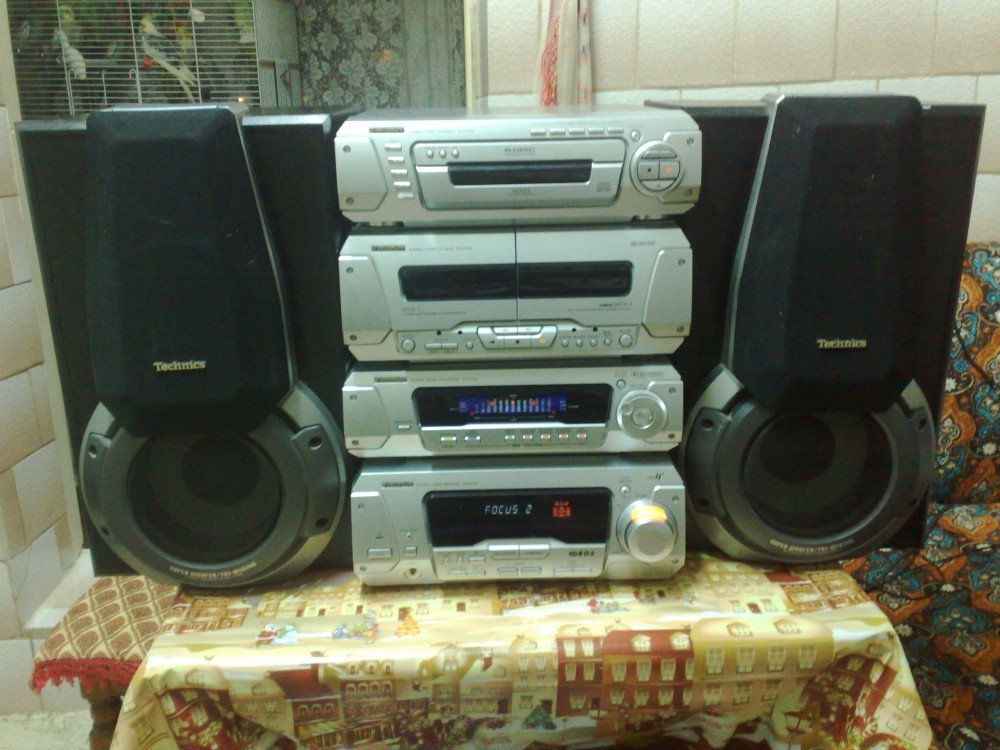

Vand linie audio completa* Technics SL EH760

*compusa din -unitate procesor sunet, -unitate amplificare sunet si radio, -unitate cd player cu cd changer x5, -unitate deck 2 x casete cu banda magnetica , 2 x boxe cu trei cai.

Linia este complet digitala sunet foarte puternic si clar. Doar este Technics

Motivul vanzarii e ca am ramas fara telecomanda ( linia se poate folosi in toate funcctiile si fara telecomanda)

Sunt unicul proprietar am cumparato din Leeds - Marea Britanie in 2010 fara antene radio si sateliti acestia putand fi achizitionati separat.

O vand deoarece invitatii de la Craciunul din 2014 m-au lasat fara telecomanda si nu am gasit sa cumpar alta originala.

Putere difuzoare : joase 17cm 2x120w 8 ohmi , medii 12cm 2x60w 6ohmi, inalte 6cm 60w 6ohmi

Putere linie amplificata pmpo 1400w

Nu am folosito la maxim, nu a fost defecta, nu s-a umblat in interiorul ei, functioneaza perfect in totalitate si este complet automata/digitala

Cantareste 23 de kg in total se poate livra prin posta sau courier dumneavoastra suportand plata

Ca sa aveti mai multe sanse de castig folositi autolicitatoru ( treceti cat sunteti dispus sa oferiti) deoarece se vinde utilizatorului care a facut cea mai buna oferta! Indiferent cat va fi pretul Succes.

Clic aici pentru a vedea toate licitatiile mele.

Specificatii:

 SOUND PROCESSOR

º EQ/SFP section

MANUAL GEQ

3-Band parametric EQ

Center frequency

High band

Mid band 240 Hz, 390 Hz, 630 Hz, 1 kHz,

Low band 70 Hz, 90 Hz, 143 Hz, 240 Hz

Level control n1.2, 2.4, 3.6, 4.8, 6 dB

EQ SPACE mode

3 modes HEAVY, CLEAR, HALL

3D acoustic image EQ

3 modes AI EQ, 3D AI 1, 3D AI 2

º Pre-amplifier section [SC-EH760]

Input sensitivity/impedance

VCR (EXT) 250 mV/15 k­

AUX (DVD) 250 mV/15 k­

Output level

VCR REC OUT 150 mV/1.5 k­

(For Australia and N.Z. only)

VIDEO OUTPUT

MONITOR OUT 1 Vp-p, 75 ­

VCR REC OUT 1 Vp-p, 75 ­

º Pre-amplifier section [SC-EH560]

Input sensitivity/impedance

VCR (EXT) 250 mV/15 k­

Output level

VCR REC OUT 150 mV/1.5 k­

º DOLBY PRO LOGIC section [SC-EH760]

PRO LOGIC mode SURROUND

CENTER mode NORMAL

DELAY TIME 20 ms (Fixed)

º VIRTUAL DOLBY SURROUND section

[SC-EH560]

Mode VIRTUAL DOLBY SURROUND

º AV SURROUND section

AV surround mode SIMULATED STEREO

[SC-EH760] SUPER SURROUND

(MUSIC, MOVIE)

º DSP CONTROL section

DSP control mode SEAT POSITION

[SC-EH760] CENTER FOCUS (1, 2),

[SC-EH760] VIRTUAL REAR SURROUND,

[SC-EH760] MULTI REAR SURROUND,

[SC-EH760] 3D ENHANCED SURROUND

[SC-EH560] CENTER EFFECT (1, 2, 3),

[SC-EH560] SURROUND EFFECT (1, 2, 3)

º Spectrum analyzer section

Display mode NORMAL, PEAKHOLD, AURORA

º General

Dimensions (WtHtD)

[SC-EH760] 293k89k270 mm

[SC-EH560] 293k89k269 mm

Mass [SC-EH760] 1.5 kg

[SC-EH560] 1.4 kg

TUNER AMPLIFIER

º Amplifier section [SC-EH760]

Power output (L/R both channel driven)

Stereo Mode

DIN 10 kHz THD 1 %/6 ­ (High) 2k20 W

1 kHz THD 1 %/6 ­ (Mid) 2k20 W

100 Hz THD 1 %/8 ­ (Low) 2k50 W

RMS 10 kHz THD 10 %/6 ­ (High) 2k30 W

1 kHz THD 10 %/6 ­ (Mid) 2k30 W

100 Hz THD 10 %/8 ­ (Low) 2k70 W

PRO LOGIC mode

DIN FRONT 1 kHz THD 1 %/TTL Imp. 6 ­

(High/Mid) 2k20 W

100 Hz THD 1 %/8 ­ (Low)

2k50 W

SURROUND 1 kHz THD 1 %/8 ­ 2k20 W

CENTER 1 kHz THD 1 %/8 ­ 50 W

RMS FRONT 1 kHz THD 10 %/TTL

1. ­ (High/Mid)

2k30 W

100 Hz THD 10 %/8 ­ (Low)

2k70 W

SURROUND 1 kHz THD 10 %/8 ­ 2k30 W

CENTER 1 kHz THD 10 %/8 ­ 70 W

PMPO 1 kHz/High or Mid 6 ­, Low 8 ­

1. ­, SURR. 8 ­ 3,000 W

Total harmonic distortion

Rated power at 1 kHz 1 % (6 ­)

Half power at 1 kHz 0.1 % (6 ­

Load impedance

FRONT (High/Mid) total impedance 6 ­

FRONT (Low) 8 ­

SURROUND 8 ­

CENTER 8 ­

Center frequency 70 Hz

LEVEL (VOL s20 dB) MID i8 dB

MAX i12 dB

º Amplifier section [SC-EH560]

Power output (L/R both channel driven)

DIN 10 kHz THD 1 %/6 ­ (High) 2k12 W

1 kHz THD 1 %/6 ­ (Mid) 2k12 W

100 Hz THD 1 %/6 ­ (Low) 2k36 W

RMS 10 kHz THD 10 %/6 ­ (High) 2k18 W

1 kHz THD 10 %/6 ­ (Mid) 2k18 W

100 Hz THD 10 %/6 ­ (Low) 2k54 W

PMPO 1 kHz/Low 6 ­, Mid 6 ­, High 6 ­

1,400 W

Total harmonic distortion

Rated power at 1 kHz 1 % (6 ­)

Half power at 1 kHz 0.1 % (6 ­)

Load impedance Main (High) 6 ­

Main (Mid) 6 ­

Main (Low) 6 ­

Center frequency 70 Hz

LEVEL (VOL s20 dB) MID i8 dB

MAX i12 dB

º FM tuner section

Frequency range 87.50–108.00 MHz

(0.05 MHz steps)

Sensitivity 1.8 ¬V (IHF usable)

S/N 26 dB 1.5 ¬V

S/N

MONO 70 dB (75 dB, IHF)

Antenna terminal(s) 75 ­ (unbalanced)

º AM tuner section

Frequency range 522–1629 kHz (9 kHz steps)

520–1630 kHz (10 kHz steps)

Sensitivity (S/N 20 dB) 500 ¬V/m

º Timer section

Clock Quartz-lock type

Function Play timer (1 time, daily),

Rec timer (1 time, daily),

Sleep (120 min, 30 min intervals)

Setting intervals (Play/Rec)

1 minute–23 hours 59 minutes

(1 min intervals)

º General

Power supply

(For United Kingdom, Australia and N.Z.)

AC 230–240 V 50 Hz

(For others) AC 230 V 50 Hz

Power consumption [SC-EH760] 205 W

[SC-EH560] 110 W

Standby

Normal mode 11 W

ECO mode 0.5 W

Dimensions (WtHtD) 293k118.5k346 mm

Mass [SC-EH760] 5.3 kg

[SC-EH560] 4.3 kg

CD PLAYER

º Audio

DA converter 1 bit DAC MASH

º Pickup

Wavelength 780 nm

º General

Dimensions (WtHtD)

[SC-EH760] 293k89k288 mm

[SC-EH560] 293k89k268 mm

Mass [SC-EH760] 2.2 kg

[SC-EH560] 1.6 kg

CASSETTE DECK

Deck system Stereo cassette deck

Track system 4 track, 2 channel

Recording system AC bias

Bias frequency 100 kHz

Erasing system AC erase

Heads

Deck 1

(Playback head) Permalloy head

Deck 2

(Recording/Playback head) Permalloy head

(Erasing head) Double gap ferrite head

Motors

Deck 1, 2

Capstan drive DC servo motor

Tape speed 4.8 cm/s

Wow and flutter 0.16 % (WRMS)

Fast forward and rewind times

C-60 cassette tape

Frequency response (Dolby NR off)

TYPE I (NORMAL) 20 Hz–16 kHz (DIN)

TYPE II (HIGH) 20 Hz–16 kHz (DIN)

TYPE IV (METAL) 20 Hz–16 kHz (DIN)

S/N (Signal levelumax recording level, TYPE II

type tape)

NR off 56 dB (A weighted)

Dolby B NR on 66 dB (A weighted)

Input sensitivity and impedance

REC (IN) 150 mV/23 k­

Output voltage and impedance

PLAY (OUT) 280 mV/360 ­

º General

Dimensions (WtHtD) 294k118.5k281 mm

Mass 2.1 kg

FRONT SPEAKER [SC-EH760]

Type 3 way, 3 speakers

Speaker(s)

Super woofer 17 cm cone type

Woofer 12 cm cone type

Tweeter 6 cm ring shaped dome type

Impedance High 6 ­

Mid 6 ­

Low 8 ­

Input power (Music) High 60 W

Mid 60 W

Low 120 W

Output sound pressure level 87 dB/W (1.0 m)

Crossover frequency 120 Hz, 4 kHz

Frequency range 42 Hz–50 kHz (j16 dB)

46 Hz–36 kHz (j10 dB)

º General

Dimensions (WtHtD) 254k422k260 mm

Mass 6.4 kg

FRONT SPEAKER [SC-EH560]

Type 3 way, 3 speakers

Speaker(s)

Super woofer 14 cm cone type

Woofer 12 cm cone type

Tweeter 6 cm cone type

Impedance High 6 ­

Mid 6 ­

Low 6 ­

Input power (Music) High 40 W

Mid 40 W

Low 70 W

Output sound pressure level 84 dB/W (1.0 m)

Crossover frequency 150 Hz, 4 kHz

Frequency range 46 Hz–22 kHz (j16 dB)

50 Hz–20 kHz (j10 dB)

º General

Dimensions (WtHtD) 254k422k260 mm

Mass 6.0 kg

CENTER SPEAKER [SC-EH760]

Type 2 way, 2 speakers

Speaker

Woofer 10 cm cone type

Tweeter 6 cm cone type

Impedance 8 ­

Input power (Music) 120 W

Output sound pressure level 85 dB/W (1.0 m)

Crossover frequency 4 kHz

Frequency range 75 Hz–22 kHz (j16 dB)

º General

Dimensions (WtHtD) 250k121k147 mm

Mass 1.6 kg

SURROUND SPEAKER [SC-EH760]

Type 1 way, 1 speaker

Speaker

Full range 8 cm cone type

Impedance 8 ­

Input power (Music) 60 W

Output sound pressure level 84 dB/W (1.0 m)

Frequency range 120 Hz–20 kHz (j16 dB)

º General

Dimensions (WtHtD) 170k106k118 mm

Mass 0.9 kg

Note

Mass and dimensions are approximate.

digital spectrum analyzer.
