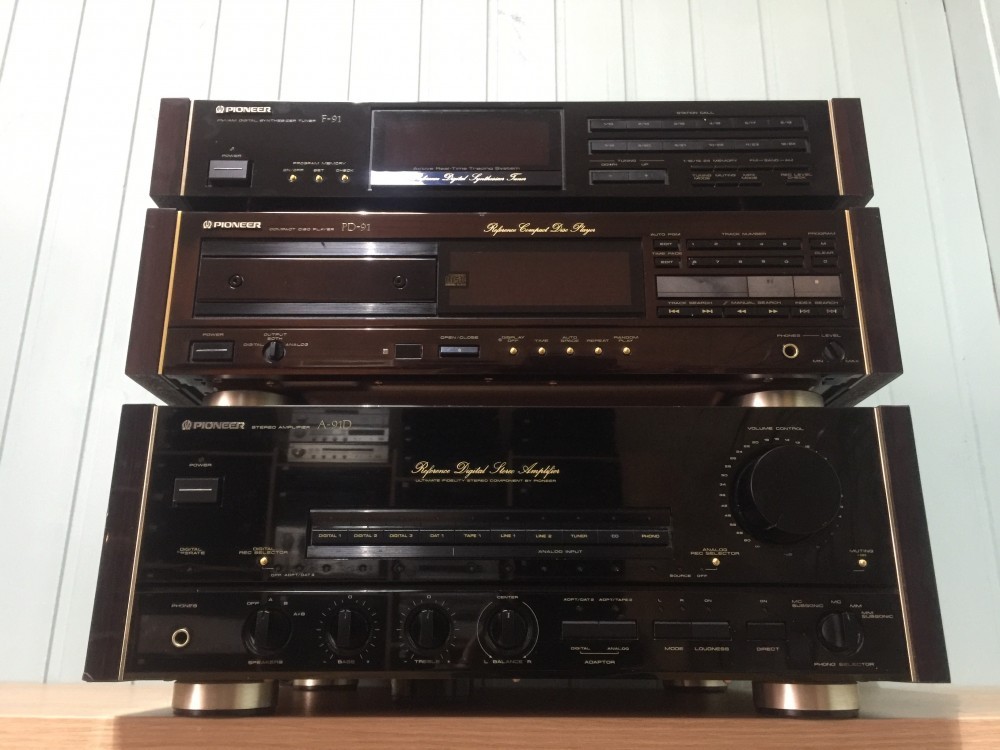

Linie Pioneer A91D cu CD Player PD 91, Tuner F 91

 Linie Pioneer HiEnd compusa din:


Amplificator Pioneer A91D: 8 intari, 4 iesiri, intrari optice si coaxiale, 1000 W consum din retea, made in Japan, impedanta 4-16 ohmi, 2 transformatoare, 12 tranzistori - 6 finali pe canal, sasiu cuprat, selector phono, senzor de telecomanda, finisaj lucios, laterale din lemn, arata si functioneaza foarte bine.

PIONEER A-91D

Stereo Integrated Amplifier (1988)

Specifications

Power output: 120 watts per channel into 8Ω (stereo)

Frequency response: 1Hz to 150kHz

Total harmonic distortion: 0.003%

Damping factor: 60

Input sensitivity: 0.25mV (MC), 2mV (MM), 150mV (line)

Signal to noise ratio: 83dB (MC), 95dB (MM), 109dB (line)

Output: 150mV (line)

Digital inputs: coaxial, optical

Dimensions: 457 x 475 x 173mm

Weight: 29.2kg

Year: 1987

Cd Player Pioneer PD 91 - un superb cd player, mufe aurite, finisaj urushi, acces direct, optical, laterale de lemn, negru.

Frequency response : 2Hz...20Khz (± 0,3dB)
S/N ratio : 114dB (EIAJ)
Dynamic range : 99dB (EIAJ)
Channel separation : 109dB (EIAJ)
Wow & flutter : ± 0,001% peak (EIAJ)
THD : 0,0015% (EIAJ)
Output voltage : 2V (± 0,5V ; EIAJ/RMS)
PC : 29W
Dimensions : 45,8 x 12,9 x 42,5cm
Weight : 11,7kg.
Export version of the japanese PD-3000, built as lavishly as can be and from the last days of hifi's golden years.

If the 18bit digital-to-analogue converters are now a bit dated, the mechanical integrity and minutious care of the smallest details are, today, completely unbelievable :
all-copper chassis, non-resonating honeycombplates, eleven regulators and sixteen power supplies, copper/resin laminated mechanism base, large magnetic disc clamper, wear-resistant loading tray, ceramic supports, Class Abuffer amps - and more.
Read the TECH1 section for all the details !

It should be noted that the PD-3000 original sports a completely different audio board and has two external power transformers - I don't know if this is related to Pioneer's hesitation between its own d/a chips or Burr-Brown's for the PD-91 and PD-93...
Both ended up with Pioneer's own converters - but maybe not in Japan ?

Anyway - only Philips in Japan (LHH series), Sony and Pioneer kept so consistant with the build-quality of their digital sources throughout the 1980s and 1990s. All this is now gone and CD itself will vanish in the forseeable future...

But the PD-91 and its PD-5000 later elder (aka PD-93) are good reminders of a time when true craftsmanship still was part of this industry.

The PD-93 remained Stereoplay's reference player for a long while, only to be dislodged from that spot by Sony's Pulse-based CDP-X777ES in 1992.

Disc format: CD
Digital converter: 2 x PCM65P
CD Mechanism: PWY1004
Frequency response: 2Hz to 20kHz
Dynamic range: 99dB
Signal to Noise Ratio: 114dB
Channel separation: 109dB
Total harmonic distortion: 0.0015%
Line output: 2V
Digital outputs: coaxial, optical
Dimensions: 458 x 425 x 129mm
Weight: 11.7kg

Tuner Pioneer F 91 - Made in Japan, afisaj mare, negru, cautare manuala si automata.

Pioneer's Digital Direct Decoder Type IV
MPX Noise Reduction
Wide-Dynamic-Range Front End
Spectrum Simulated Stereo (SSS)
FDNR Low-Pass Filter
S-MPX
40 AM/FM Station Presets
Urushi Finish with Wood Side Panels
A link to the manual free if you join:

Size:18"W x 12.5"D x 4"H, Serial # 00571. weight is about 12 lbs. unit is 110 volt.
