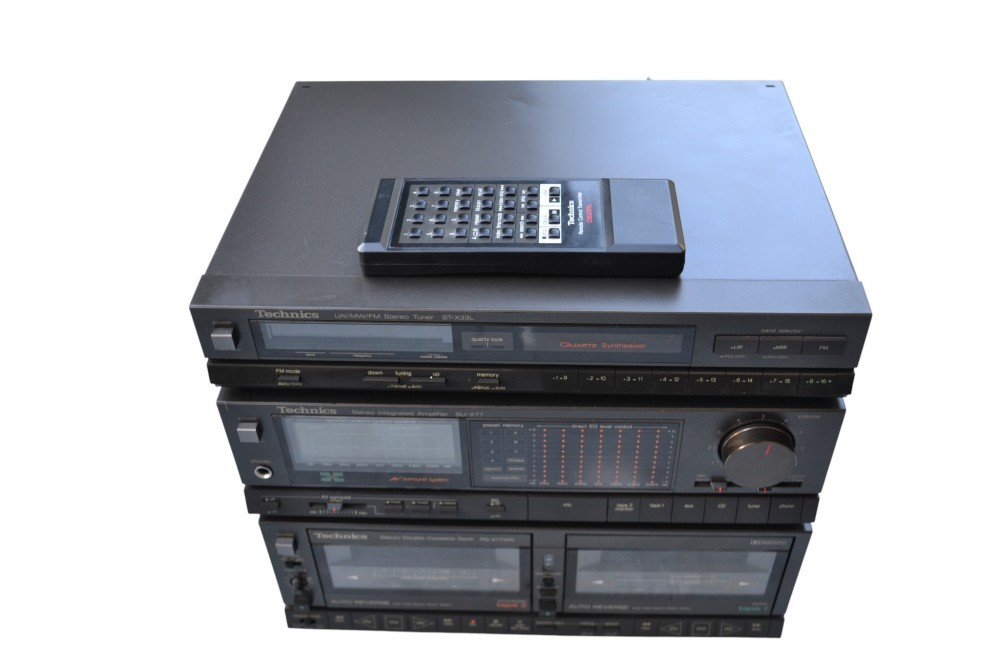

Linie Technics SU X 77 cu telecomanda

  Linie Technics SU X 77 cu telecomanda compusa din :

 -Amplificator Technics SU X 77 : 5 intrari, 4 iesiri, egalizator, mufa casti, made in JApan.

 -Deck dublu Technics RS X 77 W: autoreverse, counter, input level, made in japan.

 -Tuner Technics ST X 33 L:Quartz synthetizer, afisaj, 16 memorii, FM mode, made in Japan.

SPECIFICATIONS

(DIN 45 500)

M@ AMPLIFIER SECTION

1 kHz continuous power output

Graphic equalizer range of variation Spectrum analyzer dynamic range Output voltage

REC OUT Channel balance, AUX 250 Hz~6,300 Hz Channel separation, AUX 1 kHz Headphones output level and impedance

+10 dB 20 dB

150 mV

+1.0 dB

60 dB

420 mV/3300

both channels driven 2 <x 50W (8Q) Total harmonic distortion Load impedance rated power at 1 kHz 1% (8Q) MAIN 8BQ~16Q half power at 1 kHz 0.05% (80) SURROUND 8Q~160 Damping factor 40 (802) Input sensitivity and impedance M@ GENERAL PHONO 2.5 mV/47kQ TUNER, AUX, CD 150 mV/22kQ Power consumption 235 W TAPE 1, 2 150 mV/22kQ Power supply PHONO maximum input voltage (1 kHz, RMS) 120 mV For Australia and United Kingdom S/N AC 50 Hz/60 Hz, 240V rated power (80) For continental Europe AC 50 Hz/60 Hz, 220V PHONO 72 dB (IHF, A: 73 dB) For others AC 50 H2/60 Hz, 110V/127V/220V/240V TUNER, AUX, CD, TAPE 1, 2 84 dB (IHF, A: 83 dB) Dimensions (WxHxD) 315 x99 x 252 mm Fre Weight 4.8 kg quency response PHONO RIAA standard curve +0.8 dB (30 Hz~15 kHz) Note:

TUNER, AUX, CD, TAPE 1, 2

10 Hz~70 kHz (—3 dB)

Graphic equalizer/spectrum analyzer frequency

CONTENTS

63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 KHz, 12.5 kHz

Total harmonic distortion is measured by the digital spectrum analyzer (H.P. 3045 system).

Specifications are subject to change without notice for furt
