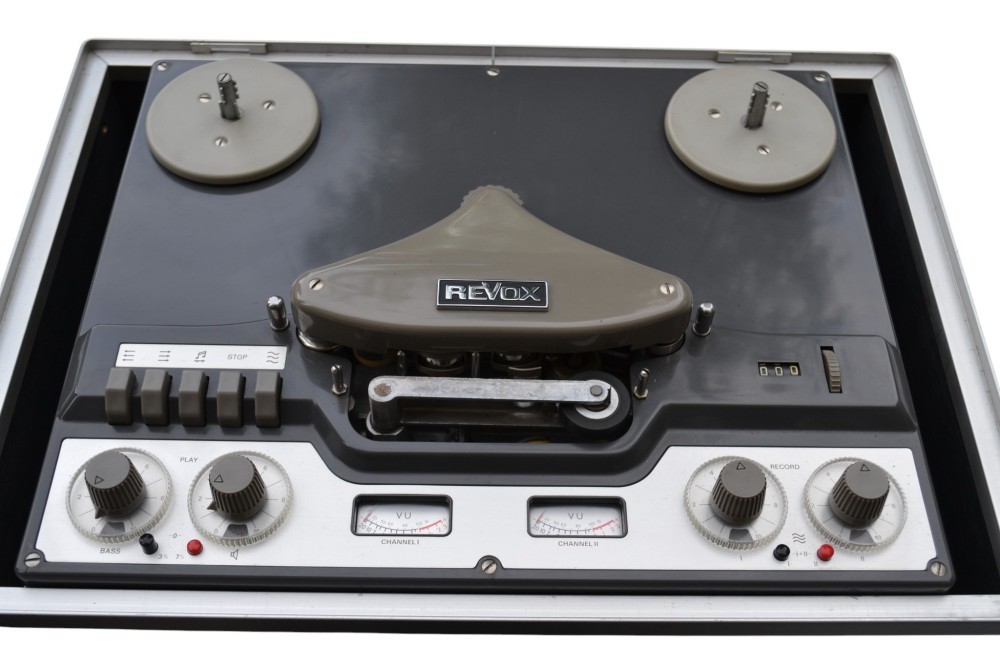

Magnetofon Revox G 36

Magnetofon Revox G 36: 2 piste, made in Germany, counter, vu metre iluminate, carcasa si capac originale, made in Switerland, . Poze reale.

• Manufacturer: Revox
• Model: G 36
• Type: Tape case
• Years of manufacture: Early 1963 to early 1967
• Made in: Germany / Switzerland
• Colour: grey
• Remote control: -
• Power supply
  • 110 V, 125 V, 145 V, 220 V, 240 V, AC, 50Hz

60 Hz version available for USA

• Power consumption: 120 W
• Dimensions: 480 x 340 x 300 mm (WHT)
• Weight: approx. 20 kg
• New price approx:
  • Chassis version: 1'295 SFr.
  • Case version: 1'395 SFr.
    • + GEMA: 43 DM

Connections

• Number of inputs:
  • Cinch: Micro 3 mV at 1 MΩ

Cinch: Radio/Phono 50 mV at 1 MΩ

• • Cinch: Diode: 3 - 50 mV at 47 kΩ
• Number of outputs:

Specifications

• Max. bobbin diameter: 26,5 cm
• Drive: 3 motors
  • Three-motor device, equipped with Pabst external rotor motors.
  • Pole-changing synchronous capstan motor for 19,05 and 9,5 cm/sec.(direct drive)
• Heads: 3, 1 x record, 1 x playback, 1 x erase
• Tracks: 2-track STEREO or 4-track STEREO
• Tape speeds
  • 9.5 cm/sec, 19 cm/sec.
• Slip:
  • Slip-free capstan shaft driven by a mechanical filter.
• Synchronisation fluctuations: < 0.2%
• Pitch fluctuations
• Overall frequency response:
  • 9.5 cm/s: 40 Hz - 12,000 Hz, +2 / -3 dB.

19 cm/s: 40 Hz - 15,000 Hz , +2 / -3 dB

• • 19 cm/s: 40 Hz - 18,000 Hz , +2 / -3 dB (According to other data).
• Signal-to-noise ratio:
• Spurious signal-to-noise ratio:
  • > 55 dB for 2-track

52 dB for 4-track

• Noise-to-noise ratio:
  • 9.5 cm/s / 2 track: 53 dB
  • 9.5 cm/s / 4 track: 50 dB

19 cm/s / 2 track: 55 dB

• • 19 cm/ s / 4 track: 52 dB
• Distortion:
• Equalization:
• Crosstalk attenuation:
• Cancellation attenuation:
• Premagnetization and cancellation frequency:
• Oscillator: 70 kHz, push-pull.
