Magnetofon Telefunken M Studio 4

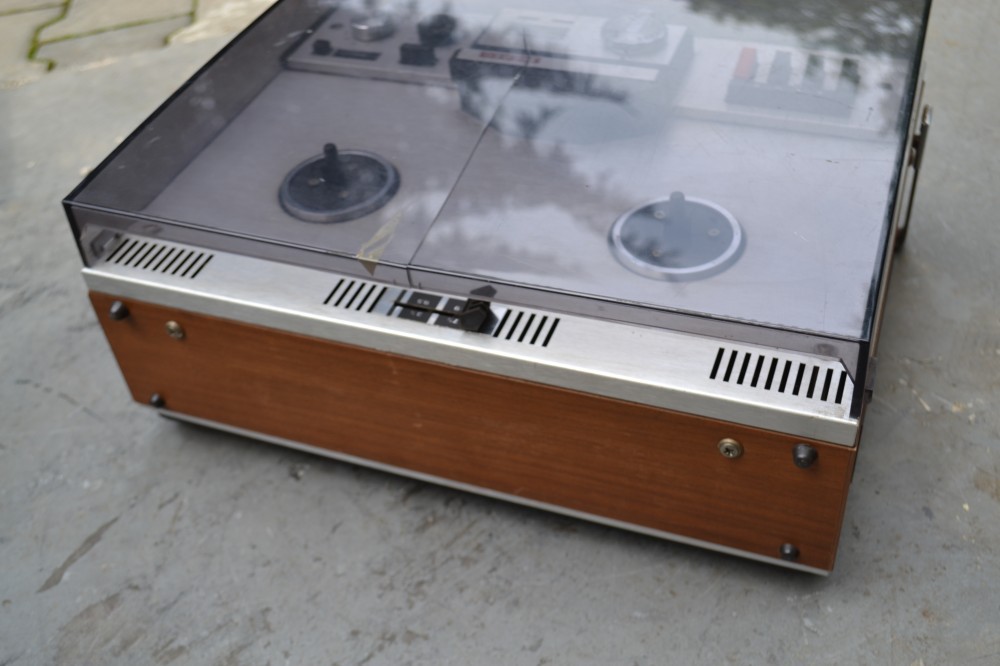

  Magnetofon Telefunken M Studio 4: capac fisurat, nu face REC, counter, size 9.5/19, HiFi stereo, tone, volume, made in West Germany, poze reale.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Magnetophon 203 studio 4 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch

• Notes
• Stereo-Vierspur. Geschwindigkeiten: 9,5/19 cm/s; Spulen-Ø 18 cm; Frequenzbereich bei 19 cm/s: 40-18000 Hz; Stromversorgung auf 117 V/60 Hz umschaltbar.Es gibt einen Ersatzmotor von Telefunken.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Literature/Schematics (1)
• -- Original-techn. papers.
