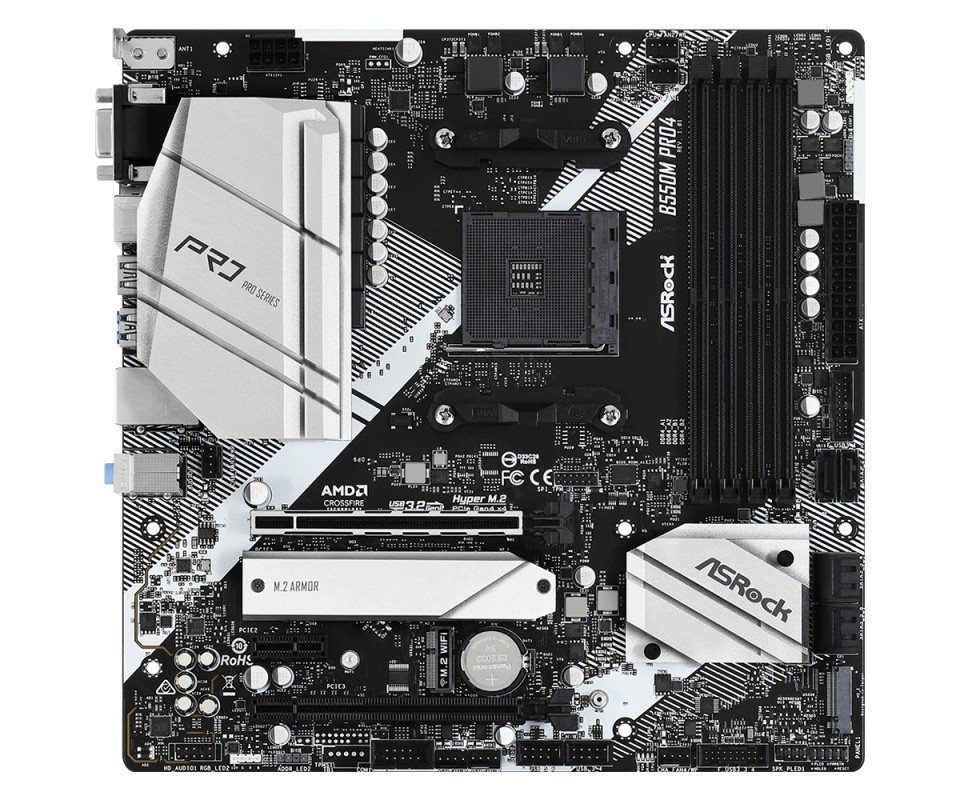

MB ASROCK B550M PRO4 AM4

Chipsetul AMD B550 face PCIe® 4.0 posibil pentru toti cei care isi doresc performanta, latime de banda si viteza superioare. Pregatit pentru procesoarele AMD Ryzen™ de generatia a 3-a si ulterioare.

• Component for: PC
• DisplayPort version: 1.4
• DisplayPorts quantity: 1
• VGA (D-Sub) ports quantity: 1
• Wi-Fi: No
• HDCP: Yes
• Ethernet LAN: Yes
• PCI Express x16 (Gen 4.x) slots: 1
• PCI Express x1 (Gen 3.x) slots: 1
• DVI-D ports quantity: 0
• DirectX version: 12.0
• RAID support: Yes
• Ethernet interface type: Gigabit Ethernet
• Audio output channels: 7.1 channels
• Supported storage drive types: HDD & SSD
• Memory slots type: DIMM
• Unbuffered memory: Yes
• Supported storage drive interfaces: M.2, SATA III
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• PS/2 ports quantity: 1
• Motherboard form factor: micro ATX
• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• TPM connector: Yes
• 12V power connector: Yes
• Number of COM connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Microphone in: Yes
• Number of memory slots: 4
• USB 2.0 connectors: 2
• EPS power connector (8-pin): Yes
• Motherboard chipset family: AMD
• ECC сompatibility: ECC & Non-ECC
• Front panel connector: Yes
• Number of chassis fan connectors: 4
• RGB LED pin header: Yes
• Number of M.2 (M) slots: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• Windows operating systems supported: Windows 10 x64, Windows 11 x64
• RAID levels: 0, 1, 10
• PCI Express x16 (Gen 3.x) slots: 1
• Wake-on-LAN ready: Yes
• PC health monitoring: CPU, Fan, Temperature, Voltage
• Processor socket: Socket AM4
• Supported memory types: DDR4-SDRAM
• LAN controller: Realtek RTL8111H
• Supported processor sockets: Socket AM4
• Number of displays supported: 3
• Maximum number of SMP processors: 1
• Drivers included: Yes
• Maximum resolution: 5120 x 2880 pixels
• Number of Parallel ATA connectors: 0
• Compatible processor series: AMD Ryzen 3000 Series
• CPU încorporat: No
• Supported memory clock speed (max): 4733 MHz
• Supported memory module capacities: 4GB, 8GB, 16GB, 32GB
• Number of SATA III connectors: 0
• ACPI version: 5.1
• System Management BIOS (SMBIOS) version: 2.3
• Certification: FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
• Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX
• Number of SATA II connectors: 6
• Maximum internal memory: 128 GB
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• HDMI ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Memory channels: Dual-channel
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Motherboard chipset: AMD B550
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• Audio Chip: Realtek ALC1200
• Cables included: SATA
• Width: 244 mm
• Depth: 244 mm
• Height: 70 mm
• Weight: 465 g
• Harmonized System (HS) code: 84733020
• Processor manufacturer: AMD
• PCI: 0
• Serial-or-Paralel: No/No
