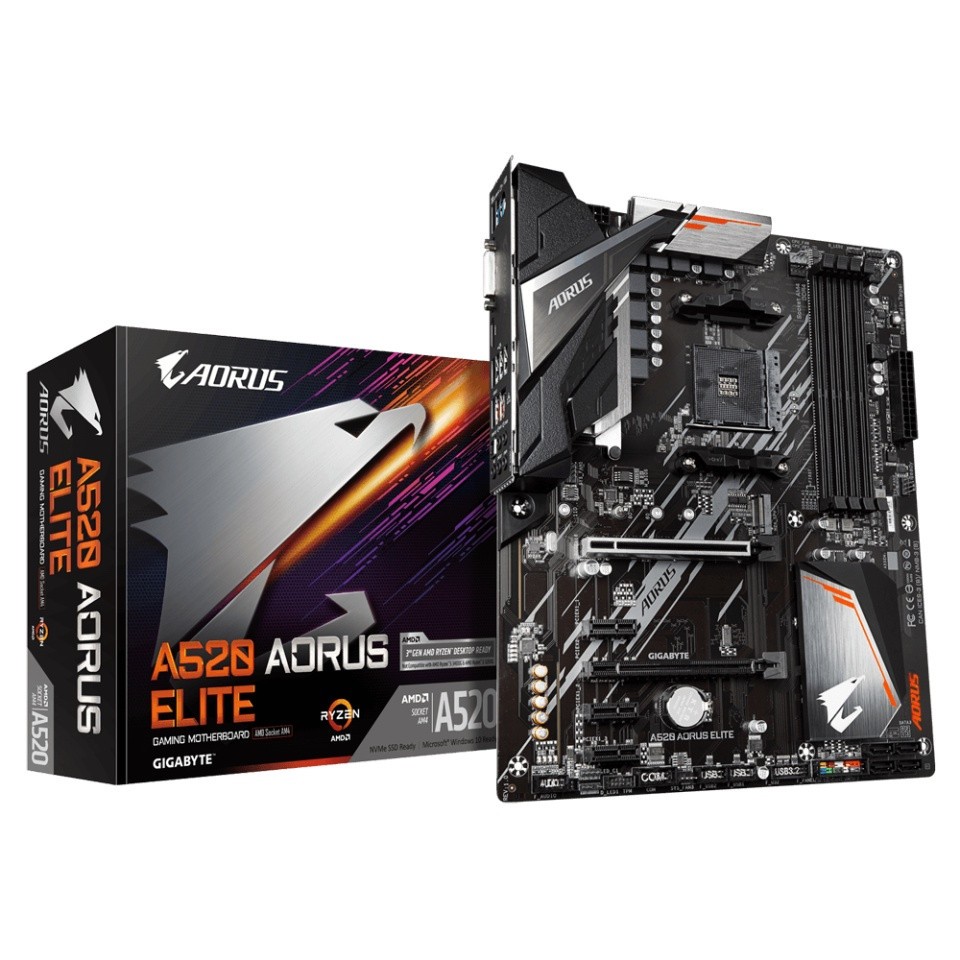

MB Gigabyte A520 AORUS ELITE AM4

Te poti baza pe chipset-ul AMD A520 care it ofera performanta plung-and-play si conectivitatea de care ai nevoie.Nucleul AORUS este inspirat de natura agresiva a soimului si priceperea de vanatoare. Soimul isi foloseste unghiile ascutite pentru a lovi rapid prada cu eficienta si precizie exceptionale, calitati care sunt exemplificate in detaliile fine ale designului AORUS.GIGABYTE UD utilizeaza un MOSFET digital PWM + Low RDS (on) MOSFETs pentru a sprijini procesoarele AMD Ryzen™ 3 gen, oferind o precizie incredibila in furnizarea puterii la componentele cele mai infometate si sensibile la energie de pe placa de baza, precum si la furnizarea performantei imbunatatite a sistemului si la scalabilitatea hardware finala.

• Component for: PC
• Warranty period: 3 year(s)
• HDCP: Yes
• Ethernet LAN: Yes
• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)
• Ethernet interface type: Gigabit Ethernet
• Audio output channels: 7.1 channels
• Memory slots type: DIMM
• Unbuffered memory: Yes
• Supported storage drive interfaces: M.2, SATA III
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• PS/2 ports quantity: 1
• BIOS type: UEFI AMI
• TPM connector: Yes
• Number of memory slots: 4
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• EPS power connector (8-pin): Yes
• Motherboard chipset family: AMD
• ECC сompatibility: ECC & Non-ECC
• Front panel connector: Yes
• RGB LED pin header: Yes
• Motherboard form factor: ATX
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• S/PDIF out port: Yes
• RAID levels: 0, 1, 10
• Batteries included: Yes
• Maximum resolution: 4096 x 2160 pixels
• Clear CMOS jumper: Yes
• ACPI version: 5.0
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Lithium weight per battery: 0.07 g
• Battery type: CR2032
• Serial port headers: 1
• PC health monitoring: Fan, Temperature, Voltage
• Processor socket: Socket AM4
• BIOS memory size: 128 Mbit
• Supported memory types: DDR4-SDRAM
• Supported processor sockets: Socket AM4
• PCI Express x16 slots: 1
• Number of M.2 (M) slots: 1
• Number of storage drives supported: 5
• Windows operating systems supported: Windows 10 x64
• Compatible processor series: AMD Ryzen 3000 Series
• CPU încorporat: No
• Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
• DVI-D ports quantity: 1
• Power fan connector: Yes
• PCI Express x1 slots: 3
• Headphone outputs: 5
• Maximum internal memory: 128 GB
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• HDMI ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Number of battery cells: 1
• Battery weight: 3 g
• Memory channels: Dual-channel
• Motherboard chipset: AMD A520
• USB 2.0 ports quantity: 4
• Audio Chip: Realtek ALC1200
• Package width: 335 mm
• Package height: 80 mm
• Package weight: 1.35 kg
• Width: 305 mm
• Depth: 244 mm
• Height: 35 mm
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Bundled software: Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility
• Harmonized System (HS) code: 84733020
• Package depth: 270 mm
• Processor manufacturer: AMD
• PCI: 0
• Serial-or-Paralel: No/No
