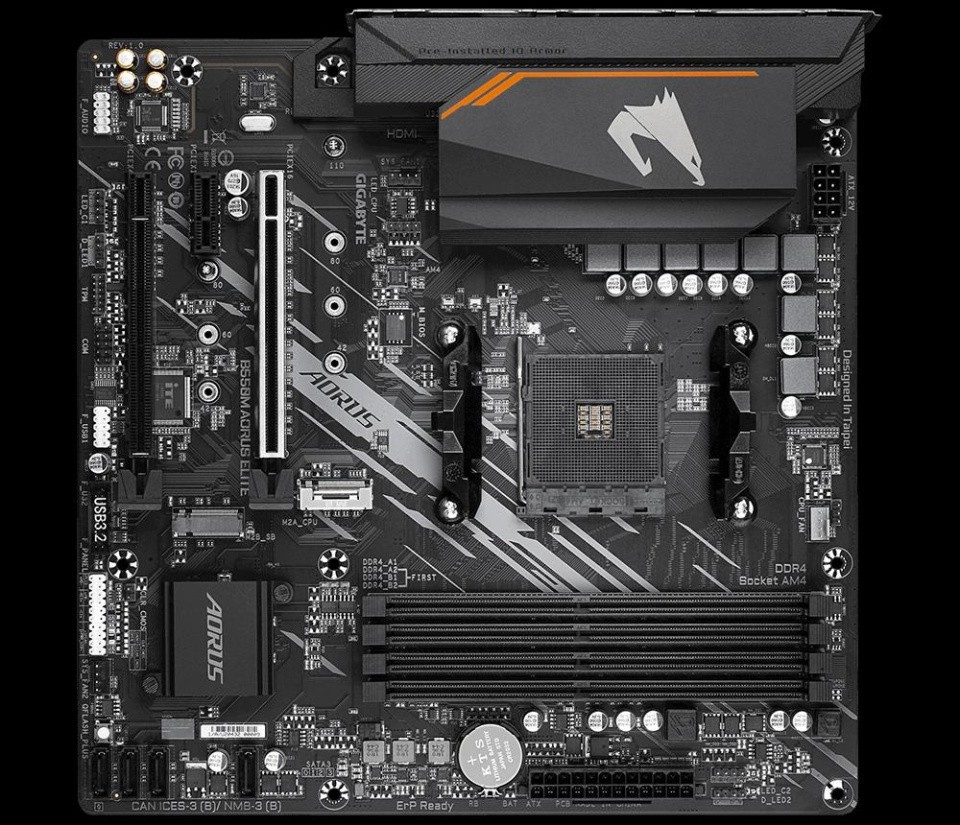

MB GIGABYTE AMD B550M AORUS ELITE

Pentru a sprijini pe deplin cele mai recente procesoare AMD Ryzen ™ de la cel de-al 3-lea gen, placile de baza B550 sunt echipate cu solutia de putere finala, care este adevarata, digitala si cu mai multe faze. Dupa nenumarate experimente si testari, GIGABYTE prezinta placile de baza B550 imbatabile pentru entuziasti.

• Component for: PC
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
• Headphone outputs: 1
• Warranty period: 3 year(s)
• VGA (D-Sub) ports quantity: 0
• Wi-Fi: No
• HDCP: Yes
• Ethernet LAN: Yes
• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)
• PCI Express x1 slots: 1
• PCI Express x1 (Gen 3.x) slots: 1
• Parallel processing technology support: Not supported
• DirectX version: 12.0
• Ethernet interface type: Gigabit Ethernet
• Audio output channels: 7.1 channels
• Supported storage drive types: HDD & SSD
• Number of M.2 (M) slots: 2
• Memory slots type: DIMM
• Unbuffered memory: Yes
• Supported storage drive interfaces: M.2, SATA III
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 2
• PS/2 ports quantity: 1
• Motherboard form factor: micro ATX
• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• Number of HDDs supported: 4
• TPM connector: Yes
• 12V power connector: Yes
• Number of storage drives supported: 6
• USB 2.0 connectors: 1
• Microphone in: Yes
• Number of memory slots: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA II connectors: 0
• Motherboard chipset family: AMD
• ECC сompatibility: ECC & Non-ECC
• Front panel connector: Yes
• RGB LED pin header: Yes
• Power source type: ATX
• Clear CMOS button: Yes
• Windows operating systems supported: Windows 10 x64, Windows 11 x64
• RAID levels: 0, 1, 10
• Batteries included: Yes
• Maximum resolution: 4096 x 2160 pixels
• Clear CMOS jumper: Yes
• ACPI version: 5.0
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Lithium weight per battery: 0.07 g
• Battery type: CR2032
• Serial port headers: 1
• Total number of SATA connectors: 4
• Digital audio optical out: 1
• Processor socket: Socket AM4
• Supported memory types: DDR4-SDRAM
• Supported processor sockets: Socket AM4
• Serial ports quantity: 1
• Number of displays supported: 2
• Maximum number of SMP processors: 1
• PCI Express x16 slots: 1
• Drivers included: Yes
• USB connector type: USB Type-A
• Maximum internal memory supported by processor: 128 GB
• Number of Parallel ATA connectors: 0
• eSATA ports quantity: 0
• Firewire (IEEE 1394) ports: 0
• CPU încorporat: No
• Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
• Supported memory clock speed (max): 4733 MHz
• Discrete graphics support: Yes
• DVI-D ports quantity: 1
• Power fan connector: Yes
• PCI Express x4 slots: 1
• PC health monitoring: CPU, Fan, LED, Power supply, Temperature, Voltage
• Supported memory module capacities: 1GB, 2GB, 4GB, 16GB, 32GB
• Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
• Maximum internal memory: 128 GB
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• HDMI ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Number of battery cells: 1
• Battery weight: 3 g
• Memory channels: Dual-channel
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• Motherboard chipset: AMD B550
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• Audio Chip: Realtek ALC887
• Cables included: SATA
• Package width: 265 mm
• Package height: 65 mm
• Package weight: 1.27 kg
• Width: 244 mm
• Depth: 244 mm
• Height: 35 mm
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Product colour: Brown
• Bundled software: Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility
• Harmonized System (HS) code: 84733020
• Package depth: 265 mm
• Processor manufacturer: AMD
• Cooling type: Active
• PCI: 0
• Serial-or-Paralel: No/No
