MH-Tiny ATTINY88 micro development board 16Mhz / ATTINY85 upgraded (a.1445)
Livrare gratuita la comenzile de 180 lei
Disponibilitate:
In stoc
1 disponibil
Primesti 25 puncte in aplicatie
Produs:
Nou, Fără garanție
Politica de retur:
Acest produs poate fi returnat in 3 zile
Detalii
Plata:
-
Ramburs cu Garantia de Livrare
Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.
- Online
Vandut de:
98.21% pozitive
(din 195
)
)
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Produsul este nou!
Produsul este la fel cu cel prezentat in fotografii!
Specificații în limba engleză:
Produsul este la fel cu cel prezentat in fotografii!
Specificații în limba engleză:

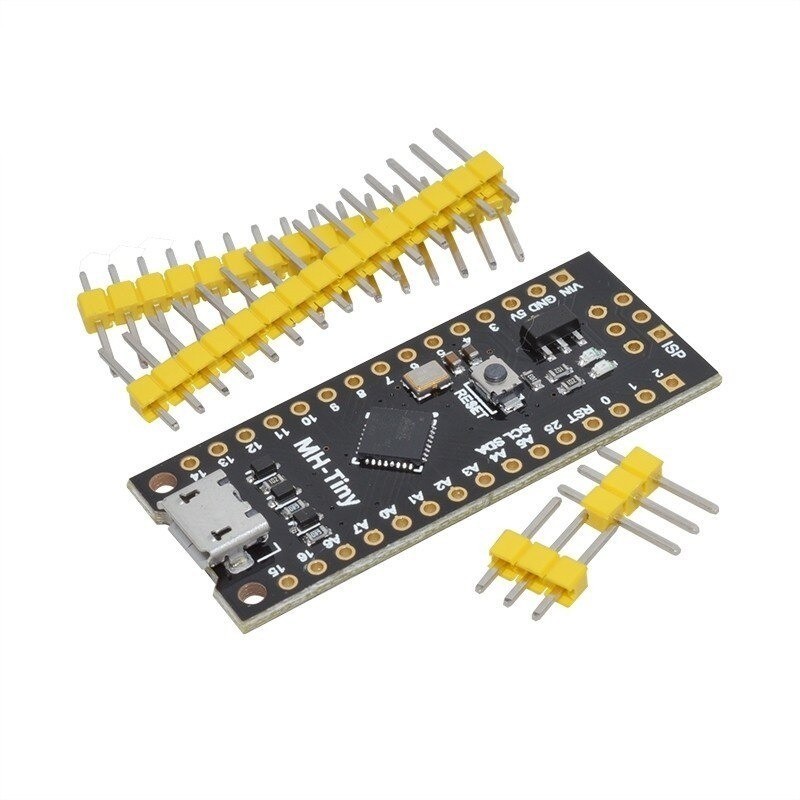

The MH-ET LIVE Tiny88(16.0Mhz) based
microcontroller development board similar to the Arduino
line, only cheaper, smaller, and a bit less powerful. With the
ability to use the familiar Arduino IDE the MH-ET
LIVE Tiny88(16.0Mhz) is a great board to jump into
electronics, or perfect for when an other board is too big or too
much.The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled
except for the headersincluded and easy to solder them by
yourself.
Specs:
Support for the Arduino IDE 1.0+
(OSX/Win/Linux)
1. Power via USB or External
Source - 5v or 7-35v (12v or less recommended,
automatic selection)
2. On-board 500ma 5V Regulator
3. Built-in USB
4. 26 I/O Pins (2 are used for USB only if
your program actively communicates
over USB, otherwise you can use all 6
even if you are programming via USB)
5. 8k Flash Memory (about 6k after
bootloader)
6. I2C and SPI
7. 26-PWM (26 pins with Software PWM,only
two(D9,D10) with hardware PWM )
8. ADC on 8 pins
9. Power LED and Test/Status
LED
10. Size(mm):44.5x18.3x3

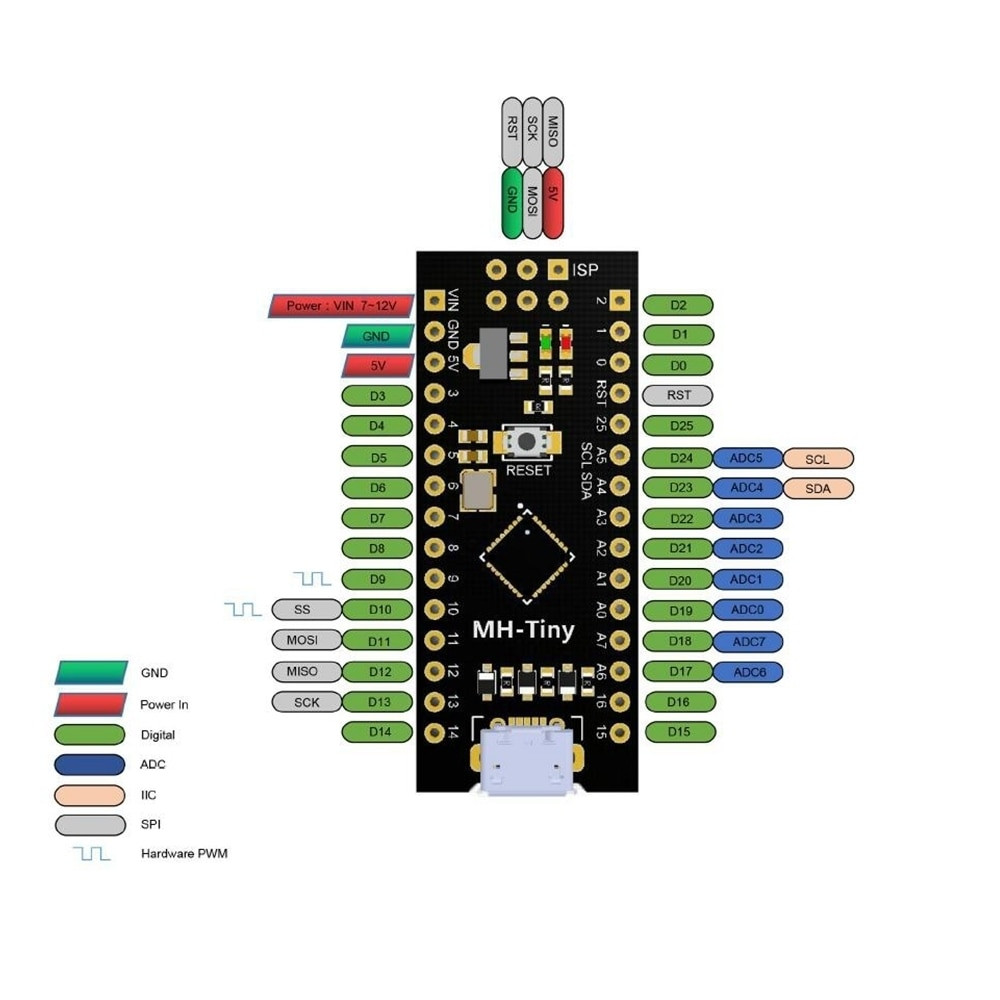

PinOut:
Installation Instructions:
First download the appropriate Arduino package
at the
Arduino.cc website:
If using Arduino 1.6.6 or higher and windows -
you will need to download and
install the drivers manually. Download,
unzip and run “Install Drivers” (on
32bit systems) or “DPInst64” (on 64bit
systems). The driver files are
located here:
2.0a4.rar
Install or Unzip the Arduino
application.
Run the Arduino application.

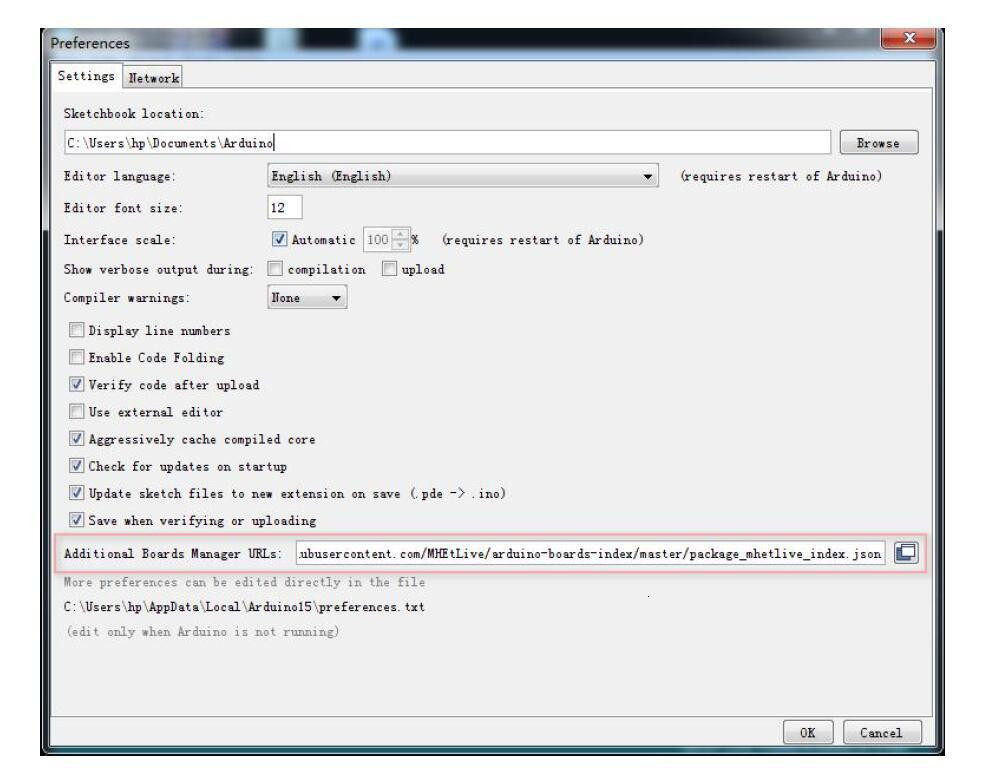

In the Arduino application go to the “File” menu
and select “Preferences”,In the box
labeled “Additional Boards Manager URLs” enter:
ackage_mhetlive_index.json and
click OK;
Go to the “Tools”
menu and then the “Board” submenu -
select “Boards Manager” and then from the
type drop down select
“Contributed”:
Select the “MH-ET LIVE
Boards” package and click the
“Install” button.
You\'ll see the download progress on the bottom
bar of the “Boards
Manager” window, when
complete it will show “Installed” next to
that item on the list.
WINDOWS USERS: When complete the install with
pop up a Driver Install
Wizard window, please click
“Next” on this Window to
install the drivers for MH-ET LIVE
Boards (If you already have them installed, this
installer will update them and install any
that are missing).
With the install complete, close the
“Boards Manager” window and select
the MH-ET LIVE Boards
“MH-ET LIVE
Tiny88(16.0Mhz)” from the
Tools→Boards menu.

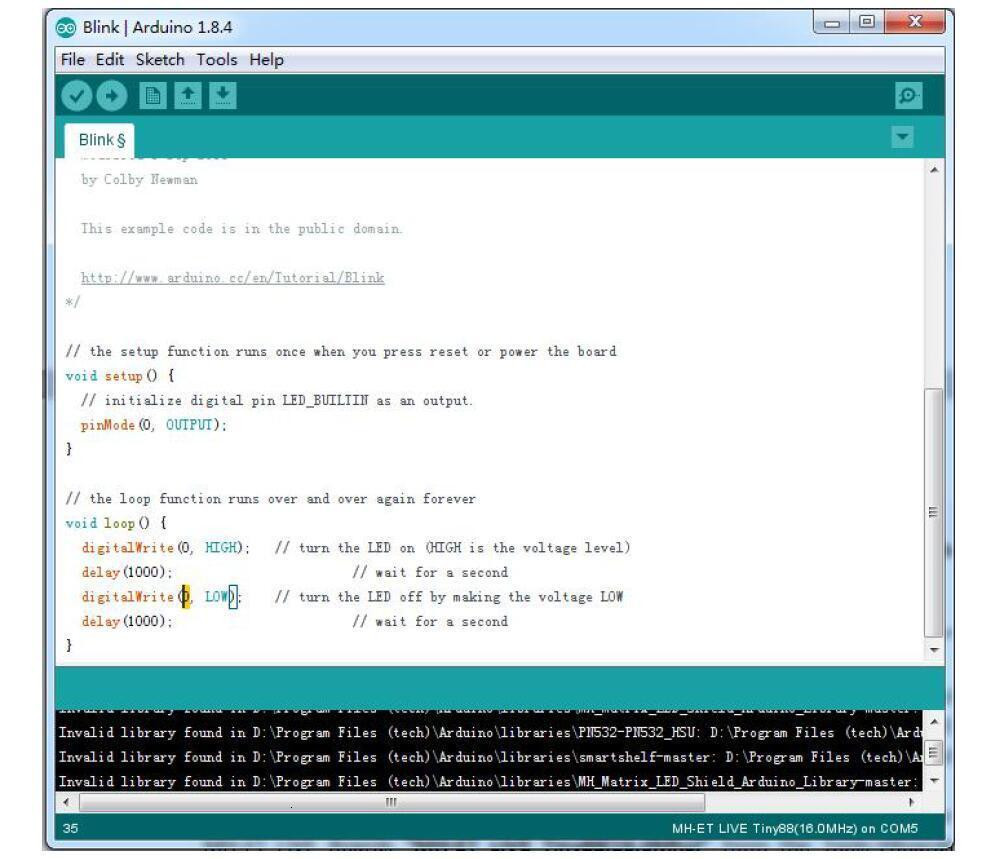

Choose the example that comes with the Arduino
IDE: Select the development board as MH-ET
LIVE Tiny88 in the toolbar, open the program in File
>>Example >> Basic>>Blink, change
the port 13 in the program to 0. Port,
compile and download into
the MH-ET LIVE
Tiny88(16.0Mhz) according to the
abovemethod, it can be seen that the onboard LED light
flashes according to the
frequency specified by the program.(note:
When downloading the program,
do not connect the module
first, wait for the prompt to insert the module
after compiling, then plug it in and
wait for the automatic download to complete).
'
Pachetul conține:
• 1 bucată x MH-Tiny ATTINY88 micro development board 16Mhz (cod produs: a.1445)
• 1 bucată x MH-Tiny ATTINY88 micro development board 16Mhz (cod produs: a.1445)
