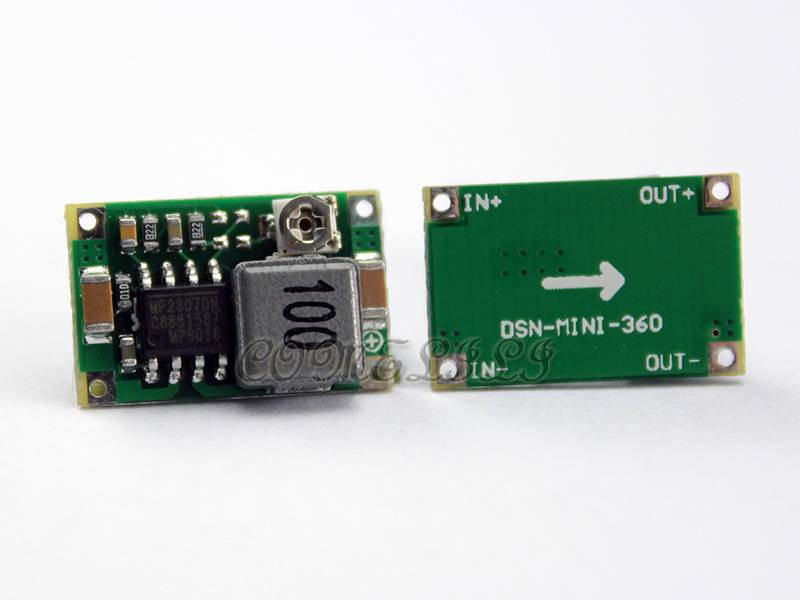

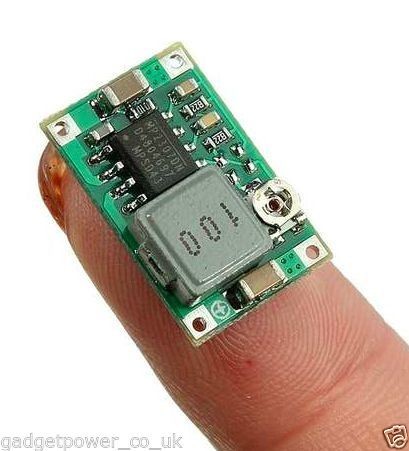

Mini sursa in comutatie max 3A step down

Specifications:

• 100% brand new and high quality.
• Module Properties: Non-isolated step-down module (BUCK)
• Rectification: Synchronous rectification
• Input voltage: DC 4.75V-20V
• Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
• Output current: Rated current 1.8A (3A MAX, can not be prolonged)
• Output ripple:30mV(no-load)
• Load regulation:±0.5%
• Voltage regulation:±2.5%
• Operating Temperature: Industrial (-40℃ ~ +85℃)
• Short circuit protection: No(Please do not short-circuit)
• Input Reverse protection: No(Can not be reversed)
• NOTE:This can't be used to step up Voltage. Output voltage is always smaller than input!

Dimension:

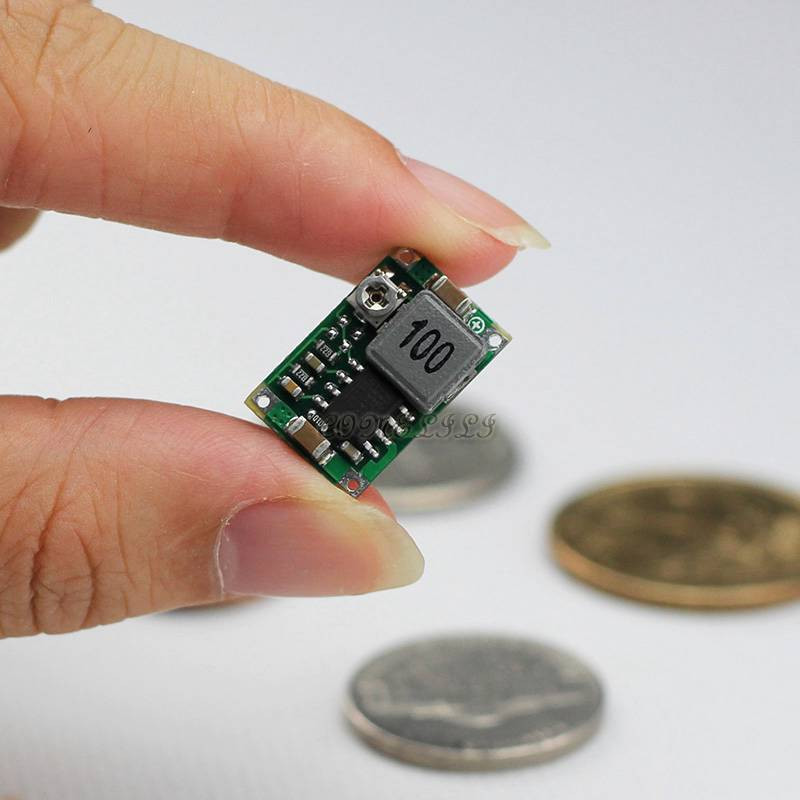

• 17mm*11mm*4mm(L*W*H)/0.67'' * 0.43'' * 0.16'' approx

Item Include:

• 1 * Mini DC-DC Step-down Adjustable Module
