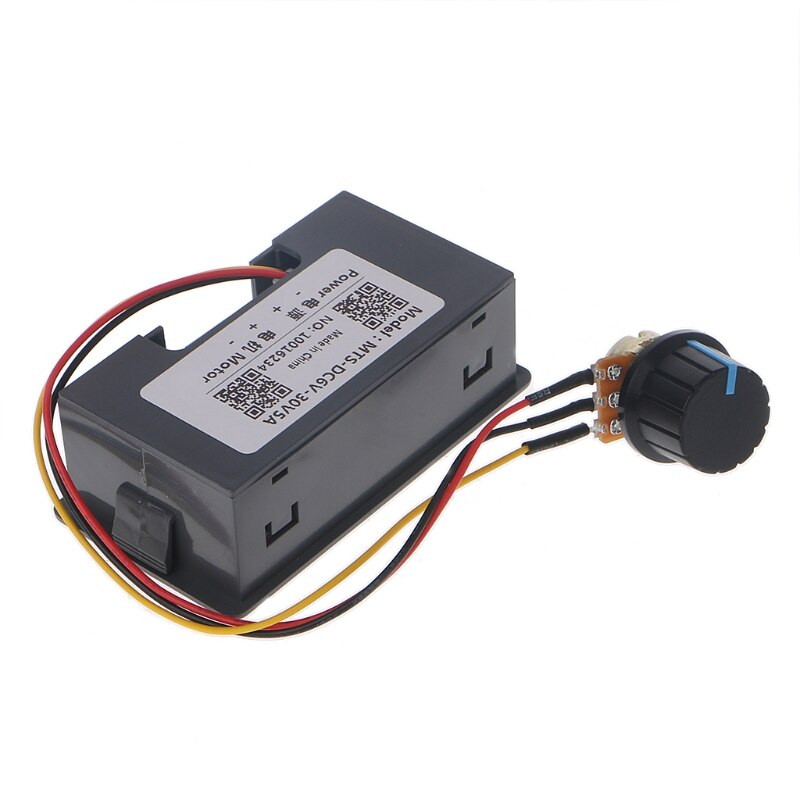

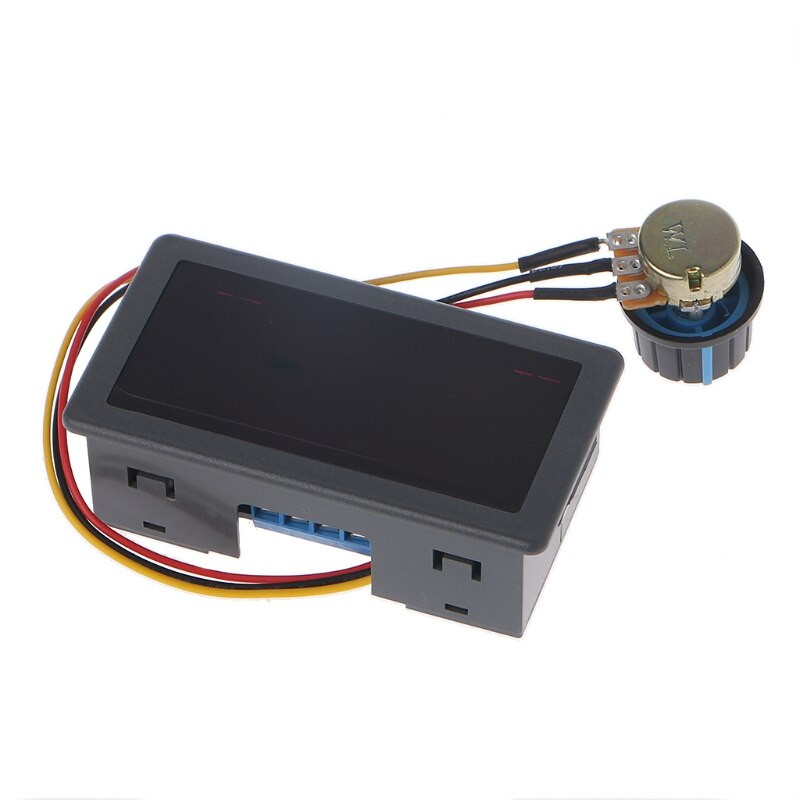

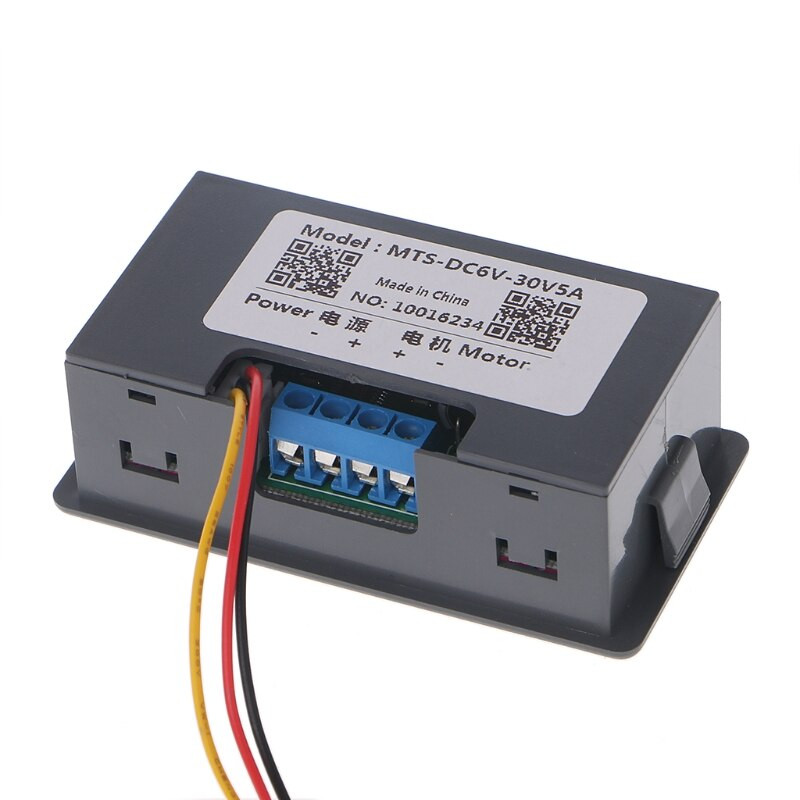

modul controler pwm vitreza motoare display ecran digital DC 6-30V 12V 24V 15A

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Stare produs: Nou

Garanție: Fără garanție

Disponibilitate: - Vezi produse similare

Specificatii

Description:

The Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of 5A to your DC motor or other DC load.
The circuit also includes the function of digital display whose digital tube display the duty ratio

Specifications:

  • Input Voltage: 6V-30V DC
  • Rated Current 5A (15A MAX, can not be prolonged)
  • Static Current: 0.02A
  • Control Power: 0.01-150 W
  • PWM Frequency: 13 kHz
  • Duty Cycle adjustable: 0%-100%
  • The digital display the duty ratio
  • Panel Size: Approx. 80x42mm/3.15x1.65"
  • Installation Size: 79x39x24mm/3.11x1.54x0.94"
  • Quantity: 1 Pc

Note:
  • Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
  • Due to the difference between different monitors, the image may not reflect the actual color of the item. Thank you!

Package Contents:
  • 1 x Motor Speed Controller
  • No Retail Package
