Modul cu 1 releu 5V, relay, relee, Arduino ESP8266 / ESP-01S (r.211)

ESP8266/ ESP-01S Relay Module / Relay / WIFI 智 ESP8266 ESP-01S Relay Module Relay WIFI Smart Socket

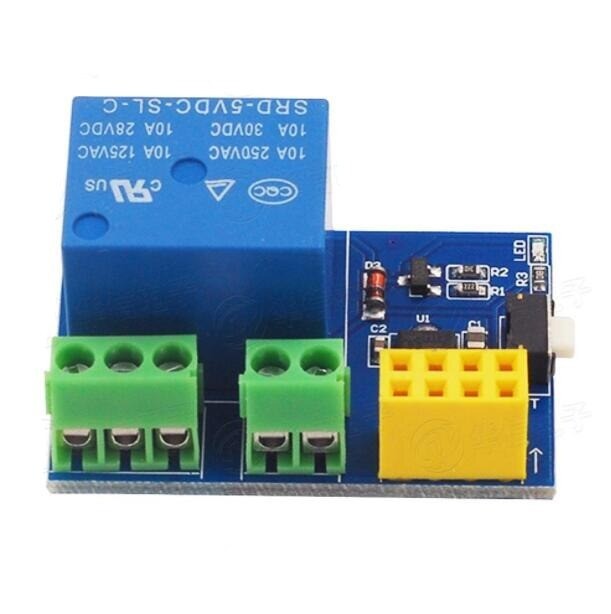

ESP8266 ESP-01S Relay Module Relay WIFI Smart Socket

Version difference:

the new version is exactly the same as the old version, where

1. Bold the traces and pass more current.

2. Support ESP-01 (old version is not supported)

3. Added optocoupler, greatly improved module performance

4. Low level control (old version high level control)

5. Wide voltage input, support DC 5-12V (old version value supports 5V)

This intelligent relay module is independently designed and produced by IOTMCU studio.

It is designed based on ESP-01/01S WIFI module and can be used for DIY's own intelligent switch.

It can provide APP and LUA source programs through remote control of mobile APP.

Ready to use, simple and convenient.


Product parameters:

Product size: 37 * 25mm
Working voltage: DC5V
Communication: WIFI (ESP8266 module)
Transmission distance: maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
Load: 10A / 250VAC 10A / 30VDC, relay pulls 100,000 times

application:

Wiring: Connect the devices to be controlled at the relay terminals, such as lights and fans. . . .

Features:

Module working voltage: DC 5V

Relay load capacity: 10A 250VAC 10A 125VAC 10A 30VDC 10A 28VDC

Shipping is ESP01

Adding an ESP-01S module, this intelligent relay module is based on the ESP-01S WIFI module design, which can be used for DIY's own intelligent switch.

It can be remotely controlled by mobile APP to provide APP and LUA source programs. Ready to use, simple and convenient.
