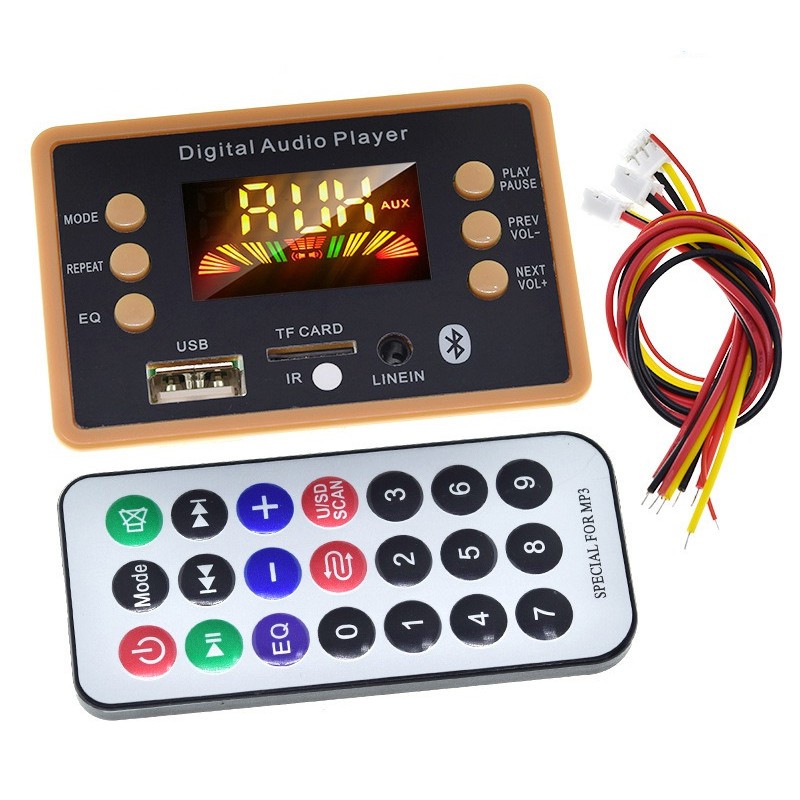

Modul decodor la 5V / 12V cu BLUETOOTH 5.0 cu card microSD MP3 / WMA (DEC610)

Produsul este nou!

Specificații în limba engleză:

Support Bluetooth function (Bluetooth version 5.0) / dual decoding MP3, wma, WAV, FLAC, ape lossless format music / read USB disk / read TF Card / radio FM / external sound source input line in / infrared remote control / power off memory / power supply 5V or 12V (optional);

Main functions

1. Jerry scheme, dual decoding, supporting music in MP3 / wma / WAV / FLAC / ape lossless format

2. Support Bluetooth function, Bluetooth version 5.0;

3. TZT Digital tube display with color screen;

4. Support MMC / SD / MMA and other cards and USB interface (USB disk);

5. Power off memory function;

6. Support infrared remote control operation at a distance of 10m;

7. Support external sound source input line in TZT;

8. Support radio FM and cable receiving frequency band (87.5mhz-108.0mhz);

9. TZT Key: six key multi-directional control, play / prev / next / repeat / EQ / mode;

Key operation details

1. Play key (play / pause): short press play in MP3 status to play / pause, short press in FM status to play / pause, and long press to automatically receive the channel;

2. Prev key (previous song / volume down): in MP3 state, short press prev is the previous song, long press prev is the volume down, and short press in FM state is the upward adjustment of a station number;

3. Next button (next song / speaker up): in MP3 state, short press next to the next song, long press to increase the volume, and short press in FM state to down one station number;We Are The Distributor Of TZT Brand In Hong Kong, China

4. Repeat: Click once in MP3 status to repeat a single song, and click once to cancel the repeat function;

5. TZT EQ: sound field mode, testing 6 kinds of sound quality; (classical) (Jazz) (rock) (bass) (POP) (normal)

6. Mode key (Analog): switch between USB / TF / FM / audio input / Bluetooth in turn;

7. LED: digital screen display, yellow;

8. USB: connect USB flash disk (32GB maximum);

9. TF: connect TF memory card (32GB maximum)

10. IR: infrared receiving module;

11. Line in: audio input interface;

Specifications

Main control IC: ac6926

Bluetooth IC: ac6926 Bluetooth version is 5.0

Music format: MP3 / wma / WAV / FLAC / ape lossless format

Radio frequency modulation: 87.5-107.5 MHz

Description of supporting functions: support mp3 / USB / TF / line in / FM / Bluetooth / remote control TZT

About structure: panel size: 77.5 * 52.5mm
