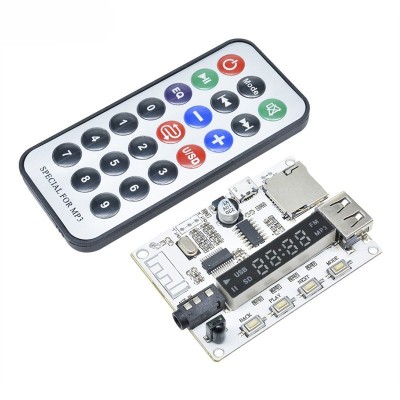

Modul decodor MP3 / WAV BLUETOOTH cu card microSD, USB, FM telecomanda (b.2681R)

Produsul este nou!

Specificații în limba engleză:

Car FM Bluetooth MP3 sound card decoder board remote control without battery

1. The remote does not have a button battery by default

2. Support FM radio radio

3. Support micro SD memory card to sing

4. Support Bluetooth mobile phone connection song

5. The current version does not support the phone to connect Bluetooth calls (follow-up may consider upgrading)

A: The module role - audio, controllable player, household appliances

1, configure the production of simple audio, simple, cheap, suitable for the popular mid-range products Consumer Market:

2, upgrading and upgrading of ordinary audio, so audio can easily play U disk SD card MP3 / WMA format song files to improve the quality of ordinary audio, low price access to quality music, an effective way;

3, with the other equipment, circuits, modules, secondary development and application, used in toys, gifts, fitness equipment, household appliances, radio systems, etc.

4, easy Bluetooth wireless docking, smooth heart listen to music.

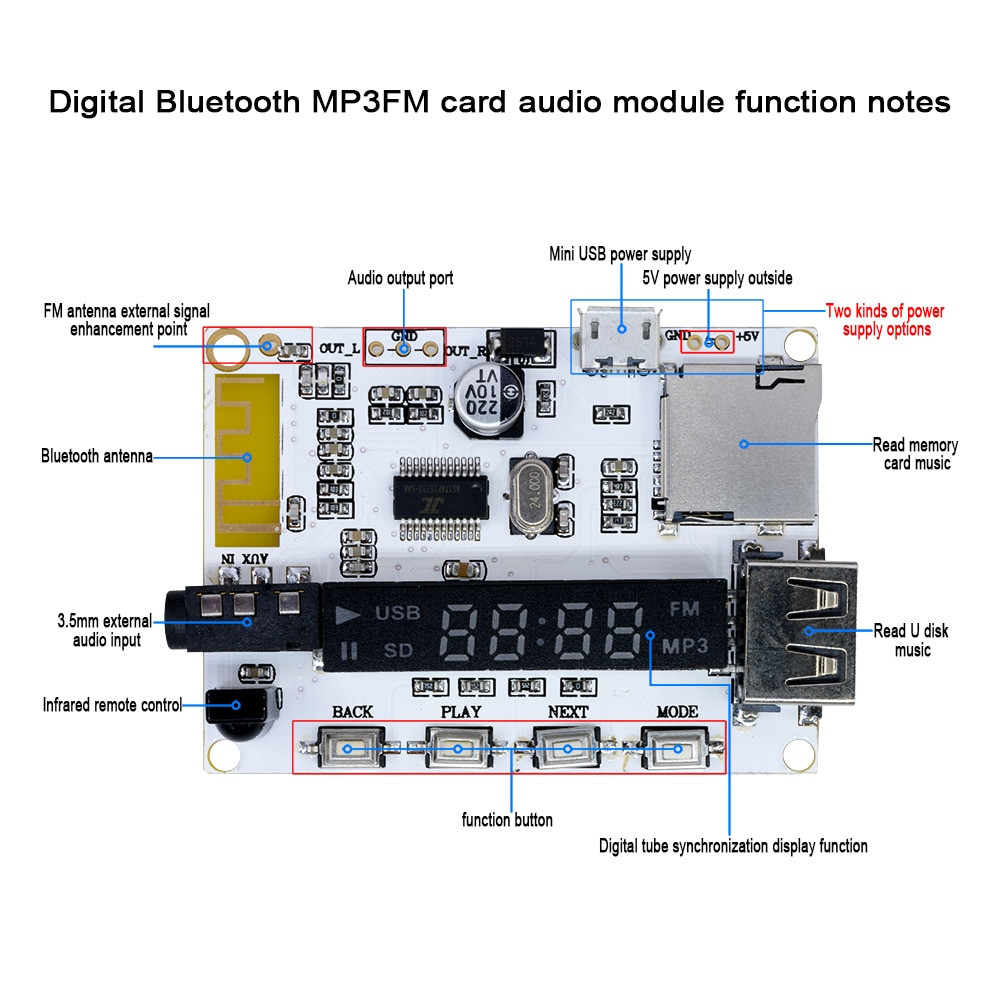

Two: The main function:

(1) Support led digital tube;

(2) Support USB, SD (TF), AUX, FM radio function;

(3) support Bluetooth, compatible with Bluetooth 3.0 or later;

(4) support the previous song, the next song, play / pause, mode conversion;

(5) Support FAT16, FAT32 file system;

(6) Supports the song of MP1 Layer3, MP2 Layer3, MP3 Layer3, version;

(7) Support 32-320kbps MP3 songs;

(8) support for infrared remote control receiver

(9) module contains MP3 song decoder chip;

Three: Key operation instructions

Host button:

1, "BACK": short press the previous song in USB / SD / Bluetooth state; short press the last radio station in FM state, long press the volume down.

2, "PLAY / PAUSE" in USB / SD / Bluetooth short press play / pause, long press in the FM state automatically scan radio;

3, "NEXT": Press USB / SD / Bluetooth short press a song; in the FM state short press the next radio, long press the volume plus.

4, "MODE": When there is SD card and U disk: the switching sequence is USB → SD → Bluetooth → FM → AUX → USB; only U disk: switching sequence is USB → Bluetooth → FM → AUX → USB; : The switching sequence is SD → Bluetooth → FM → AUX → SD.

Four: remote control button Description:

1: POWER: STANDBY.

2: Press to toggle ALL (ALL cycle) or SIGNALE (single cycle).

3: When there is SD card and USB flash drive: The switching sequence is USB → SD → FM → Bluetooth → USB. When there is only USB flash drive, the switching sequence is USB → FM → Bluetooth → USB. When there is only SD card, the switching sequence is SD → FM → Bluetooth → SD.

4: Sound field mode NORMAL → POP → JAZZ → CLASSIC → NORMAL.

5: Short press the previous song in USB / SD / Bluetooth state; Short press FM upward to fine tune frequency.

6: Short press the song in USB / SD / Bluetooth state; Short press FM in the FM state to fine tune down.

7: Short press play / pause in USB / SD / bluetooth; long press full channel to search station and keep station in FM status.

8: Press to decrease the volume control.

9: Press to increase the volume control.

0-9: Enter any number in USB or SD mode, the system will automatically play the corresponding music file. (Invalid when input number exceeds track number)

Pachetul conține:
• 1 bucată x modul decodor MP3 / WAV BLUETOOTH cu card microSD, USB, FM cu telecomanda (cod produs: d.2681R)

Se expediază în toată țara prin curierat rapid fără limită de kilometri în sistem ramburs.
