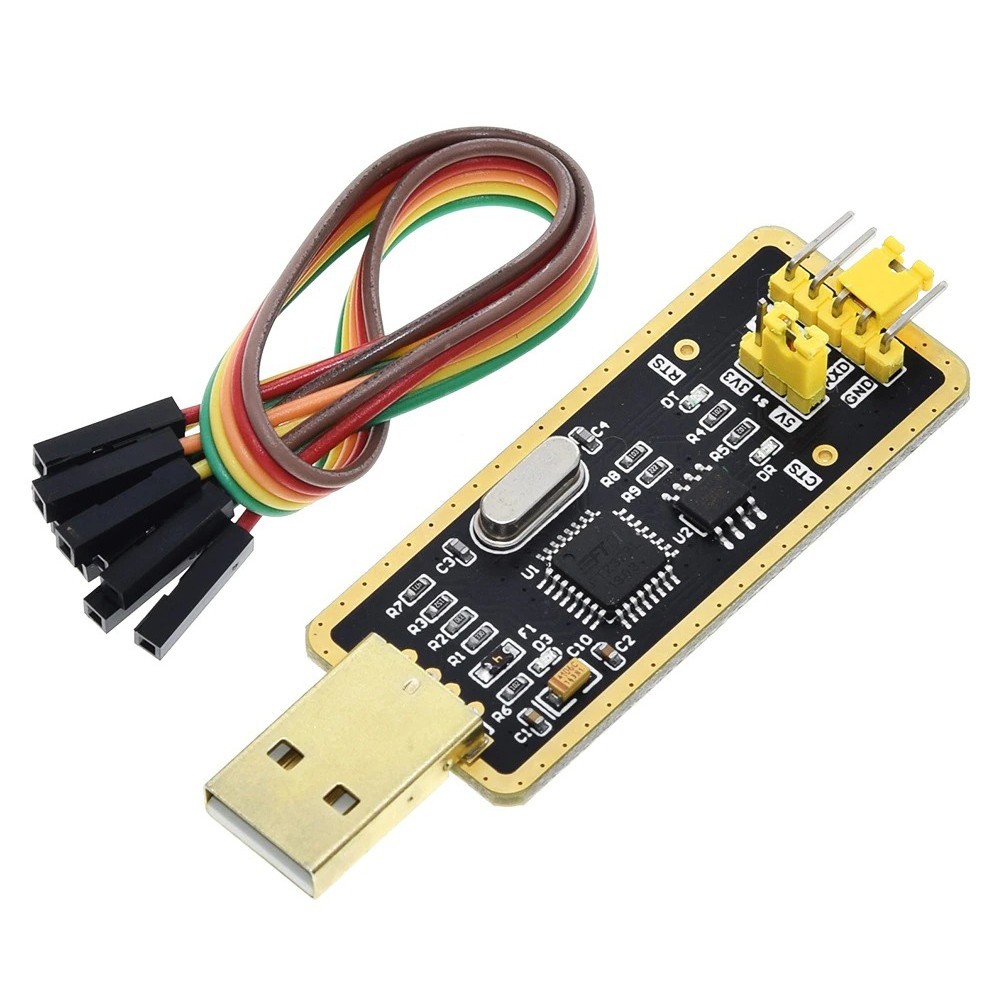

Modul FT232BL USB 2.0 la TTL serial module 5V 3.3V / upgrade FT232RL (f.9491G)

Produsul este nou!

Specificații în limba engleză:

Built-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols.

TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC/laptop via the USB connection, no need for an external power adapter
Designed to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance

Supports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X & Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS.
USB to serial adapter is seen as a COM port by your computer/laptop, and is available for use by any program that accesses COM ports.

Feature:
It works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial

After installing the driver,This FTDI TTL adapter will simulate a COM port on your computer/laptop.

Through this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.

Specification:
Main chip: FTDI FT232BL
Pin Definition: CTS,RTS,RXD,TXD,GND,VCC
Output VCC: 3.3V or 5V
USB interface: 2.0
With 500MA self-recovery fuse reversed does protection
The maximum speed: 921600bps
List of supported systems
Windows xp,7,8,10
Ubuntu 11.10, kernel 3.0.0-19
Mac OS X 10.3 to 10.8 (32 &64 bit)
Mac OS X 10.9 and above(64 bit)
Instructions for use:(Example MCU)
GND: Connect to GND
RXD: Connect to MCU.TX (Signal Flow: MCU.TX >> FT232 >> PC.RX)
TXD: Connect to MCU.RX (Signal Flow: MCU.RX << FT232 << PC.TX)
3V3/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)
RTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS << FT232 << PC.RTS)
CTS: Connect to MCU.RTS (Signal Flow: MCU.RTS >> FT232 >> PC.CTS)

Pachetul conține:
• 1 bucată x modul FT232BL (cod produs: f.9491G)
