Modul incarcare / Placa protectie 4 acumulatori 18650 / BMS 4S (4-5A) (b.5510H)

Name: Modul incarcare / Placa protectie 4 acumulatori 18650 / BMS 4S (4-5A) (b.5510H)
Brand: Nespecificat
SKU: 219381463
Price: 21 RON
Availability: inStock

Livrare gratuita la comenzile de 180 lei

Disponibilitate:

In stoc 3 disponibile

Livrare:

Curier cu Garantia de Livrare - 18,00 Lei Detalii

Estimat livrare:

Joi, 7 Aug.

Cantitate:

Pret:

21,⁰⁰ Lei

Primesti 21 puncte in aplicatie

Produs:

Nou, Fără garanție

Politica de retur:

Acest produs poate fi returnat in 3 zile Detalii

Plata:

Ramburs cu Garantia de Livrare

Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.
Online

Vandut de:

elisatudor

100% pozitive (din 232

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Produsul este nou!

Produsul este la fel ca cel prezentat în fotografii!

Specificații în limba engleză:

Main IC uses the original "Ricoh" imported components.

Overcharge, over discharge, over current, short circuit protection,

for a variety of capacities in various shapes 3.7V lithium batteries.

Japan protection IC, VISHAY, AOS, IR and other high-quality MOSFET, FR-4

plate low temperature coefficient, design, fine workmanship, testing and comprehensive.

Compact, suitable for many of the requirements of highly integrated,

low-cost applications to meet a wide range of performance requirements

to ensure the absolute safety and reliability of the battery pack.

The protection board device description:

Components for Japan's S-8254AAG protection chip; Genuine Bandai America's AO4407 * 2pcs;

protect the chip as well as Ricoh R5431 series.

Lithium battery protection board attributes:

Model: HH-P3-10.8

Dimensions: 48 * 15 * 1.0mm
Charging voltage range: 4.25-4.35v±0.05v
Over-discharge voltage range: 2.3-3.0v ± 0.05v
Working temperature: -40 --- + 50 c
Storage conditions: -40-- + 80 c
Maximum operating current: 4-5A
The maximum instantaneous current: 6-7A
Quiescent Current: less than 6uA
Resistance: less than 45mΩ
Effective life: more than 50,000 hours
Short circuit protection: protect, need to be recharged recovery
Suitable for: 4packs 18650 lithium battery 14.8V 16.8V

Main functions and features: over charge protection, over-discharge protection,

short circuit protection, overcurrent protection.

The protective plate using Japan's Ricoh rechargeable lithium iron phosphate battery protection IC;

1) high-accuracy voltage detection circuit;

2) terminal of the charger using high voltage devices;

3) Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit);

4) MOS transistor can be controlled by a battery charge and discharge;

5) low standby current consumption.

Function and Notice:

1. the lithium battery with protection board according to the wiring diagram connection,

when the battery voltage is overcharge and over-discharge voltage between the voltage,

and P +, P- charging 1 second, P + and P- output voltage of the battery voltage.

2. the battery charge function: between P + and P- plus charger to charge the battery,

the battery voltage charge to overcharge detection voltage (4.25 ±0.025V),

the protection circuit to cut off the charging path, to achieve overcharge protection.

3. Battery over-discharge protection: in between the P + and P- connected load to the battery discharge

when the battery voltage drops to over-discharge voltage (2.7 0.05V), the protection circuit,

shut off the discharge path to achieve the over-discharge protection.

4. Short circuit protection: When the P + and P- short circuit protection circuit will act quickly in 5-50uS,

cut off access, short-circuit protection.

5. Overcurrent protection function: When the V- terminal voltage of (0.15 ± 0.02V), the protection circuit will act quickly in 6.7-13.9ms, cut off access, overcurrent protection.

Pachetul conține:
• 1 bucată x placa protectie 4 acumulatori 18650 / BMS 4S ( 4-5A ) (cod produs: b.5510H)

Se expediază în toată țara prin curierat rapid fără limită de kilometri în sistem ramburs.

Dacă aveți nelămuriri sau întrebări vă rog nu ezitați să sunați sau să-mi scrieți.

Galerie foto

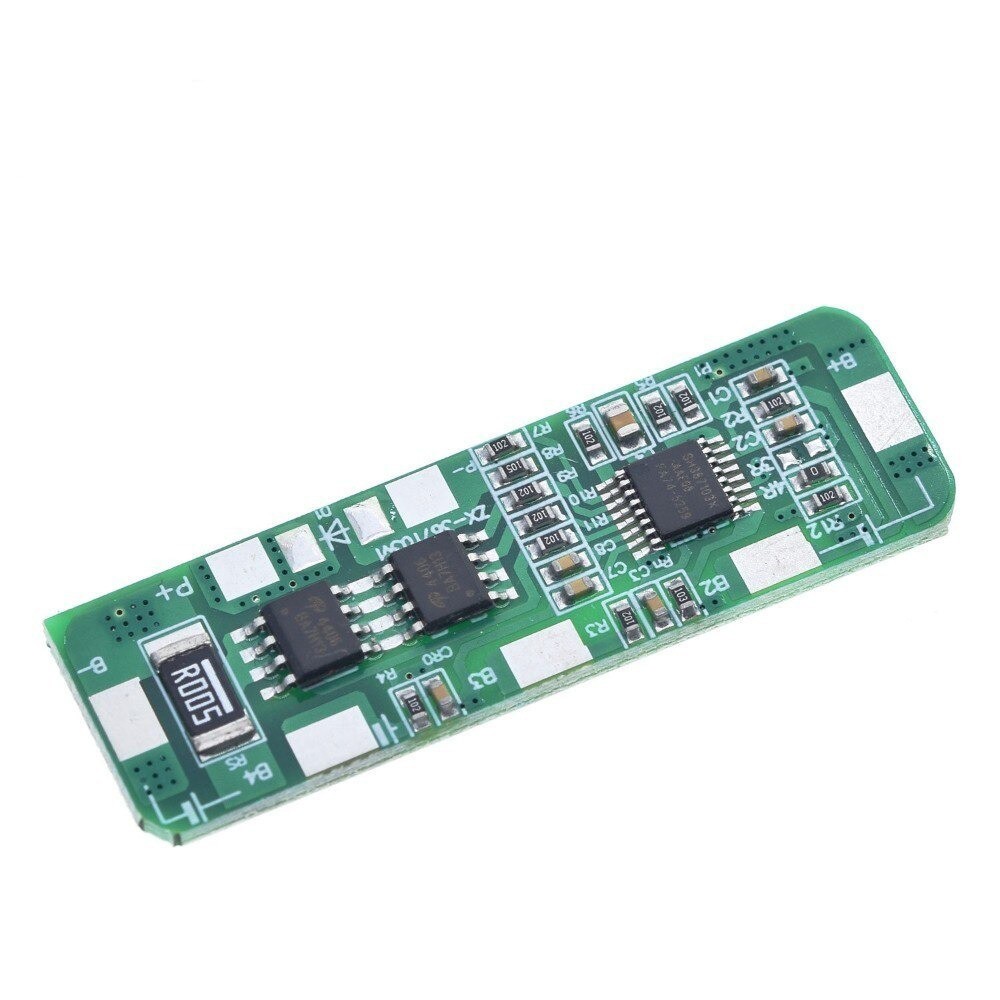

Modul incarcare / Placa protectie 4 acumulatori 18650 / BMS 4S (4-5A) (b.5510H)

Fotografia 1
