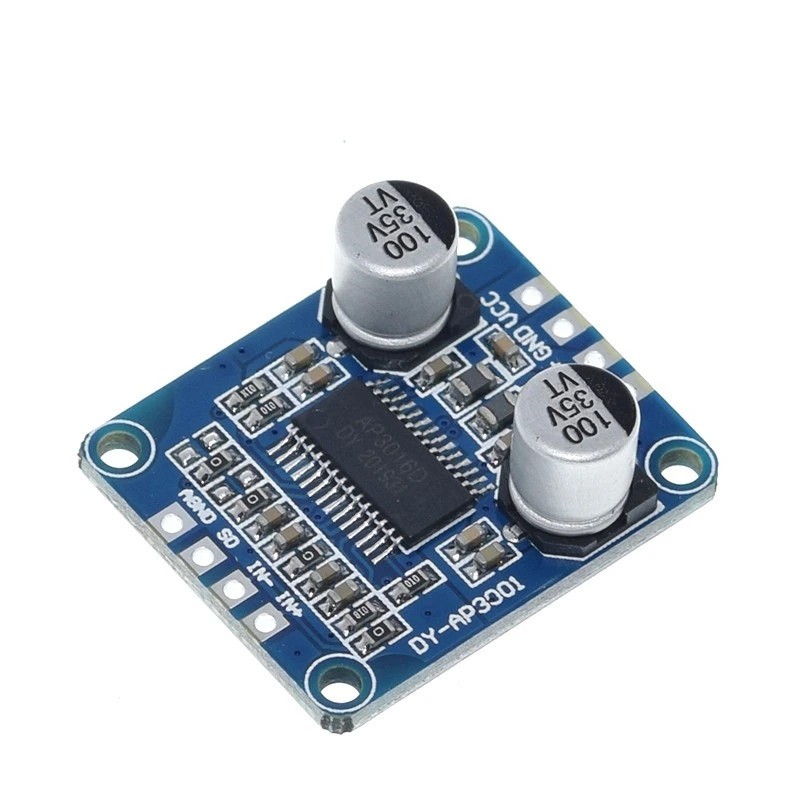

Modul mini amplificator audio mono 30W - 300W clasă D, input DC 8-24V (AMo.758)

Produsul este nou!

Specificații în limba engleză:

30W high-power class D digital mono power amplifier board, using original power amplifier chip, low noise, with mute function, wide working voltage, can be adapted to 300W speaker.

Parameter:

Work Voltage: DC 8V-24V

Work Mode: Class D

Channel: Mono

Input: Audio input

Output Power:

Output power 30W at 16V 4ohm

Output power 20W at 12V 4ohm

Output power 10W at 12V 8ohm

Output power 15W at 16V 8ohm

Output power 25W at 24V 8ohm

Match speaker(30W~300W):

4ohm at 8V~16V; 8.2>.8ohm at 8V~24V

Adapter speaker: 30W~300W

Instructions for use:

Ensure that the input source signal is between 0.5V and 1.5V.

It is recommended that the power supply voltage be DC 8~24V, 2A or more, more than 26V, the chip will burn out, and there will be noise below 8V.

The power supply does not exceed 12V when connected to a 4Ω speaker, and the power supply does not exceed 24V when connected to an 8 ohm speaker.

It is recommended to use the rated power of the speaker at 30W or above to avoid the burning of the speaker, and the speaker cable should not be too long to ensure that it is suitable within 1 meter.

Precautions:

Pay attention to static electricity protection.

Before touching the power amplifier board, discharge the static electricity on your hand to avoid static electricity from penetrating the power amplifier chip.

The digital power amplifier is sensitive to static electricity.

The positive and negative poles of the power supply cannot be reversed, and the reverse chip is burned.

This module is only suitable for single-supply operation and cannot be connected to a negative power supply.
