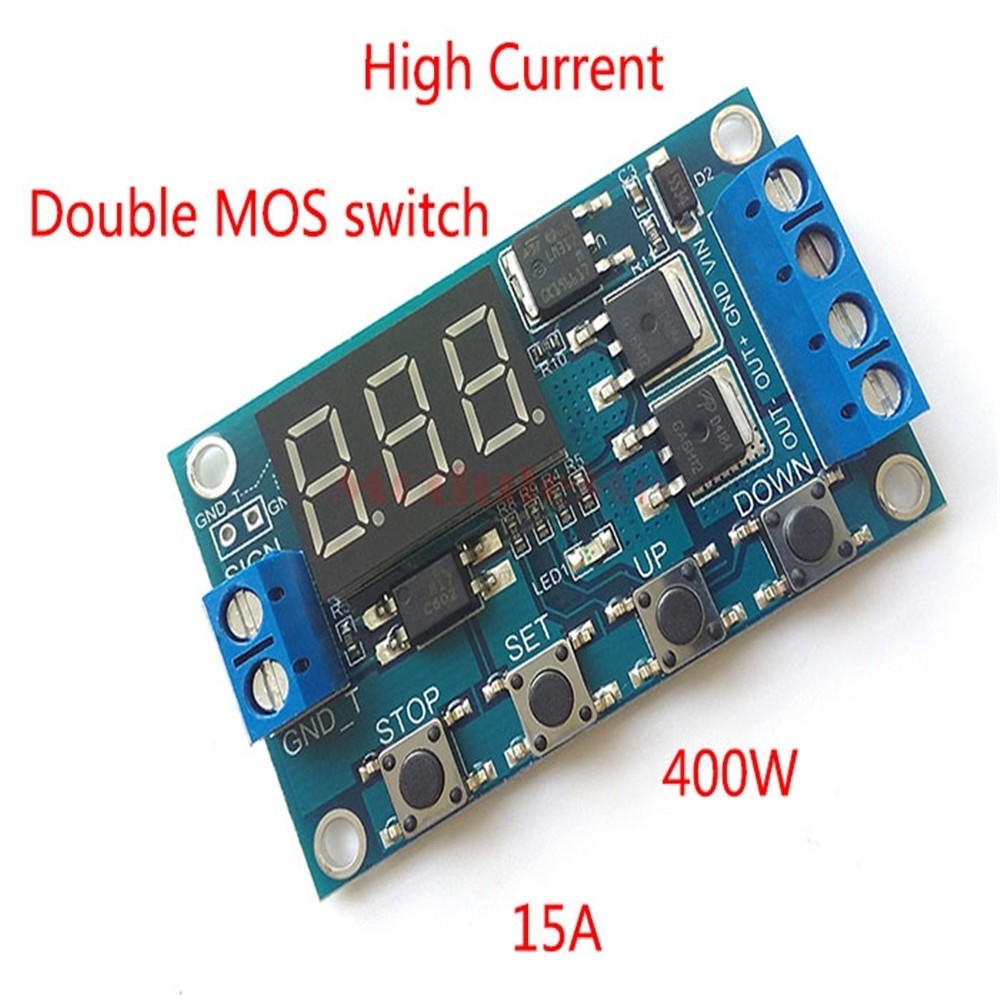

Modul programabil timer cu optocuplor si afisaj LED DC 5-30V DC 20A

Procesul on-off nu produce zgomot, scânteie sau interferență electromagnetică.
Are o durata de functionare mai lungă decât a unui releu electromagnetic.

Sunt utilizate pentru controlul motoarelor, becurilor, luminilor cu LED-uri, motoare de curent continuu, pompe, ventile electromagnetice, automate cafea, hranitoare pentru animale.
Poate fi setat de la o secundă pana la 999 secunde sau de la 1 minut la 999 minute

Specificații:
Capacitate de ieșire: DC 5-30V DC
Curentul maxim de ieșire: 20A
Curent stand-by: 20 mA
Cuent de lucru: 50mA
Tensiune de operare: DC 5-30V
Semnal de tensiune: DC 4V-27V (alimentare cu energie comună de declanșare pozitivă sau buton, senzori PNP, semnale PLC, etc.)
Timp de viață: nelimitat

Temperatura de operare : -40-85C
Culoare: albastru
Dimensiune: 65mm * 40mm * 14mm
Greutate neta: 20,4 g

Operating mode:

P1: trigger signal, the relay is on "OP" time, and then disconnect; in the "OP" time, as follows:

P1.1: signal is triggered again, invalid

P1.2: signal is triggered again, the clock is reset

P1.3: Signal trigger again, relay off, stop the clock;

P-2: trigger signal, the relay off "CL" of time, the relay on "OP" time, and then disconnect relay;

P3.1: trigger signal, the relay is turned on after the "OP" time, the relay off "CL" time, then the operation cycle, if the trigger signal period, the relay off, stop the clock; the number of cycles ( "LOP ") can be set.

P3.2: without triggering signal, the relay is on "OP" time, the relay off "CL" time, and has been cycling; frequency ( "LOP") cycle can be set;

P-4: signal holding function. If there is a trigger signal timing is cleared, the relay remains on; when the signal disappears, after the timing "OP" time, the relay is; if another signal during timing, timing is cleared;
