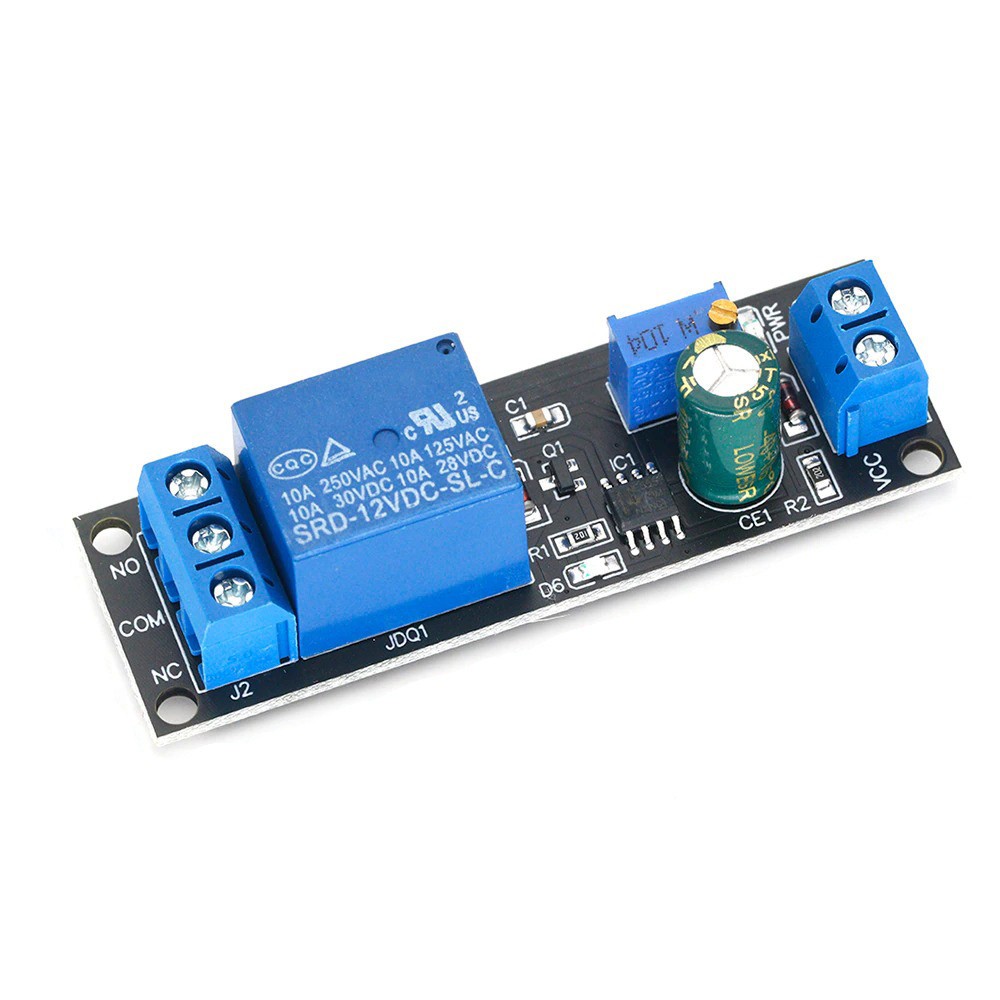

Modul releu cu temporizare 12V 1 canal Arduino / Relay termorizator (r.5391G)

Produsul este nou!

Specificații în limba engleză:

Size: 6.8 CM x 2.1 CM;

The main chip: NE555;

Working voltage: DC12V.

Features:

1.The relay time delay and power supply is connected.

Specific as follows: for 12 v power supply to the relay,relay not immediately and absorption, relay the output status to: normally open and public disconnect,normally closed and public conduction;

Wait for delay 1-10 s (adjustable), relay and absorption, at this point, the relay outputs status to: normally open and public conduction, normally closed and public disconnected;As long as the module power continuously, this state will remain;

2. The delay time is adjustable, (0 ~ 10 seconds);

3. IKncreasing the potentiometer can increase the delay time;

4. The capacitor C1 can increase delay time;

5. With input power light;

6. A relay and indicator lights;

7. Controlled ac 220V/ 10Adevice.(maximum control equipment 2000 w);

8. Stream with relay protection;

9. The delay time formula: T = 1.1 RC.For example: 100 uf capacitance resistance 100 k T = 1.1*100000*0.0001 = 11 seconds.

Pachetul conține:
• 1 bucată x modul releu cu temporizare 12V 1 canal (cod produs: r.5391G)
