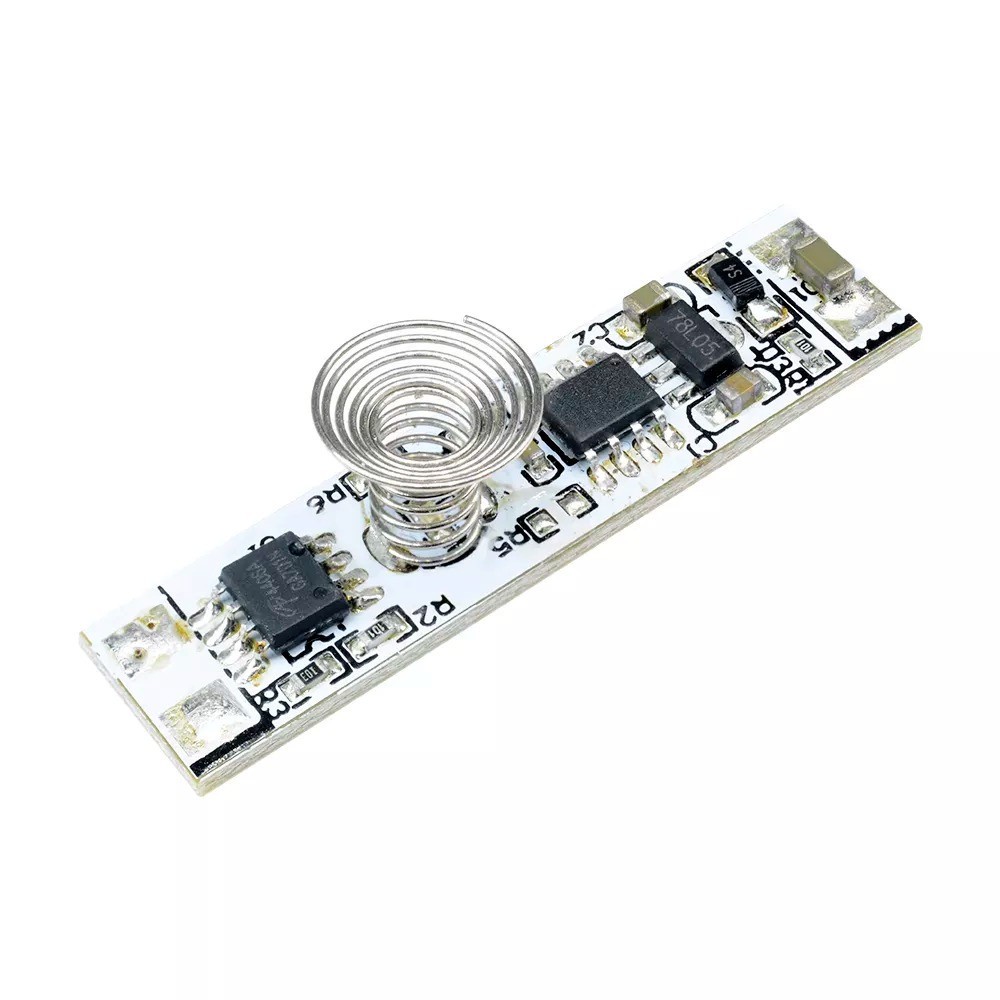

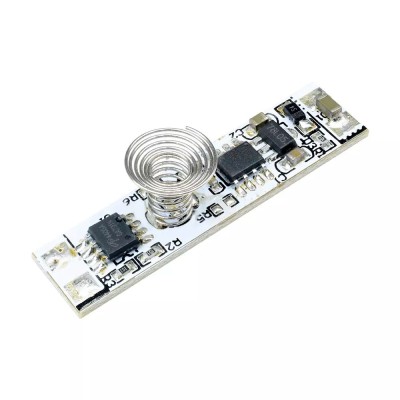

Modul senzor capacitiv cu comutator tactil 9V-24V / 30W, arc elicoidal (s.3109X)

Produsul este nou!

Specificații în limba engleză:

Module size 40mm*10*1.2 ( mm), for width >=10mm of the hard light or other lamps;
Using a wide voltage work program , the input voltage 9V to 24V can be,
Note that the output load voltage is approximately
equal to the input voltage;
Module anti-inerference and self-adaptability is better , widely used in civilian hard-light type control
The status of this version LED is always on.
This series is a four-in-one version of the model,
The default factory setting is one-way dimming

Product parameter

Pay Attention
It is required to install and then power on . If the power supply is installed , May change the environmental parameters , may attect the sensitivity . Touch spring installation , please avoid contact with the electromagnetic signal changes in the complex contacts , Try to avoid the use of heavy water for vapor environment , to prevent possible malfunctions.Please understand the product operating parameters before use

Touch _ Sensor _ S00(general switch):
S00 mode , fast touch switch lamp on/off state,no dimming function.Effect gradient.

Touch _ Sensor _ S01 ( Unidirectional dimming ):
S01 mode , fast touch switch lamps on / off state ;ln the case of open , long touch to enter one-waydimming
( keep touching , dimming to maximum or minimum brightness , automatically stop dimming ),Let go lock the brightness,
The switching brightness is the last lock brightness.In the off condition , the long touch will be dimmed from the previous brightness to the brighter direction Effect gradient.

Touch _ Sensor _ S02 ( Cycle Dimming)
S02 mode , fast touch switch lighting on / off state;In
the case of open , long touch into the cycle dimming( keep touching , dimming to the highest or lowest brightness,automatically in the opposite direction of light , so the cycle ) , let go lock the brightness ,
The switching brightness is the last lock brightnessIn.In
the off condition , the long touch will be dimmed from the previous brightness to the brighter direction.Effect gradient.

Touch _ Sensor _ S03 ( three-segment dimming)
S03 mode , fast touch switch lighting status.Brightness of three , respectively , 30% , 60% , 100% ,switching effect gradient.

Pachetul conține:
• 1 bucată x senzor capacitiv cu comutator tactil 9V-24V / 30W, arc elicoidal (cod produs: s.3109X)
