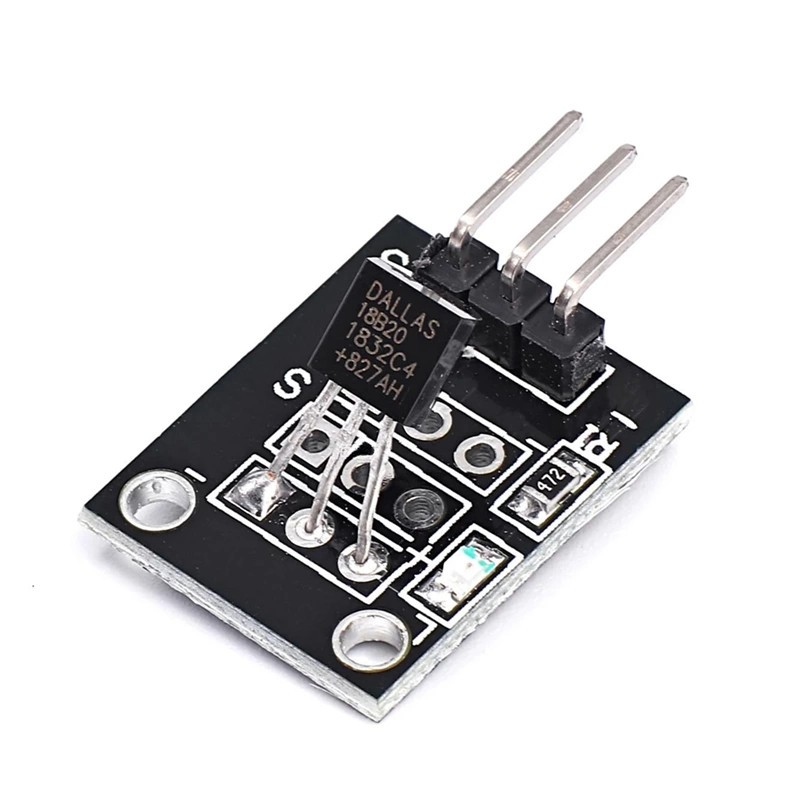

Modul senzor de temperatura KY-001 cu DS18B20 pentru Arduino

Produsul este nou!

Produsul este la fel cu cel prezentat in fotografii!

Atenție!

Produsul este destinat specialiștilor și persoanelor pasionate de electronică și nu include alte instrucțiuni de asamblare sau utilizare.

Descriere în limba engleză:

The unique single-wire interface mode, DS18B20 and microprocessor connection only need a port line to realize the microprocessor and DS18B20 two-way
communication;

Temperature range :-55C  +125C, natural temperature resolution 0. 5C;

Support multi-point networking function, multiple DS18B20 can be parallel on three lines, at most 8 parallel, if the number is too much, will make the power supply voltage is too low, resulting in unstable signal transmission, multi-point temperature measurement;

Working power supply: 3 5V/DC;

No peripheral components are required in use;

The measurement results are transmitted in 9-12 digit quantities.

PVC cable or German ball junction box outlet, easy to connect with other electrical equipment.

Scope of application:

The product is suitable for refrigerating warehouse, granary, storage tank, telecommunication room, power room, cable trough measurement and control
field; Bearing bush, cylinder block, spinning machine, air conditioning, small space industrial equipment measurement and control; Automobile air conditioning, refrigerators, freezers, and low temperature drying boxes;

Heating/cooling pipeline heat metering, central air conditioning household heat metering and industrial field temperature control.

Model and specification:

Model temperature range Mounting threaded cable length Suitable for pipe

TS-18B20-55

to 125 None 1. 5m

TS-18B20A-55™125 M10X1 1. 5m DN15™25

TS-18B20B-5571251/2 "G junction box DN40°60

DS18B20 digital temperature sensor can be used in a variety of single chip controller applications

Note:

1. Because DS18B20 and Pu velvet triode looks similar, we must pay attention not to use it as an ordinary triode, so as not to cause damage!

2. In order to prevent damage to DS18B20 and make it work abnormally, we should ensure that its power cord and ground wire are not reversed!

Package Include:

1PCS KY-001 DS18B20 Temperature Sensor Module Measurement Module For Arduino
