modul shield rf rfid 315mhz DC3-5V Rolling code RF Wireless Remote Control receiver transmitter

Product Description

   It is an excellent UHF rolling code  received module,it have been used the advanced  RF integrated circuit  and  with the dead reliable KEELOQ Encryption Algorithm ,the circuit design special and stable and reliable. Strong interference rejection it can be used in any kind severe environment and high secure and reliable occasion. Because it included the encoding circuit .it can be apply to can be used directly in any kind garage door wireless remote control system .any kind alarm system , access control system ,and any other wireless remote control system , Industrial design.

Specification

Working Voltage :DC3-5V

Working Current :less than 11ma

Module Type: super-heterodyne module

Modulation method :OOK/ASK

Receiving Sensitivity: more than -105 dbm

Rate: less than 9.6Kbps(315MHz, -95dBm)

Decoding: Microcontroller decoding (SIMPLY)

Antenna :24cm 315MHZ      18CM  433.92MHZ

Output : Output TTL ,4 Channel output ,

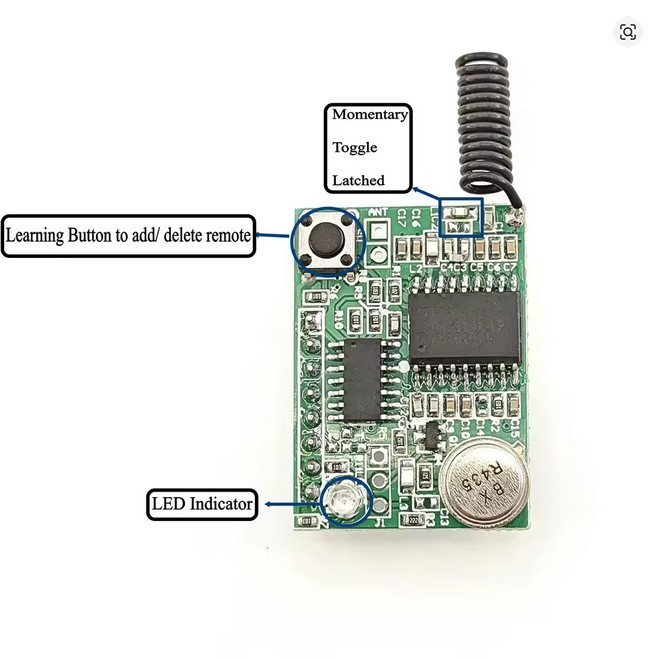

Output state: Latched(L) and Signal .Toggle(T) and impulse. Momentary(M)

Size:34*24mm
