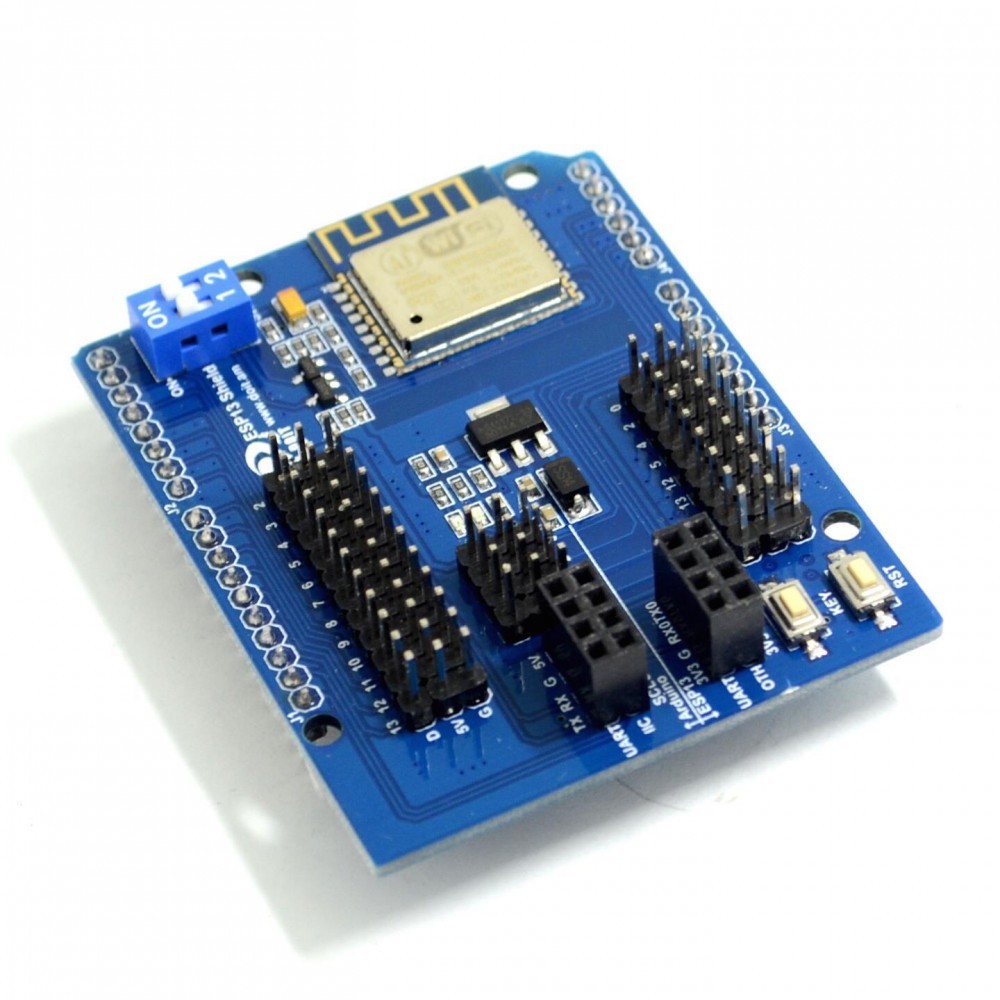

Modul wireless ESP8266 ( ESP-13 ) WebServer Arduino Wi-fi (e.905)

Produsul este nou! Fotografii reale!

Specificatii in limba engleza:

1,WiFiUsing industrial grade chipsESP8266Module forESP-13With metal shield, strong anti-interference ability;

2,Standard pin compatibleUno,Mega2560Main control panel,andUNOConnection using the voltage conversion chip, making3.3Vand5VCompatible;

3,Serial port using dual dial switch control, so that the expansion of the board can be used as a separateUnoExpansion board use, can also be used asESP8266Expansion board use;

4,Real serial portWiFi,Program is not required for any configuration;

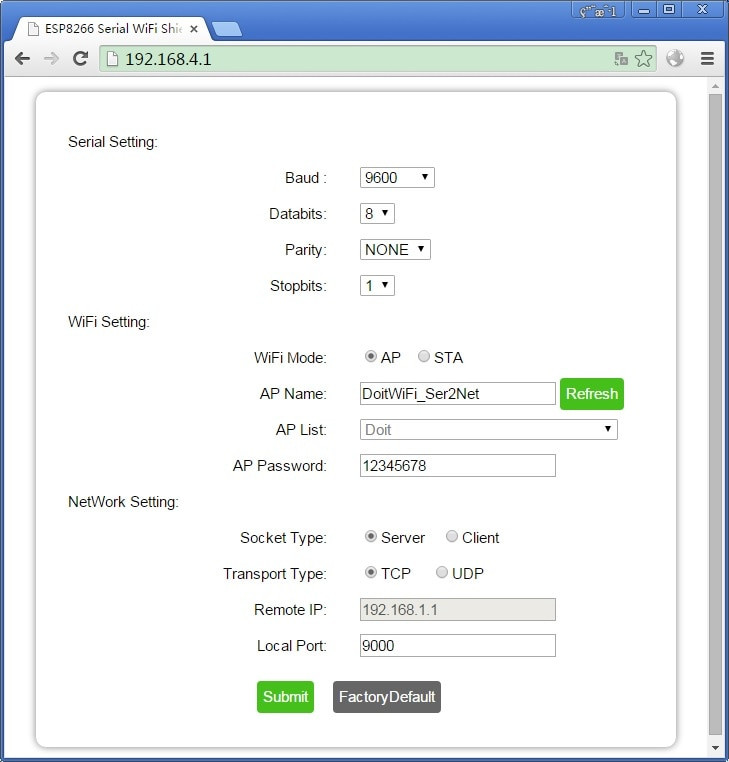

5,be based onServer Webto configureWiFiParameters and serial port parameters;

6,Can be used as an independentESP8266Development board to use, download the officialATInstruction firmware,NodeMCUOpen source firmware, etc.;

7,Can be used as an independentUnoExtended board use, pin all extraction.

technical specifications

1,Wireless support802.11 b/g/nStandard;

2,supportSTA/APTwo modes of operation;

3,built-inTCP/IPProtocol stack, you can configure aSocket;

4,Support standardServer TCP/UDPandClient;

5,Serial port baud rate support:1200/2400/4800/9600/19200/38400/57600/74800/ 115200 BPS;

6,Serial data bit:5/6/7/8A;

7,Serial parity check: no;

8,Serial stop bit:1/2A;

9,standardUNO,MegaPin spacing;

10,  extractionPin 2/3/4/5/6/7/8/9/10/11/12/13;

11,  extractionGPIO 0/2/4/5/9/10/12/13/14/15/16/ADC/EN/UART TX/UART RX ESP8266;

12,  RESETReset;

13,  KEYKey multiplexing configuration;

14,  Two digit dialing switchandESP8266Serial port expansion switching;

15,  WiFiWorking current: continuous transmission:About 70mA(MAX 200mAStandby), standby:<200uA;

16,  Wireless transmission rate:110-460800bps;

17,  Working temperature:-40C~ +One hundred and twenty-fiveC

18,  Module weight: About20g

Delivery list:

ESP8266 expansion board: 1pcs

Configuration mode

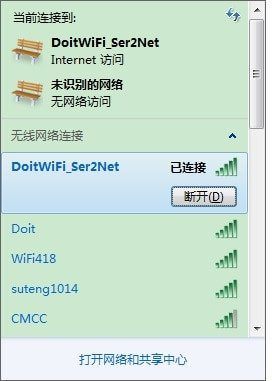

 Notebook search and connect toWiFiExtended plateWiFiSignal:"DoitWiFi_Ser2Net"Password for"Twelve million three hundred and forty-five thousand six hundred and seventy-eight".

Pachetul conține:
• 1 bucată x modul wireless ESP8266 ( ESP-13 ) WebServer Arduino Wi-fi (e.905)

Predare personală în Galați.

Se expediază în toată țara prin Poștă sau curierat în sistem ramburs.

• DPD - 15,5 lei
• FAN COURIER - 15,5 lei
• Urgent Cargus - 15,5 lei
• Poșta Romană (coletărie) - 10 lei
• Poșta Romană (Prioripost) - 15,5 lei

Trimit în tară și cu verificare colet. La prețul transportului se adaugă 4 lei.

Dacă aveți nelămuriri sau întrebări vă rog nu ezitați să sunați sau să-mi scrieți.
