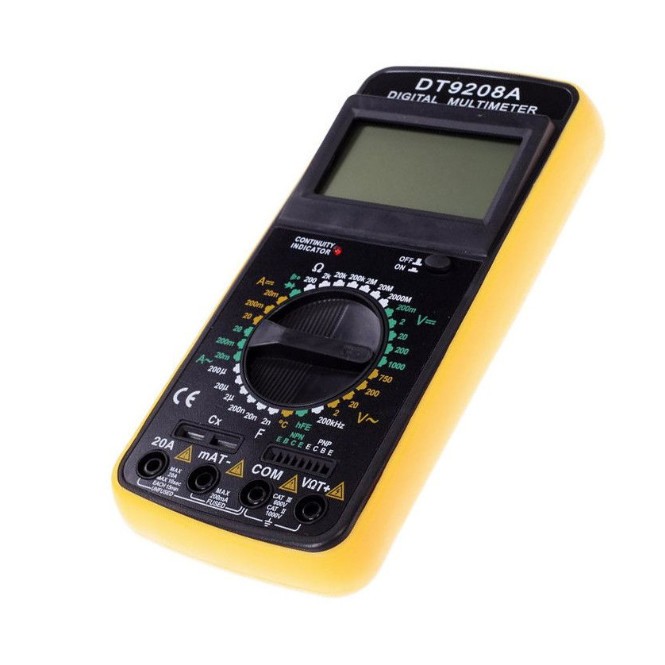

Multimetru 9208 Digital Cu Display

Multimetrul masoara:

- Curent continuu (voltajul si amperajul),

- Curent alternativ (voltajul si amperajul),

- Rezistenta,

- Masurare dioda,

- Tranzistori.

Voltaj curent continuu:

- Trepte - 200mV, 2V, 20V, 200V, 1000 V,

- Rezolutie - 0.1 mV, 1 mV, 10 mV, 100 mV, 1V,

- Precizie - 0.5% + 1cifra, 0.8% + 2cifre.

Voltaj curent alternativ:

- Trepte - 200mV, 2V, 20V, 200V, 200mV, 750V,

- Rezolutie - 0.1 mV, 1 mV, 10 mV, 100 mV, 0.1 mV, 1V,

- Precizie - 0,8% + 3 cifre, 1,2% + 3 cifre.

Amperaj CC & AC :

- Trepte - 2mA, 20mA, 200mA, 20 A,

- Rezolutie - 1 µA, 10 µA, 0.1 mA, 0.01 A,

- Precizie - 1% + 1 cifra, 2% + 5 cifre.

Rezistenta :

- Trepte - 200, 2k, 20k, 200k, 2M Ohm, 20M, 200M Ohm,

- Rezolutie - 0.1, 1, 10, 100, 1k Ohm, 10 k, 100 kOhm,

- Precizie - 0.8% + 2 cifre, 1.5% + 2 cifre.

Capacitate:

- Trepte - 2nF, 20nF, 200nf, 2µF, 20µF, 200uF,

- Rezolutie - 1pF, 10pF, 100pF, 1nF, 10nF, 100nF,

- Precizie - 2.5% + 5 cifre,

- Test Dioda - hfe Transistor - Test Volt 2.8V max,

- Test Continuu - Less than 30 +/- 10 Ohm.

Specificatii:

- Temperatura optima de lucru: +0 - +40 grade C,

- Greutate: circa 310g (batteria inclusa),

- Dimensiuni: 191mm(L) x 89mm(W) x 35mm (H).

Gradul de acuratete:

- DC Voltage 200mV-1000V (0.5%+1dgt),

- AC Voltage 200mV-750V (0.8%+3dgt),

- DC Current 2mA-20A (0.5%+1dgt),

- AC Current 2mA-20A (1.0%+3dgt),

- Resistanta 200-200M (0.8%+1dgt).

- Capacitate 2nF-20 grade F (2.5%+3dgt).

Functioneaza cu o baterie 9V neinclusa in pachet.
