NM Newstar vesa adapter plate 400x200

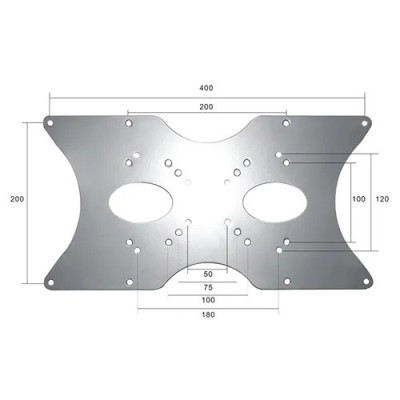

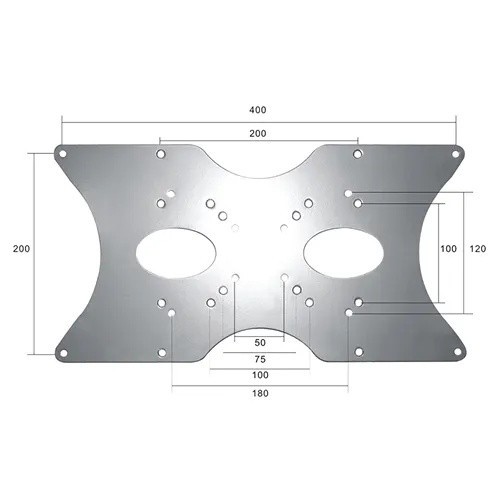

The Neomounts by Newstar VESA adapter, model FPMA-VESA400 allows a VESA mount with 50x50, 75x75, 100x100 and 200x100 mm interface to be used with displays with VESA hole patterns of 200x200mm, 400x200 and 120x180 mm (JVC holepattern). Ideal when flat screen needs different VESA pattern to select wall-, desk- or ceiling mount.

Neomounts by Newstar FPMA-VESA400 is suitable for screens up to 52" (130 cm). The weight capacity of this product is 35 kg each screen. Depth of this adapter is 3 millimetres only. The adapter is suitable for screens that meet VESA hole pattern 200x200, 400x200 and 120x180 mm (JVC holepattern). Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

• VESA mounting: Yes
• Number of displays supported: 1
• Maximum weight capacity: 35 kg
• Master (outer) case gross weight: 12.5 kg
• Maximum screen size: 132.1 cm (52)
• Minimum screen size: 55.9 cm (22)
• Products per pallet (EU): 180 pc(s)
• Package net weight: 1.06 kg
• Master (outer) case width: 435 mm
• Master (outer) case length: 220 mm
• Master (outer) case height: 245 mm
• Master (outer) case net weight: 10.6 kg
• Products per master (outer) case: 10 pc(s)
• Tip miscare suport: Fixed
