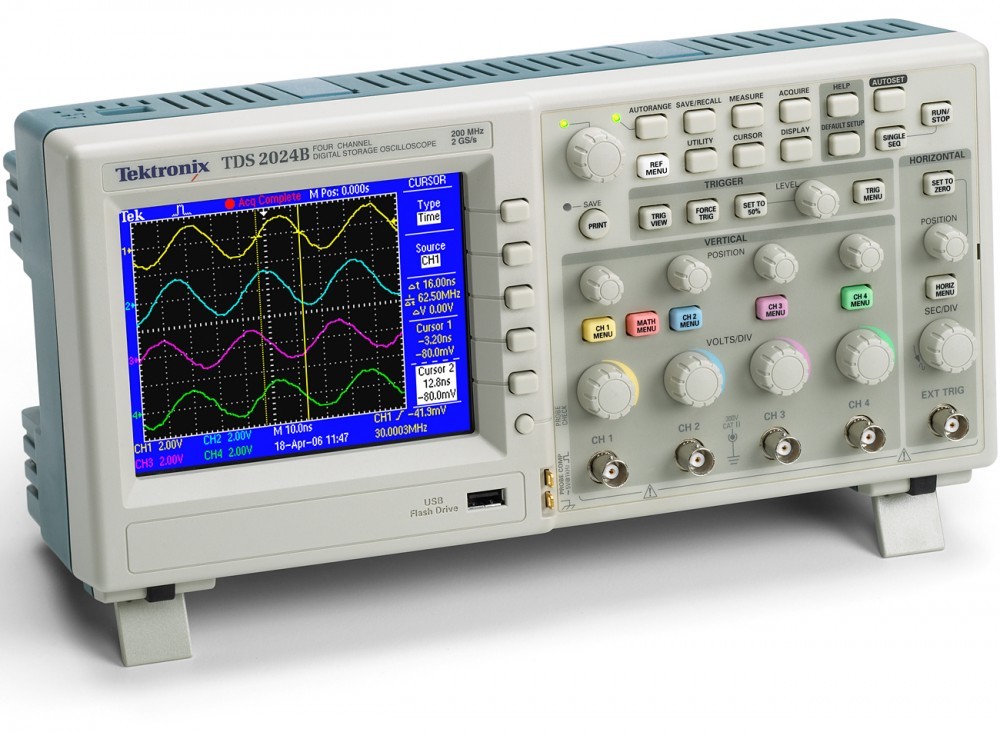

Osciloscop digital 4 canale Tektronix TDS2024B 200MHz Digital Storage Oscilloscope TDS 2024B

Osciloscop digital 4 canale Tektronix TDS 2024B 200MHz Digital Storage Oscilloscope TDS2024B.

PRODUSUL ESTE APROAPE NOU SI BENEFICIAZA DE GARANTIE INTERNATIONALA

Tektronix TDS2024B 200MHz Digital Storage Oscilloscope; 200MHz bandwidth; Real time sample rate of 2GS/s; Color LCD display (TDS-2024B, TDS_2024B, TDS 2024B)



• Color LCD Display
• 200 MHz Bandwidth
• 1 GS/s or 2 GS/s Sample Rate
• 2 or 4 channels
• 2.5 k Points Record Length
• Advanced triggers including pulse width and line-selectable video trigger
• Context-Sensitive Help
• 11 Automatic Measurements
• FFT Standard on All Models
• Removable Data Storage via Front Panel USB Port
• Seamless PC Connectivity via USB Device Port, with OpenChoice® and NI SignalExpress® PC Software
• Direct Print to all PictBridge® Compatible Printers via USB Device Port
• Limited Lifetime Warranty *
• Only 12.75"W x 5.96"H x 4.9"D, 4.4 lbs

Applications

• Service and Repair
• Education and Training
• Manufacturing Test and Quality Control
• Design and Debug

Instantly Productive. Incredibly Easy.

TDS2022B and TDS2024B digital storage oscilloscopes deliver an unbeatable combination of performance and ease-of-use, at a price you can afford.

Affordable Digital Precision

With 200 MHz bandwidth and 2 GS/s maximum sample rate, no other color digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS2000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 11 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.

Quickly and easily capture waveforms		Quick and Easy Waveform Capture The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, Context-Sensitive Help Menu and LCD display optimize instrument setup and operation.
Conveniently use your USB flash drive to store screen shots and waveform data		Flexible Data Transfer With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
Easily capture, save and analyze measurement results with OpenChoice PC Communications Software		Simple Documentation and Analysis Easily capture, save and analyze measurement results with OpenChoice PC Communications Software. Simply pull screen images and waveform data into the stand-alone desktop application or directly into Microsoft Word and Excel. To complement OpenChoice, National Instruments SignalExpress Tektronix Edition Software provides you with extended capabilities, including advanced analysis, remote oscilloscope control and live waveform analysis. Alternatively, if you prefer not to use the PC, you can simply print your image directly to any PictBridge compatible printer via the USB device port.

Performance You Can Count On

Depend on Tektronix to provide you with performance you can count on. In addition to industry leading service and support, every TDS2000B Series oscilloscope comes backed with a Limited Lifetime Warranty as standard.
