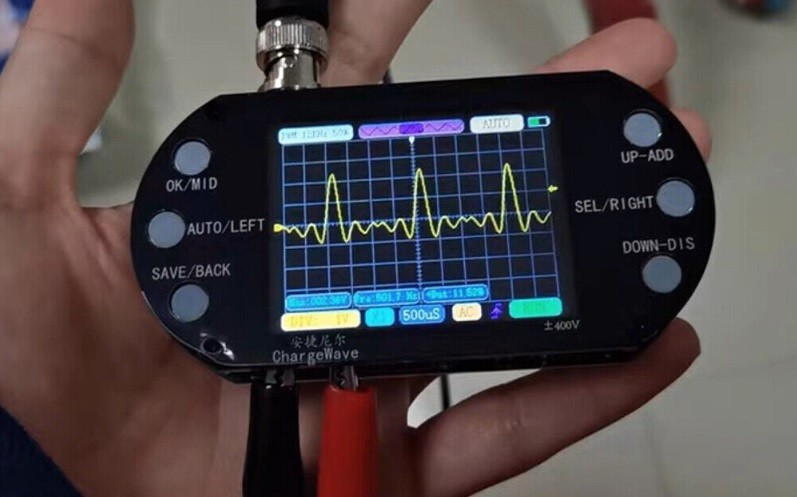

OSCILOSCOP digital color cu acumulator incarcare USB portabil !

Digital Oscilloscope 2.5Mhz Sampling Rate Pocket Oscilloscopes 200Khz Bandwidth Support AUTO 80Khz PWM for Electronic Repair DIY
Feature:
1. Faster Sampling Speed: Our digital oscilloscope has a real-time sampling rate of 2.5MHz with a actual bandwidth 200KHz, analog bandwidth 1MHz (sine wave).
2. Trigger Function: Mini oscilloscope features with full trigger functionality (single, normal, automatic) freely available for periodic analog and aperiodic digital signals can measure up to ±400V voltage signal.
3. One-button Auto: Our oscilloscope kit is equipped with an efficient one-button auto, the measurement waveform can be displayed without cumbersome adjustments.
4. One-key Waveform Saving Function: Mini oscilloscope has 17 functional waveforms, with 2.4 inches TFT, 320*240 resolution display. One-key waveform saving function can be used freely.
5. Satisfaction Guarantee: We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly.


Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Model Number: Oscilloscopes
Sampling Rate: 2.5MHz
Analog Bandwidth: 1MHz (sine wave)
Actual Bandwidth: 200KHz
Measuring Voltage: X1/±40V, X10/±400V
Input Impedance: 1MΩ
Storage Depth: 1Kb
Parameter Display: 12 kinds
PWM Output: frequency 1K~80KHz, duty cycle 0~100%, output voltage 3.3V
Functional Waveforms: 17 waveforms
Output Frequency: 1~1KHz voltage range Vpp 0~3.3V (not adjustable)
Display: 2.4 inches TFT, 320*240 resolution
Charging Voltage: 5V
Battery Capacity: 600mA/h 3.7V
Host Computer: temporarily unsupported
Firmware Upgrade: support
Dimensions: 50mm/1.97in wide, 100mm/3.94in long (excluding BNC head)

Livrarea se poate face doar in 2 feluri:

1) personal la Metrou Nicolae Grigorescu in Bucuresti
2) cu livrare prin posta romana cu plata in avans in cont bancar a contravalorii produs + 15lei ( taxe postale de expediere posta romana )….dupa confirmarea platii va voi trimite nr AWB de urmarire colet pe posta romana !

Inainte de a cumpara va rog intrebati de stoc care poate suferi modificari !
