Osciloscop LCD color portabil incarcare pe USB nou !

1. The oscilloscope has a real-time sampling rate of 2.5MS/s, 200kHz bandwidth
2. With a full range of triggering functions (single, normal, automatic), both for periodic
3. Analog signals and non-periodic digital signals can be used freely
4. Up to ± 400V voltage signal measurement
5. Equipped with a highly efficient one-key AUTO, without the need for cumbersome adjustments can be displayed on the measured waveforms
6.1KHz calibration square wave, easy to calibrate the probe.
7. Lightweight body, to get rid of equipment heavy belt trouble
8. Applicable to a variety of occasions, carry with you on the job!


Sampling rate: 2.5MS/s
Bandwidth: 200K
Vertical sensitivity: 10mV/Div-20V/Div (by 1-2-5 way progression)
Time base range: 10μs/Div-50s/Div(in 1-2-5 way progression)
Voltage range: X1:±40V(Vpp:80V), X10:±400V(Vpp:800V)
Trigger mode: automatic/regular/single
Coupling mode: AC/DC
Display: 2.8 inch/PPI:320*240
USB Charging:5V/1A
Interface: Type-C
Li-ion battery capacity: 1000mAh
Calibration Square Wave:Frequency:1K;Duty Cycle:50%

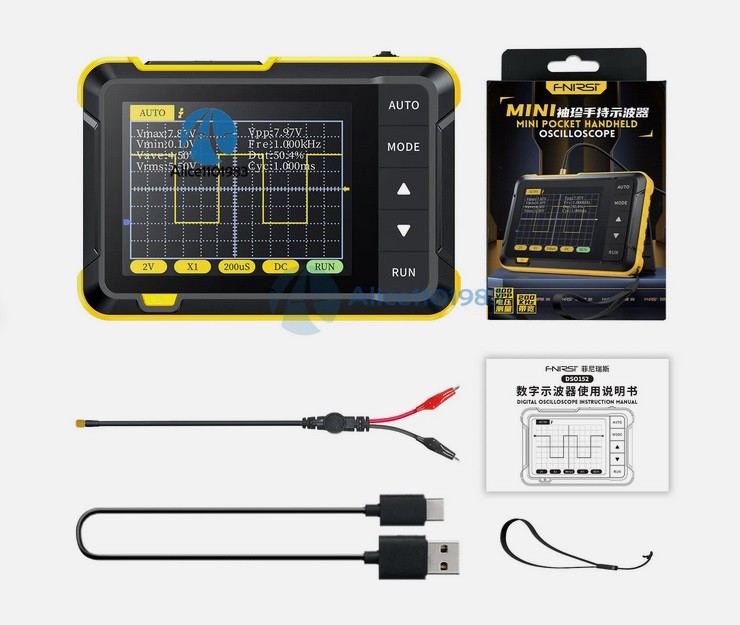

List
1 x oscilloscope
1 x Instruction Manual
1 x Normal Probe
1 x Type-C cable
