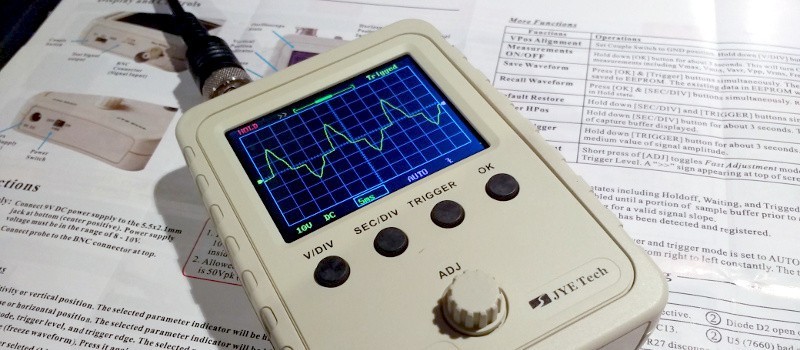

Osciloscop nou ecran LCD COLOR portabil !

Specificatii tehnice:

Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Come with instructions, easy to install and operate.
With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous waveform before trigger(negative delay).
Can freeze waveform display at any time(HOLD function).
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.
The SMD has been soldered, more suitable for electronic beginner.

Specifications:
Maximum Real-time Sampling Rate: 1MSa/s
Analog Bandwidth: 0-200KHz
Sensitivity Range: 5mV/div-20mV/idv
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms/20pF
Accuracy: 12 Bits
Record Length: 1024 points
Coupling Modes: DC / AC / GND
Time Base Range: 500s/Div - 10us / Div
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption:~120mA @ 9V
Main Board Size: 94 * 65mm / 3.7 * 2.56in
Analog Board Size: 65 * 47mm / 2.56 * 1.85in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in
Package Weight: 179g / 6.33oz

Package List:
1 * Digital Oscilloscope
1 * Probe
1 * DIY Case
3 * User Manual(English)

La acest osciloscop se poate vinde separat alimentator ( intrebati de stoc ) la pretul de 29 lei bucata !

Livrarea se poate face doar in 2 feluri:

1) personal la Metrou Nicolae Grigorescu in Bucuresti
2) cu livrare prin posta romana cu plata in avans in cont bancar a contravalorii produs + 15lei ( taxe postale de expediere posta romana )….dupa confirmarea platii va voi trimite nr AWB de urmarire colet pe posta romana !

Multumesc de intelegere !
