OSCILOSCOP PORTABIL/MULTIMETRU/ANALIZOR LOGIC/FRECVENTMETRU

OSCILOSCOP PORTABIL/MULTIMETRU/ANALIZOR LOGIC/FRECVENTMETRU TENMA 20 MHz

The Easy Scope™ delivers top performance combining a 20MHz Digital Storage Oscilloscope, True RMS Autoranging DMM, 20MHz Frequency Counter and Logic Analyzer. Features:

Large backlit graphic LCD display

320 X 240 pixel

RS-232 interface Oscilloscope:

Dual channel

Dual trace

Cursor measurements of DV, DT, D1/T

 Operating modes: CH-I, CH-2, DUAL, ADD, SUB, X-Y

Input coupling: ACIDC/GND

Sweep modes: AUTO, NORM, SINGLE

Trigger sources: CHI, CH2

20MS/sec sample rate

Auto set up

Save/load Logic analyzer:

Eight channel

20MS/sec Digital multimeter:

3 0/4 digit, 3999 count display

Measures AC/DC voltage and current and resistance

MIN/MAX/REL

dBM

Diode test

Continuity beeper Frequency counter:

20MHz range

5 digit resolution

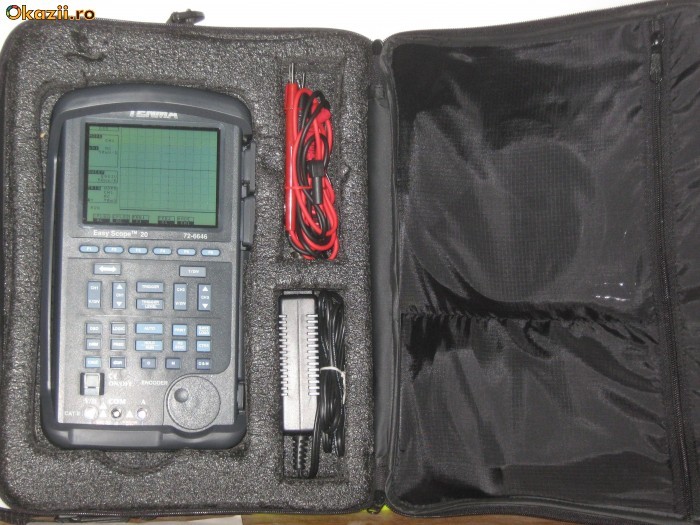

Auto/manual ranging Includes: Holster, carrying case, test leads, two scope probes, rechargeable battery, AC power adaptor and owners manual

Specifications

DSO bandwidth Range DC-20MHz Max Resolution Accuracy Vertical sensitivity 5mV/div-2V/div

Input impedance 1OMohm

Rise time

Horizontal sweep 50nsec/div-2secldiv

DC voltage          400mV-l000V        100) lV ±0.3%

AC voltage          400mV-750V         100) lV  ±3.0%

DC/AC current    400uA-400mA       DC: ±1.5%

AC: ±3.0%

Resistance            400ohm-40Mohrn    0.1ohm

Frequency            5Hz-20MHz 0.0001Hz

 Mai multe amanunte: http://www.newark.com/pdfs/datasheets/Temna/72-6646.pdf

 Se livreaza cu acumulator,alimentator, cablu pentru interfata seriala PC,dischete cu soft ,adaptor pentru analizorul logic,2 sonde,cabluri de masura tip multimetru.

Va rog sa priviti si celelalte aparate pe care le am la licitatie.

Pentru usurinta urmati link-ul: http://www.okazii.ro/catalog?user_list=honki55&sort=timp_ramas_desc

Va multumesc pentru atentia acordata.
