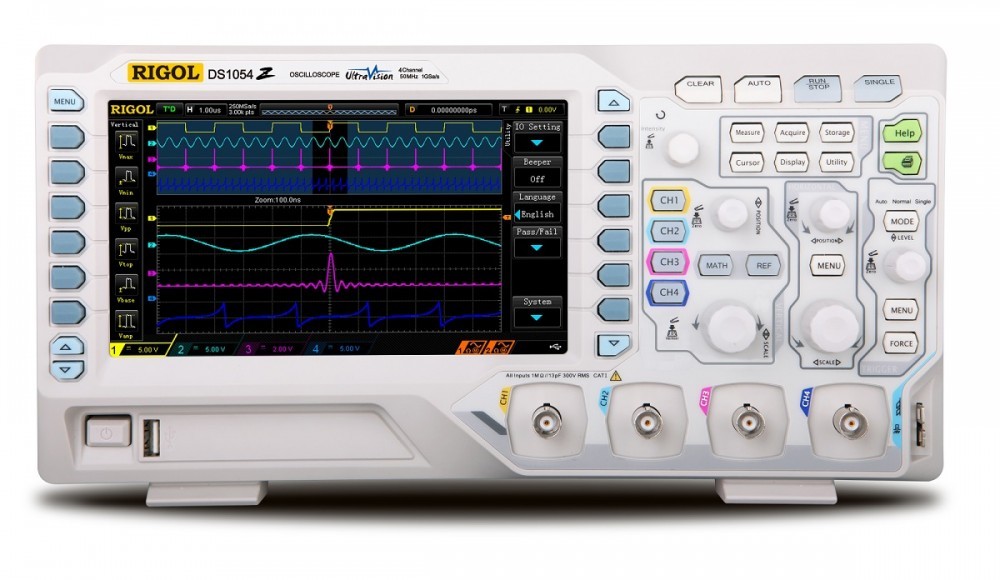

Osciloscop Rigol DS1054Z 4 canale 50MHz NOU!

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Disponibilitate: Indisponibil - Vezi produse similare

Specificatii

Vand Osciloscop digital RIGOL DS1054Z, 4 canale 50MHz nou, sigilat la cutie, display wide color de 7 inch, rezolutie 800x480 !!!

Osciloscopul se poate conecta la PC, laptop, netbook, etc.. prin port USB. Vine cu sonde si software inclus(vezi mai jos accesorii incluse)

Specificatii tehnice:

    • 50MHz Bandwidth, 4 channels
    • 1G Sa/s Real-time Sample Rate
    • 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
    • Innovative "UltraVision" technology
    • Up to 30,000wfms/s Waveform Capture Rate
    • 7 Inch WVGA (800x480), multiple intensity levels waveform display
  • General Data
    Digital Oscilloscope Rigol DS1054Z
  • Display
    17.8 cm (7") WVGA-Color-LCD
  • Resolution
    800 × 480 Pixel
  • Interface
    • USB-host for i.e. USB sticks
    • USB-Device for a PC connection or USB Pict-Bridge printerinterface
    • LAN for network connectivity (LXI compilant)
    • GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module
    • Trigger- and Calibrationoutput
  • Size (W × H × D)
    31.3 cm × 16.0 cm × 12.2 cm
    12.3" × 6.29" × 4,80"
  • Weight
    3.2 kg
    7.05 lbs
  • Supported operation systems
    Windows XP (32Bit + 64Bit)
    Windows Vista (32Bit + 64Bit)
    Windows 7 (32Bit + 64Bit)
  • Oscilloscope Functions
    Digital Oscilloscope Rigol DS1054Z
  • Channels
    4
  • Real-time sample rate
    1 GSa/s realtime (1 Channel)
    500 MSa/s realtime (2 Channels)
    250 MSa/s realtime (3/4 Channels)
  • Bandwidth
    50 MHz
  • Sampling Modus
    Normal, average, peak detect
  • Mathematics
    userdefined, FFT (Fast Fourier Transform)
  • FFT windows
    Rectangle, Hanning, Hamming, Blackman
  • Signal Bus Decoding
    RS232/UART (option), I²C (option), SPI (option)
  • Signal
    Digital Oscilloscope Rigol DS1054Z
  • Input
    DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms
  • Real-time sample rate
    up to 1 GSa/s realtime
  • Time base
    5 ns/div bis 50 s/div
  • Memory
    max. 12M Mpts. (1 Channel)
    max. 24M Mpts. (1 Channel) with memory option MEM-DS1000Z
    max. 6M Mpts. (2 Channels)
    max. 12M Mpts. (2 Channels) with memory option MEM-DS1000Z
    max. 3M Mpts. (3/4 Channels)
    max. 6M Mpts. (3/4 Channels) with memory option MEM-DS1000Z
  • Vertical
    Digital Oscilloscope Rigol DS1054Z
  • Analog digital converter (A/D)
    12 Bit at ≥ 5 µs/div
    8 Bit at ≤ 2 µs/div
  • Sensitivity range (V/div)
    1 mV/div to 10 V/div
  • Offset range
    1 mV/div to 10 V/div
  • Trigger
    Digital Oscilloscope Rigol DS1054Z
  • Trigger
    Channel, Ext
  • Signal system and line/field frequency (Video triggering mode)
    PAL, NTSC, SECAM
    480P, 576P HDTV standards
  • Triggerfunctions
    Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay
  • Measurement
    Digital Oscilloscope Rigol DS1054Z
  • Cursor measurement
    Manual, Track and Auto Measure modes
  • Auto measurement
    Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall), Phase1-2 (rise), Phase1-2 (fall)

Accesorii incluse:

  • 4 sonde pasive 150 MHz, 10x/1x cu accesorii
  • Cablu USB
  • Manual de utilizare in Engleza
  • Software conectare la PC
  • Certificat de calibrare

Pentru Bucuresti se poate face orice proba la livrare

Livrez in toata tara, din stoc sau la comanda.

Pentru detalii tehnice, stoc, livrare, factura, etc... intrebati













Modalitati de livrare si plata

LIVRARE

In Bucuresti

  • - Predare personala in max. 24 de ore

PLATA

  • - La predare
  • - Ramburs

Politica de retur

  • - Produsul nu se poate returna.
