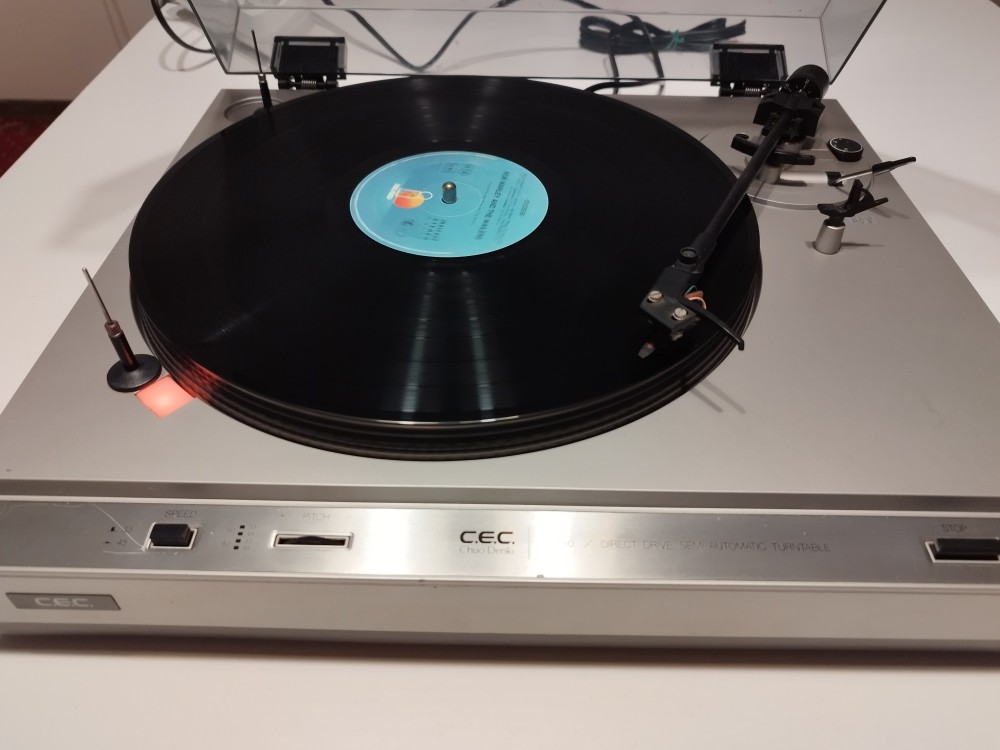

Pick-up CEC (CHUO DENKI) model ST130 - Direct Drive/Vintage/Japan/Impecabil

 Pick-up Direct Drive Automatic marca CEC - CHUO DENKI model STI30, adus recent din GERMANIA .ARATA  si FUNCTIONEAZA IMPECABIL. Este Made in JAPAN si are totul original (neumblat prin in el).Doza este Originala .Auditia este excelenta .Este un model deosebit si robust.

SPECIFICATIONS Turntable Motor: 20-pole, 30-slott, 3-phase brushless type DC servo controlled direct drive motor Speeds: 33⅓ and 45 r.p.m. Speed Calibration: Pitch control ±3% Wow & Flutter: 0,055% (WRMS), ±0,085% (DIN 45507) Rumble:  Unweighted : 38 dB (DIN 45539A) Weighted : 65 dB (DIN 45539B) Turntable platter: 308 mm aluminium alloy die-cast with strobe outside rim Tonearm: Straight-line tubular, static balance type with removable headshell and antiskating device Effective lenght: 222 mm Overhang: 16,8 mm Adjustable tracking force: 0 - 2,5 g with direct readout weight Usable cartridge weight: 4 - 6,5 g Cartridge (optional): Moving Magnet type, model MM3 with 0,6 mil diamond stylus Frequency response: 20 -20,000 Hz Output voltage: 3 mV ±3 dB at 1 kHz 3,54 cm/sec Channel balance: Within 2 dB at 1 kHz Channel separation: More than 18 dB at 1 kHz Load resistance: 47 Kohm Weight: 4,6 g Optimum stylus force: 1,8 g General Automatic functions: Automatic return and shutoff Power source: 120V 60 Hz for North America,220 V 50 Hz for Europe Power consumption: 6 watts Dimensions: 420 x 121 x 365 mm (W x H x D) Weight: 4,5 kg (nett)

Direct-Drive Automatic Turntable ST130 Turntable rotational acuracy achieved in the ST 130 is attributed to the 20-pole 30-slot direct drive motor. Rumble has been almost eliminated. Wow and fluter have also been greatly reduced. The body designs is very compact with front operation. Direct-Dive Motor The high performance DD motor has been manufactured with precision and accuracy to provide unswerving rotational accuracy. The DD method provides motor-platter marriages for perfection in drive. Acoustic Feedback Reduction Acoustic feedback is almost eliminated with the original independent suspension design. A design based on vibreation damping cushions and balanced steel springs isolates the cabinet assembly from outside vibration influences.

 Oil-Damped Cueing When the needle is placed on the record, an original iol damping mechanism makes the contact gently. No more damage to your records at cueing time. Low Mass Straight Tonearm A low mass straight tonearm with resonant frequency matching assures accurate tracking and gentle care for your delicate records. Auto Return and Auto Shutoff The tonearm is also automatically returned to rest and power turned off at the end of play.This feature frees you to enjoy play without worrying about the end of the rcord. Pitch Control A pitch control is incorporated to permit adjustments for the sensitive ear. Now you can play or sing along with your favorite recorded pieces without the noticeable difference in pitch.
