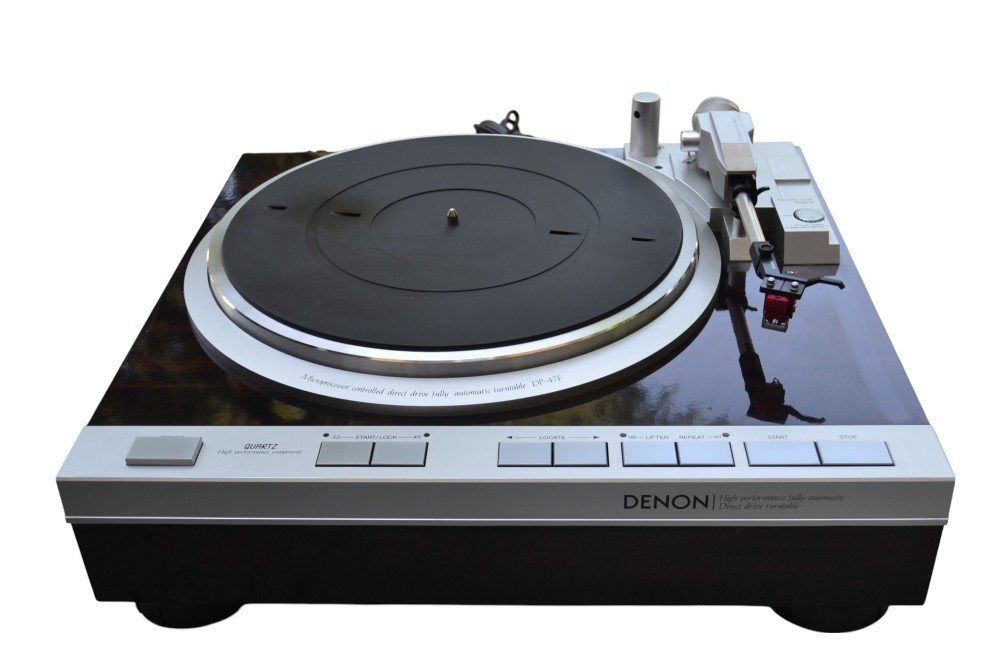

Pick up Denon DP 47 F

Pick up Denon DP 47 F:  MADE in Japan, direct drive, cacasa lemn mahon, capac protectie, full automatic, speed 33/45, doza si ac originale DL 110, electronic servo tonearm, stylus force, pozze reale.

General

• Manufacturer: Denon
• Model: DP-47 F
• Type: Turntable
• Years of manufacture: 1985 - 1999
• Made in: Japan
• Color: Silver / Black, Rosewood
• Power consumption: 8 W
• Dimensions: 434 x 179 x 410 mm (WxHxD))
• Weight: 8.5 kg
• Original price approx.: 900 DM

Connections Connecting cable and plug: Cinch (capacity 80pF )

Technical data

• Drive: Servo controlled direct drive
• Speed: 33 1/3 / 45
• Speed deviation : < 0,002% * Speed fine adjustment : No
• Speed fine adjustment : No
• Synchronous speed variation: < 0,010%wrms
• Rumble sound distance: 78 db (DIN B)
• Turntable : Die-cast aluminium, 310 mm
• Tonearm
  • Eff. Length: 220 mm
  • Design: straight, dynamically balanced
  • Needle overhang: 16mm adjustable
  • Tangential tracking error angle: < 3°.
  • Adjustable support weight: 0 - 3 g
  • System carrier: PCL-40
• Scanning system
  • Drive (needle no.): MC (DL-160)
  • Output voltage: 1.6 mV

Frequency range: 20 Hz - 50 kHz

• • Recommended contact weight: 16 ± 3mN
• Anti-skating device: Ground terminal
• Operating mode: fully automatic
