Pick up Dual 1019 (Grundig)

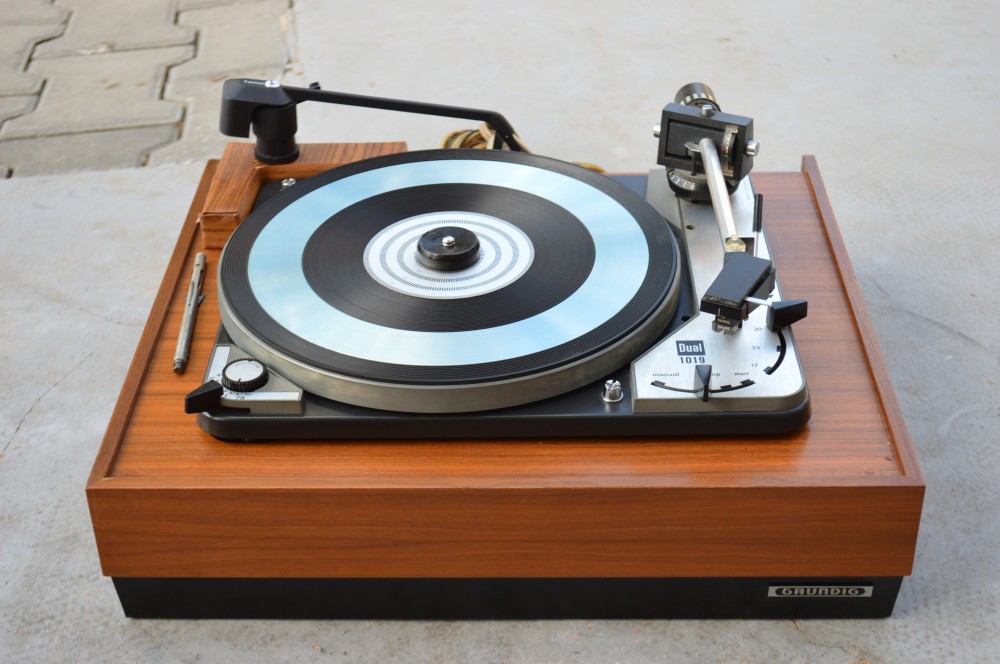

Pick up Dual CS 1019: doza si ac shure T 944MG, speed 16/33/45/78, pitch control, size 17/25/30, cueing, belt drive, made in Germany, capac de protectie, carcasa lemn, poze reale.

The basic specs are:

Drive type: idler drive
Platter: 3.4kg/7.5lbs
Wow and Flutter: +/- 0.1%
Rumble: >59dB
Tonearm: extremely low mass (Dual’s branding)
Cartridges: 1/2″ cartridges weighing 1-16 grams with tracking force of 0-5 grams.

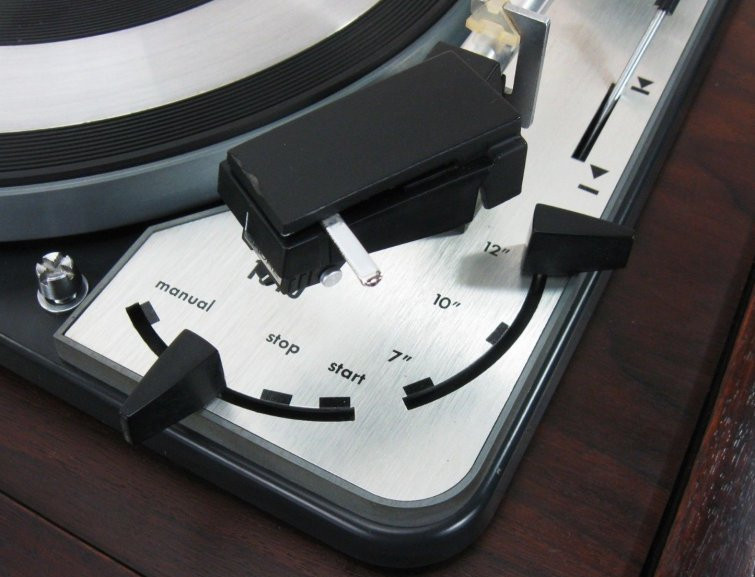

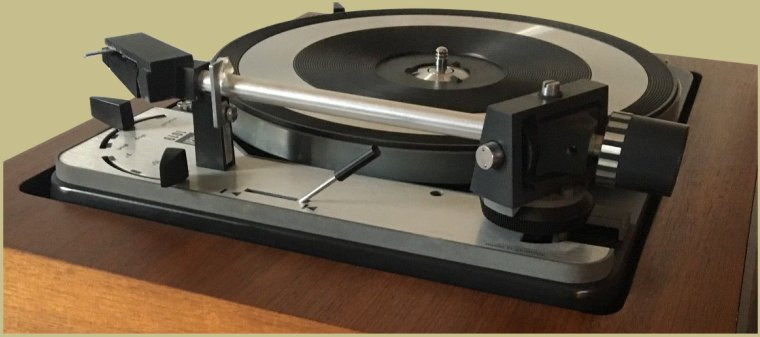

The Dual 1019 has direct dial continuously variable anti-skating compensation, cue and pitch control and elastically damped counterbalance with rapid and fine adjust. It incorporates a friction free dynamically balanced tonearm. The arm tube is thick and rigid and can track as low as 1/2 gram.

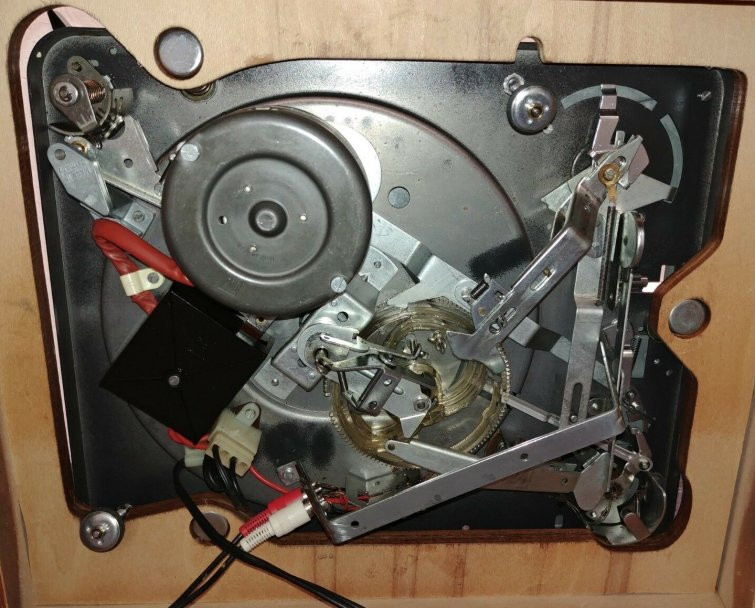

The idler system is basically just an idler wheel under the platter. When the motor starts the idler is pushed into contact with the inner rim of the platter causing it to turn via friction. Obviously a supple idler wheel is important in order to minimize possible rumble.

With the Dual 10xx series, hardened grease is a common problem. This can make the tonearm difficult to move or the mechanics underneath seize up. A complete tear down, cleaning and re-lubrication can solve the problem. Just be careful not to run the table when it is seized up or you can damage parts.
