Pick up Dual HS 130/1224 cu amplificare 4 boxe

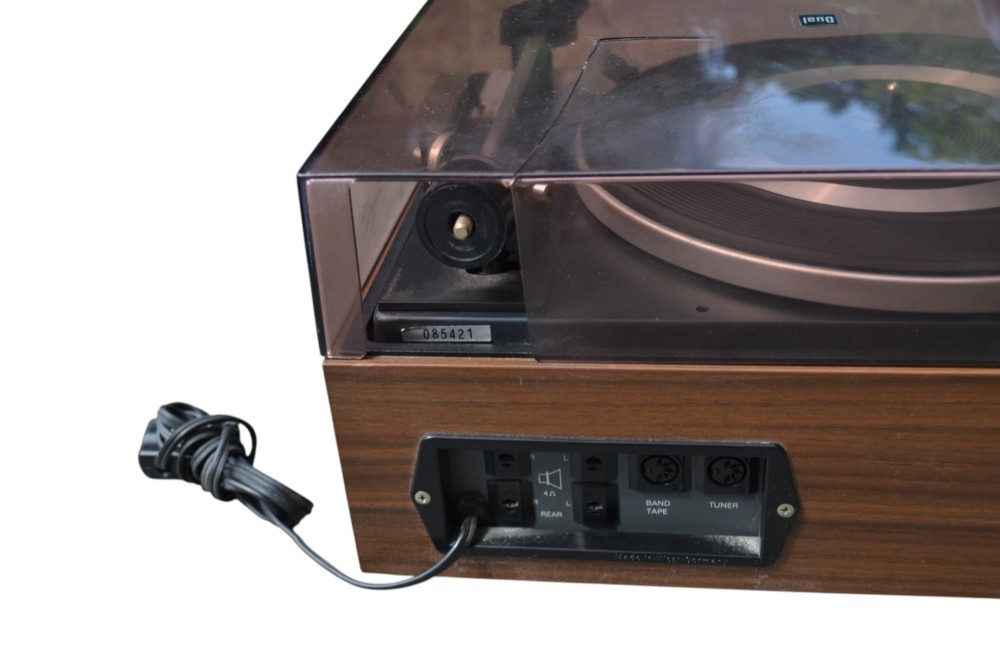

Pick up Dual HS 130/1224 cu amplificare 4 boxe:  impedanta 4-16 ohmi, 3 intrari, reglaje bass/treble, volume, iesire casti, pick up-ul 1224 este full automtic, pitch control, speed 33/45, cueing, antiskating, poze reale, made in West Germany.

Turntable                 Dual 1224 automatic turntable

Pick-up cartridge     Dual CDS 650

Output power  measured at 4 Ohms, harmonc distortion < 1 % Music power      2x6 Watts

Inputs     Tuner      400 mV at 470 kOhm

                Tape       400 mV at 470 kOhm

Frequency Response   measured with tone controls in their mechanical centers      20 Hz - 20 kHz ± 3 dB

Tone controls         Bass        + 12. - 12 dB at 100 Hz

                               Treble     + 12. - 12 dB at   10 kHz

Balance control     Control range approx. 40 dB

Volume control     with loudness ON/OFF switch

Outputs                4 speaker jacks DIN 41 529

                            1 coaxial jack 1/4" headphone
