Pick up Luxman PD 264

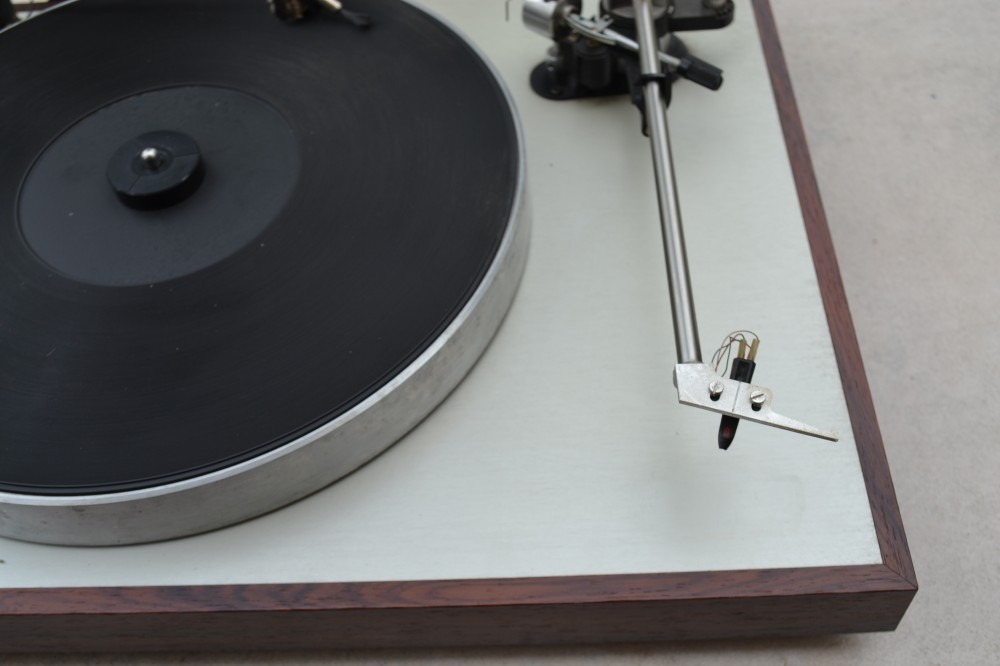

Pick up Luxman PD 264:  Direct Drive, Pitch Control, speed 33/45, Cueing, Antiskating, capac de protectie, doza si ac originale Ortofon, poze reale.

Luxman PD 264

Auto Lift-Up Direct-Drive Player Syste

Description

The PD264 is a disc player using a Brushless DC Servo Motor Direct-Drive system.

Provided is a turntable platter of high inertia with which the large mass of platter weight is distributed around the outer contour, thus realizing excellent Wow & Flutter characteristics and stable rotation.

For the tonearm, a straight type is adopted to eliminate resonance caused by lack of solidity which tends to be found on the tonearm exclusively designed for high-compliance type cartridges.

The root portion of the tonearm is of double-pipe structure to strengthen anti-resonance measures. The knife-edge structure is employed for the pivot receptacle, thus realizing quite stable operation. Further, the cartridge shell is integrated to the tonearm, and the resonance is suppressed down to the minimum.

The most salient feature of the PD264 is the Auto Lift-Up Function. When disc playback is finished, the tonearm is automatically lifted up, and rotation of turntable ceases at the same time. This function prevents unnecessary tracing of the cartridge at the end of disc-playback.

LED's are employed for stroboscope light, thus realizing a clear strobo pattern since the power supply is waveform rectified. Therefore, fine and accurate adjustment of rotation can be done much more easily.

Specifications

Type: auto-lift up record player

Drive method: direct drive

Motor: DC servo brushless

Platter: 1.8kg, 300mm aluminium die-cast

Speeds: 33 and 45rpm

Signal to noise ratio: 60dB

Wow and flutter: 0.035% wrms

Tonearm: static balance type

Effective length: 240mm

Overhang: 15mm

Cartridge weight range: 4 to 11g

Dimensions: 438 x 125 x 365mm

Weight: 8kg
